| Prod Model: |
DXP500WCH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
500W |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Modified Sine Wave |
| Housing Material: |
Aluminum Alloy |
| High Volt Cut Off: |
>15DC |
| AMP Of Battery Charger: |
5A |
| UPS Function: |
Yes |
| Overload / Lowload Protection: |
Yes |
| Phase: |
Single |
| Brand: |
Doxin |
Product Description

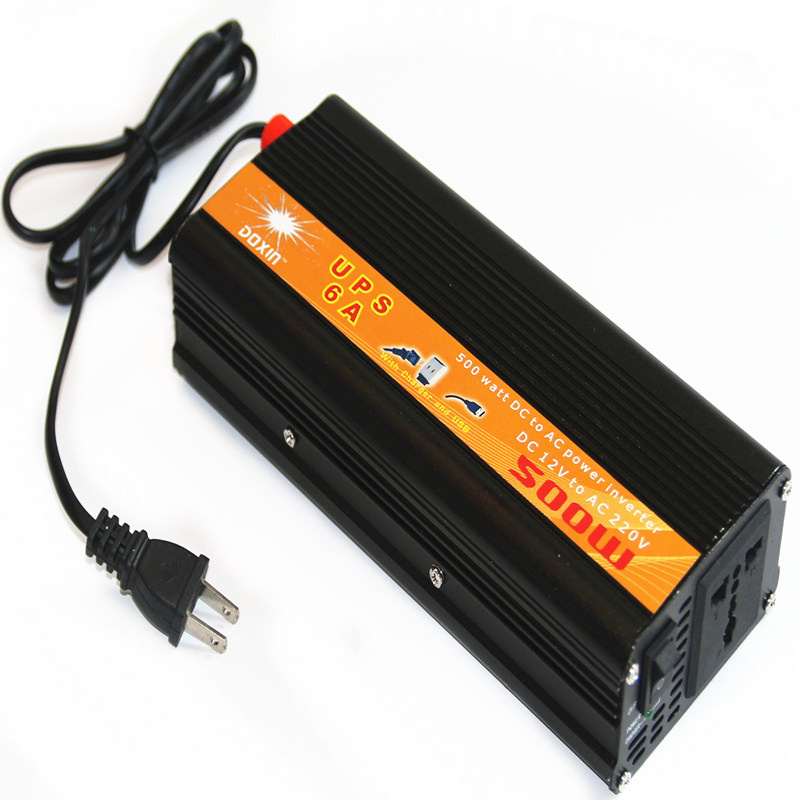

DOXIN 12V to 220V DC to AC 500W Power Inverter with 5A Charger (DXP500WCH)
Built-in three-stage battery charger and automatic transfer between inverter power and imcoming AC utility power
This is not only a power inverter, it is a 12V battery charger and an automatic UPS
UPS =(Uninterruptible Power System )
When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.
Product Features
Ultra-Fast Transfer Relay: Reduce transfer time between bypass mode and inverter mode, reduce possiblity of voltage drop.
L. I. T: Low interference technology
Universal protection circuit: Over load, long life for battery, earth fault, short circuit, over temperature, soft start
Turbo cooling: Keep the inverter surface cool and higher efficiency
· High Efficiet: Wide-range high efficient circuit maximize the operating time and more energy saving
· U. P. S: Uninterrupitable Power Source
Product Functions
Low voltage alarm & Shutdown
Over voltage protection
Overload protection
Over temperature protection
Short circuit protection
Soft start
Auto. Reset after being in protected
Earth leakage protection
Notice Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Solar charge controller
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
For more info you need, pls contact us anytime!
Call us: +86 18028085970
| Item No. | DX500WUPS | |
| * Max continuous power: | 500W |
| * Peak Load Power Rate: | 1000W |
| * NO load current draw: | < 0.2A |
| * Input DC voltage Range: | DC10-15V |
| * Output Voltage Range: | AC220+/-5% |
| * Output Frequency Range: | 50+/-2Hz |
| * Max Outer Temperature: | < 65° C |
| * Max Power Efficiency: | > 90% |
| * High Voltage Cut Off Level: | > DC15V |
| * Low Voltage Alarm Level: | DC10.0-11.0V |
| * Low Voltage Cut Off Level: | < DC10V |
| * Overload and Short-circuit Protection | YES |
| * Input Voltage: | DC12V |
| * Output waveform: | Modified sine wave |
| * AC input Voltage: | 220V |
| * AC Frequency: | 50HZ± 2Hz |
| * AC input voltage range: | 170-250V |
| * AC under voltage protection: | ≤ 150V |
| * AC Over voltage protection: | ≥ 250V |
| * Charger current: | Max 10A |
| * DC to AC inverting household electricity supply time: ≤ 15ms |
| * household electricity supply inverting AC to DC time: ≤ 15ms |
| * Built-in Cooling Fan | |
| * Product Size: | 255*95*55mm |
| * Packing size(12pcs/ctn) | 61*37.5*26cm |
| * N. W: | 845.2g |
| * G. W: | 1050g |
