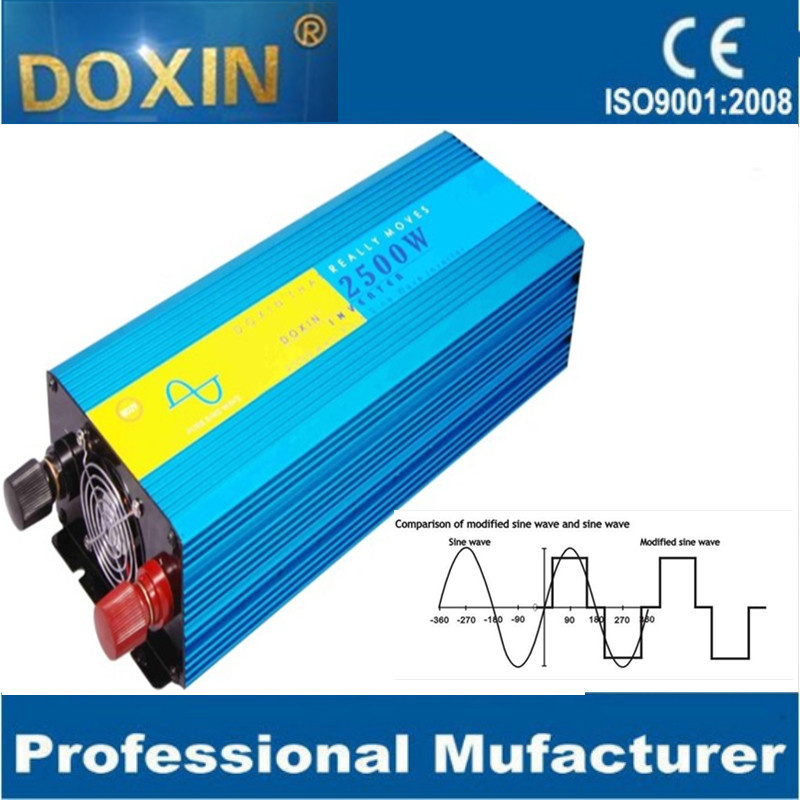

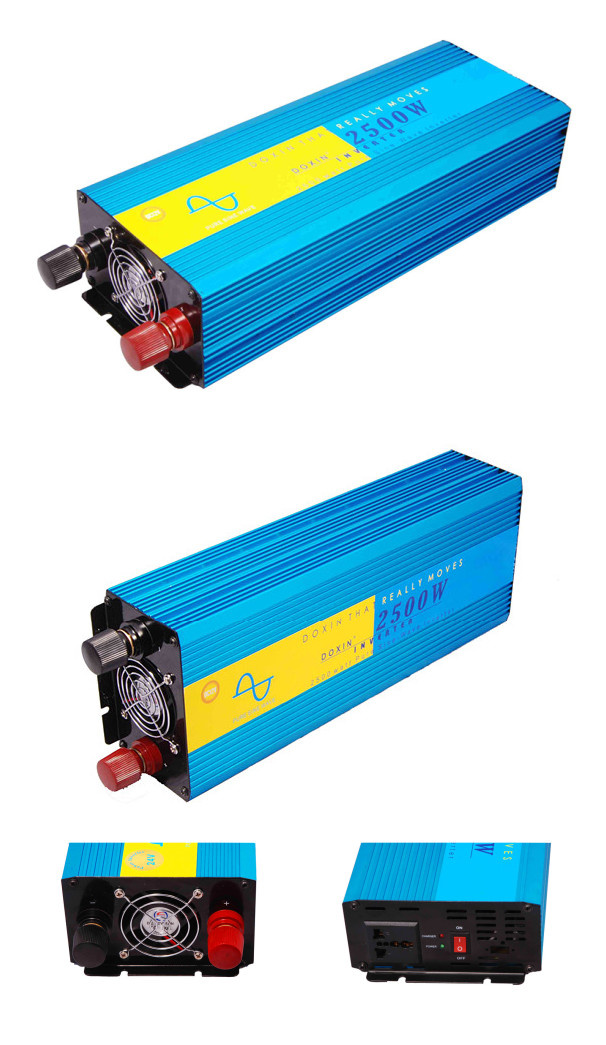

Doxin High Efficiency DC to AC 2500W Pure Sine Wave Power Inverter
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
DXP2525 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Waveform: |
Pure Sine Wave |
| Rated Power: |
2500W |
| Surger Power: |
5000W |
| Output Frequency: |
50/60Hz |
| High Volt Cut Off: |
>15DC |
| Housing Material: |
Aluminum Alloy |
| Overload/Lowload Protection: |
Yes |
| Overvoltage/Lowvoltage: |
Yes |
| Phase: |
Single |
Product Description
2500W Pure Sine Wave Inverter 12V/24V to 220V 230V 240V
1. Basic Info:
1) Compact and light weight
2) Pure sine wave output
3) High efficiency
4) Voltage overload protection
5) High output current surge
6) Low voltage alarm / shut down
7) Input and output fully isolation
8) Low power consumption
2. Feature:
1) It is featured as high reliability, and low failure rate, with the advanced double CPU SCM intelligent controlling technology.
2) Pure sine wave output, strong ability of driving load, wide range of application
3) Perfect protection functions (Overload protection, inside overheat protection, input low-voltage protection, input overvoltage protection), enhanced the reliability of the product.
4) Small and light: With the technology of CPU centralized control and SMD inside, the product is very small and light.
5) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
6) Low noise but high efficiency while working
3. Application:
1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker, refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6) Power tool series: Electric saw, drilling machine, punching machines, air compressors, and etc.
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/ 220v electricalappliances.
4. Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
5. Product category
Car inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
6. Note:
Don't use them in the high temperature
Keep the battery and charge for them
Don't overload the voltage
Don't use when the low voltage alarm is beginningFAQ1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac. High
2. How many kinds of output wave form for inverters?
Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
3. How do we equip an appropriate inverter for battery?
Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W. 12V*50A=600W. So we can choose a 600W power inverter according this theoretical value.
4. How long can I operate my inverter?
The runtime (i.e., amount of time that the inverter will power connected electronics) depends on the amount of battery power available and the load that it is supporting. In general, as you increase the load (e.g., plug in more equipment) your runtime will decrease. However, you can attach more batteries to extend the runtime. There is no limit to the number of batteries that can be connected.| Model | DXP2500 |
| Input | DC Voltage | | 12V or 24V or 48V or 110V |
|
| VoltageRange | 10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC |
| No Load Current Draw | < 0.5 |
| Efficiency | > 90% |
| DC Connector | Cables With Clips or Car Adaptor |
| Output | AC Voltage | 100/110/120VAC or 220/230/240 VAC |
| Continuous Power | 2500W |
| Surge Power | 5000W |
| Waveform | Pure Sine Wave |
| Frequency | 50Hz or 60Hz |
| AC Regulation | 3% |
| Protection | Low Voltage Alarm | 10DC± 0.5V or 20.5DC± 1V or 44VDC± 1V or 100VDC± 1V |
| Low Voltage Shut Down | 9.5DC± 0.5V or 19.5DC± 1V or 42VDC± 1V or 96VDC± 5V |
| Over Load | Shut Off Output |
| Over Voltage Shut Down | 15.5V or 30.5V or 61.2V or 120V |
| Over Thermal | Shut Off Output Automatically |
| Environment | Working Temperature | Between -10° C and +50° C |
| Working Humidity | 20%--90%RH non-condensing |
| Storage Temperature | Between -30° C and +70° C |
| Package | Machine Size(mm) | 445X155X95MM |
| Packing Size(mm) | 49*31*39CM |
| Net Weight(kg) | 4.8 |
| Gross Weight(kg) | 5.5 |
| Packing Mode | Carton |
| Other | Start | Soft Start |
| Cooling Ways | Cooling Fan |
| |
Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.
We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.
Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.
Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.
Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
