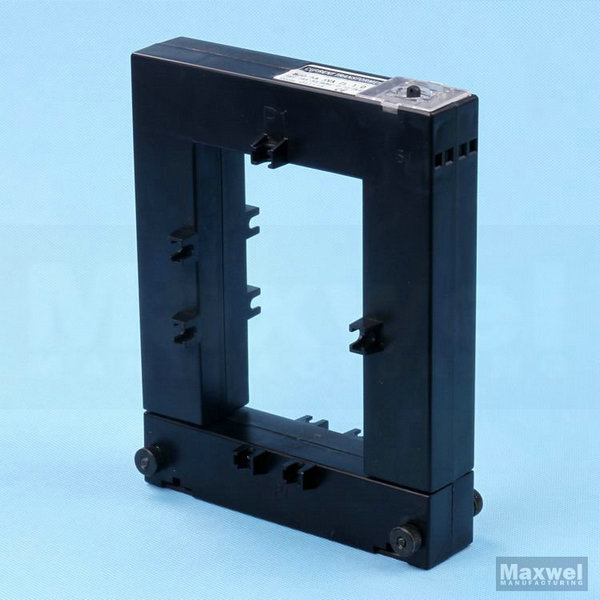

Dp Series Low Voltage Toroidal Current Transformer

Prod Model:	MS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Ms1-58
Class:	0.5/1.0
Colour:	Black
Capacity:	250A-1000A
Standard Certificate:	IEC44-1/Bs7626/VDE0414/Vl94
Type:	Current Transformer
Phase:	Three
Application:	Electronic

Product Description

MS1 current transformer series:

1. The MS1 series of current transfomer are convenient for mounting in many ways.
2. The most current transformer need the special mounting and the MS1 series used the mounting of DIN typing without a lot of time.
3. The protective cover for the terminal block used the switching device with safety and quick

MS1 tecnicial specifications:
Primary current: 5A-3000A
Secondary current: 5A/1A
Standard approval: IEC44-1/BS7626/VDE0414
Maximum voltage: 0.72/3kv
Frequency: 50/60Hz
Rated load: 2.5VA/5VA/10VA/15VA
Class: 0.5/1.0
Short-time thermal current: Ith=60*Ih
Rated security coefficient Fs<5


Model (DP)	Nominal  current  ratio	Burden  VA
		Class  0.5	Class  1
MS1-58	250/5	1.5	2
MS1-58	300/5	1.5	3
MS1-58	400/5	1.5	3
MS1-58	500/5	2.5	5
MS1-58	600/5	2.5	5
MS1-58	750/5	2.5	6
MS1-58	800/5	2.5	7.5
MS1-58	1000/5	5	10
