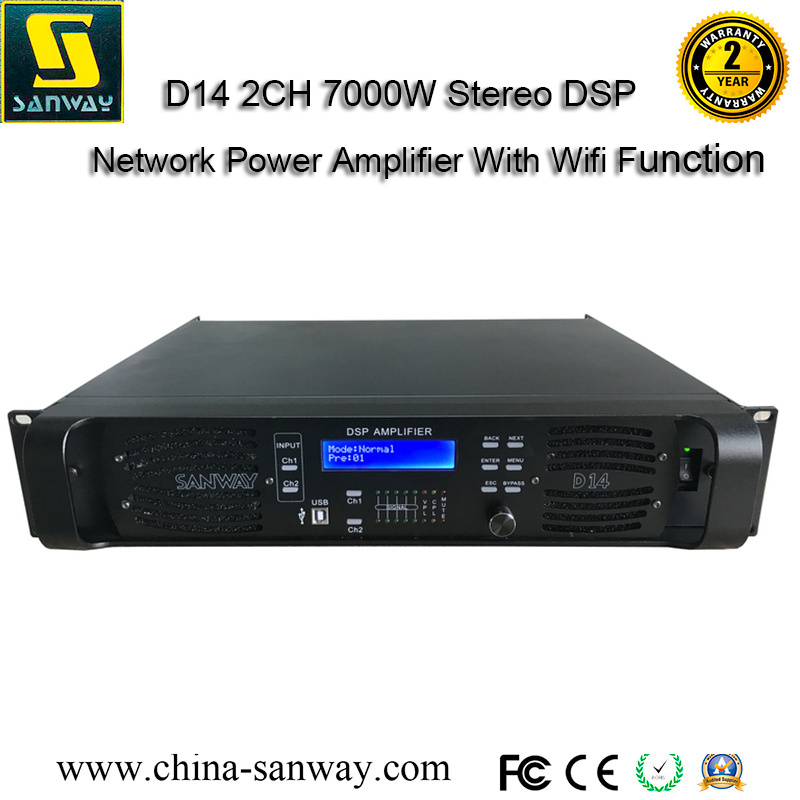

Dp14 Digital Professional Amplifier, DSP Audio Power Amplifier with WiFi
| Price: |
US $ 300-800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
DP14 |
| DSP-14K: |
DSP-14K DSP Amplifier with Ethern |
| Warranty: |
2 Years |
| (DSP) Frequency Response: |
±0.25dB, 20Hz --- 20kHz |
| Heatsink: |
Pure Copper |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Sound Channel: |
2.1 |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Output Number: |
2 |
| Voltage: |
220V or 110V |
Product Description
Description

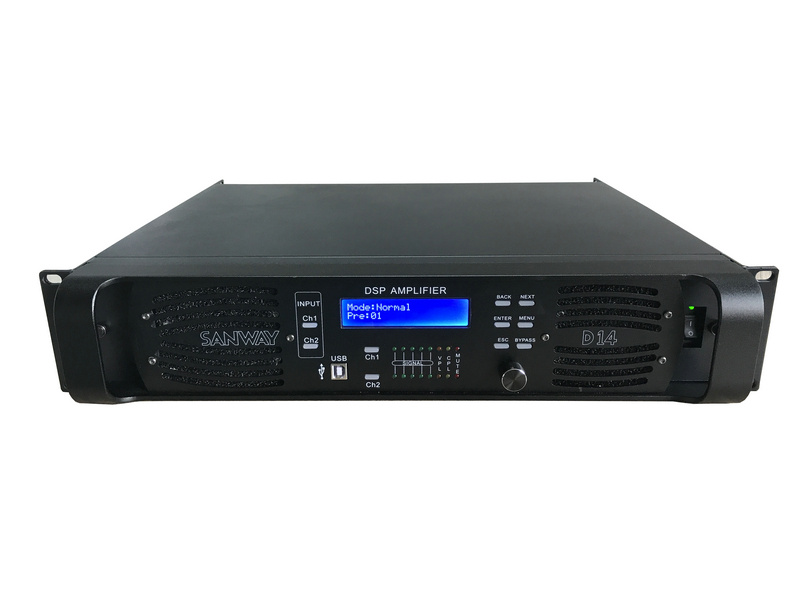

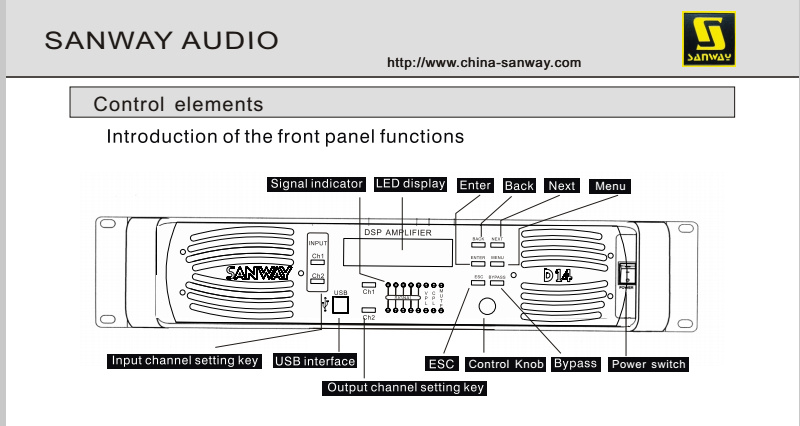

D14 is integrated front panel with channel select and volum buttions, input and output LED metering, intuitive navigation buttons, LED power button and indicator. For convenient using, it has 20 factory preset configurations that can be modified and stored in the user presets. With Powerful intrinstic correction processing maximizes the sonic performance of Sanway loudspeaker.
Its two channels of full function onboard loudspeaker DSP with crossover and parametric EQ filters, limiting and aligenment.
delay eliminate the need for outboard loudspeaker processors. This Flexible Amplifier drives most any loudspeaker system or configuration by distributing total amplifier power across one, or two channels.
Features
1. Consists of one FP14000 and one 2in&2out digital processor.
2. DSP function: Mute, Polarity, Gain, EQ, Xover, Limiter.

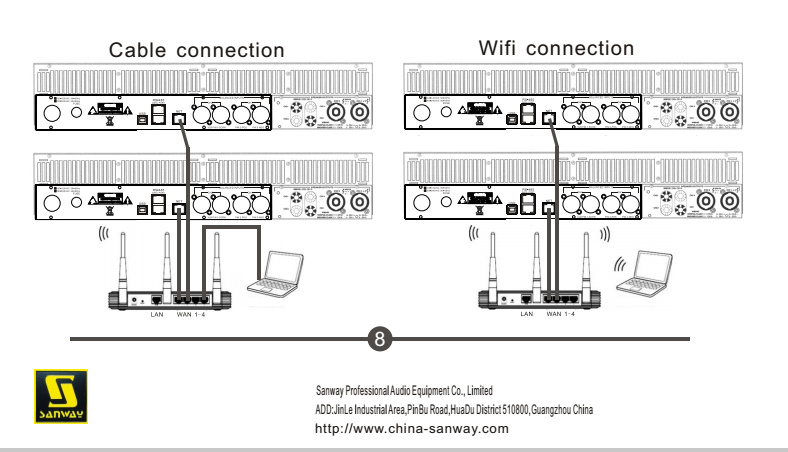

3. Ethernet function (wifi):control many pieces DSP-14K amplifiers in one computer by Wifi.
4. Crossover filter: Each output channel can be independently set as PF and HPF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley.
Specification
| |
| MODEL: | | D14 | | |
| Input: | | 2CH | | |
| Output: | | 2CH | | |
| PC Com Port: | 1 USB Com Port on front panel, 1 USB Com Port,2 RS485 Com Port on back panel (RJ-45) |
| Processor: | 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter |
| Dynamic range: | >110dB |
| Frequency Response: | ±0.25dB, 20Hz --- 20KHz |
| Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
| Signal to noise ratio: | >110dB |
| crossover filter: | Each output channel can be independently set as LPF and HPF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 dB/octave |
| EQ: | Bandwidth:0.2 to 36 oct, Frequency:20Hz to 20KHz, Gain: -24dB to +12dB, step:0.2 dB |
| Delay: | 0ms to 115ms |
| Display: | 2 x 20 LCD |
| Store Settings: | 20 user program dynamic storage |
| WIFI function ( Ethernet) | Yes | Yes | Yes |
| DSP AMPLIFIER |
| Model | D14 |
| Output Power | |
| 8Ω Stereo Power | 2x2350W |
| 4Ω Stereo Power | 2x4400W |
| 2Ω Stereo Power | 2x7000W |
| 8Ω Bridged Monon Power | 1x8700W |
| 4Ω Bridged Monon Power | 1x14000W |
| Frequenty Response | 20Hz-20kHz ±0.5dB |
| THD+N(Rated power,4Ω/KHz)% | 0.10% |
| Signal Noise Ration(dB) | 110dB |
| Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |
| Output Connectors | Speakon Connectors(NEUTRIK) |
| Power Requirement | 100-120V-50-60Hz or 200-240V-50-60Hz |
| WIFI function ( INTERNET) | Yes | Yes | Yes |
| Dimension | |
| Airframe | 483×377×88mm |
| Weight | |
| Weight(net)/(Gross Weight) | 13Kg (Net) / 18Kg (Gross Weight ) |
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.
With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.
We always keep and follow the principle to do business:
The same product, we win by the quality;
The same quality, we win by the price,
The same price, we win by the service.
We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.
Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
