| Prod Model: |
Sanway FP14000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
20-20kHz, 1W with 1kHz |
| Dimension(Wxhxd): |
483X88X396mm |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Element Number: |
Push-Pull Amplifier |
| Voltage: |
110V or 220V |
| Conductive Mode: |
Td |
Product Description
FP14000 2 Channel Professional Switching Power Amplifier
1. 2X2350W@8ohms Big Professional Power Amplifier
2. High Power FP14000 Audio Amplifier, PA Speaker Amplifier
3. Ght Weight Switching Power Amplifier4. Only 13kg Tube Power Amplifiers, Performance for Subwoofers
5. PA Speakers AMPS, Tube Amplifier
Specifications: | FP14000 2CH Professional Power Amplifier, PA Speakers AMPS, Tube Amplifier |
| ITEM | FP14000 |
| Output Power | 20-20kHz, 1W with 1 kHz |
| 8ΩStereo Power(RMS) | 2350WX2 |
| 4ΩStereo Power(RMS) | 4400WX2 |
| 2ΩStereo Power(RMS) | 7000WX2 |
| 8ΩBridged Power(RMS) | 8800W |
| 4ΩBridged Power(RMS) | 14000W |
| Frequency Response(+o/-0.3dB, 1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 Dba |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | Short circuit, DC voltage, turn-on/off transient, current, inrush |
| Operating voltage | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 Kohms |
| Level adjustment (per CH. ) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
| Net weight(kg) | 13 |
| Gross weight(kg) | 18 |
Overview:FP series amplifier is uses new regulator would be get more power technology. It is a small size ,light weight and high efficiency ,high power and high reliability. Both mobile and fixed installation performance are the best choice for you. New designed with the stable performance and high quality.
Gorgeous appearance and full of modern taste, and walking at the forefront of famous brand of entertainment sound equipment.
Features:1. Unprecedented power density, 2 channel power amplifier
2. Reliable sound quality
2. Class TD amplifier
4. Regulated Switch Mode Power Supply

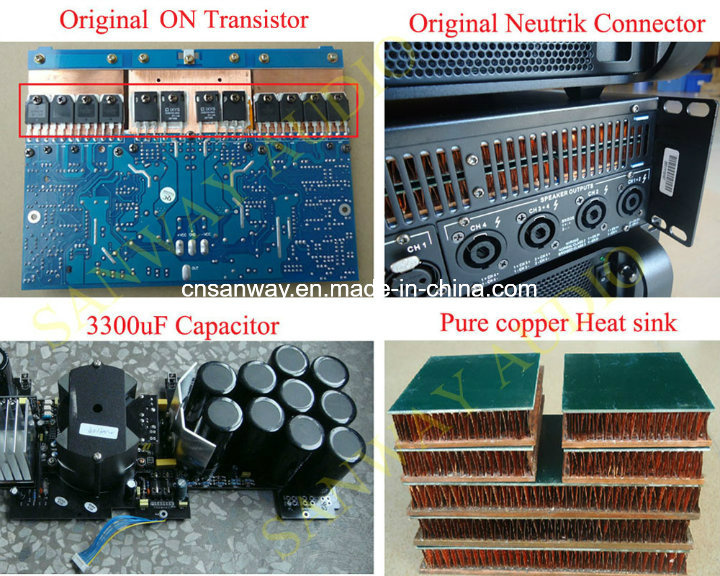

5. Efficient cooling system, 100% pure copper heat sink
6. Adjustable parameters
7. Neutrik input and link connectors
8. Heavy-duty binding posts
9. Comprehensive protection and warning
