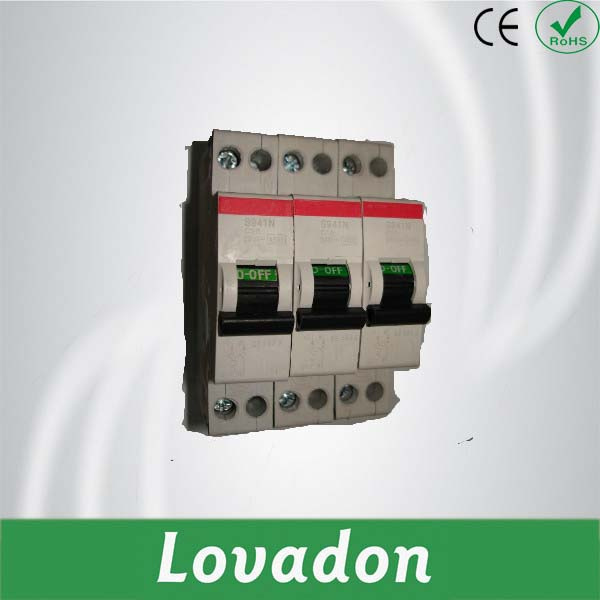

Dpn Series S941n Type Miniature Circuit Breaker

Name: Dpn Series S941n Type Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 786679065
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	US $ 3-3.5/Piece
Min Order:	80/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S941N
Rated Current(in):	6, 10, 16, 20, 25, 32,40,50,63
Rated Voltage:	230/400V
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Poles Number:	3
Certification:	CE
Operation:	DIN Type

Product Description

Technical Data
. Pole No.: 1P+N
. Rated voltage: AC 230V
. Rated current (A): 3, 6, 10, 16, 20, 25, 32
. Tripping curve: C
. Rated short-circuit capacity(Icn): 4500A
. Rated frequency: 50/60Hz
. Energy limiting class: 3
. Rated impulse withstand voltage: 6.2Kv
. Electro-mechanical endurance: 4000
. Connection terminal: Pillar terminal with clamp
. Connection capacity: Rigid cinductor up to 10mm₂
. Fastening torque: 1.2Nm
. Installation:
On symmertical DIN rail 35mm
Panel mounting
Construction and Feature
. Protection against both overload and short circuit
. Integrated with switched phase and neutral pole
. Neutral pole provides no protection against overload and short circuits
. Easy mounting onto 35mm DIN rail

Number of poles	2P,4P
Rated current(In)	6, 10, 16, 20, 25, 32,40,50,63
Tripping curve	B,C,D
Rated frequency	50/60Hz
Rated voltage	230/400V
Mechanical life	10000
Installation temperature	no obvious impact and vibration
Utilization category	A
Rated limiting short-circuit current	3000

Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation
