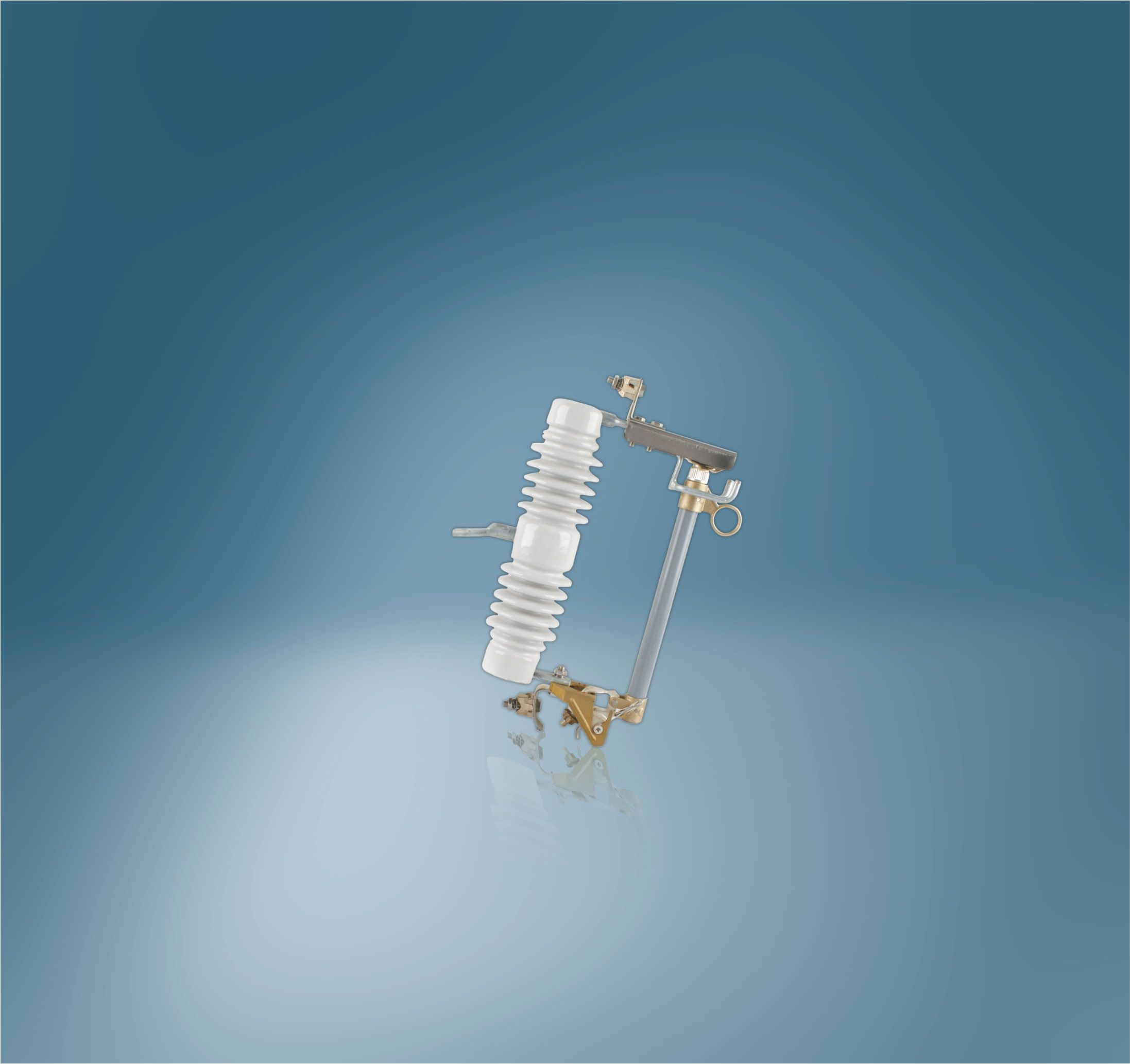

Drop out Fuse (PRW1-24)

Name: Drop out Fuse (PRW1-24)
Brand: all-electronics-online.com
SKU: 702044975
Availability: InStock
Rating: 4.6 (67 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	PRW1-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Breaking Capacity:	High
Usaga:	High Voltage
Type:	Fuse

Product Description

DROP OUT FUSE
Type: PRW1-24
Type Rated Voltage (kV) Rated current (A) Breaking current (A) Impulse voltage (kV) Power frequency withstand voltage(kV) creeoage dustabce(mm) Weight (kg) Dimensions (cm)
PRW1-24 24 100 10000 150 65 540 12 51*35*14
24 200 12000 150 65 540 12 51*35*14

1. Specifications
Type	Rated Voltage (kV)	Rated current (A)	Breaking current (A)	Impulse voltage (kV)	Power frequency withstand voltage(kV)	creeoage dustabce(mm)	Weight (kg)	Dimensions (cm)
PRW1-11	11	100	10000	115	40	250	7.2	38.534.510.5
PRW1-11	11	200	12000	115	40	250	7.2	38.534.510.5
PRW1-15	15	100	10000	125	45	350	10	503611
PRW1-15	15	200	12000	125	45	350	10	503611
PRW1-24	24	100	10000	150	65	540	12	513514
PRW1-24	24	200	12000	150	65	540	12	513514
PRW2-24	24	100	10000	150	65	540	12	513514
PRW2-24	24	200	12000	150	65	540	12	513514
PRW1-33	33	100	10000	170	80	700	15	513814.5
PRW1-33	33	200	12000	170	80	700	15	513814.5
PRW2-33	33	100	10000	170	80	700	15	513814.5
PRW2-33	33	200	12000	170	80	700	15	513814.5
PRW1-36	36	100	10000	170	80	720	16	663814.5
PRW1-36	36	200	12000	170	80	720	16	663814.5
PRW2-364	36	100	10000	170	80	720	16	663814.5
PRW2-364	36	200	12000	170	80	720	16	663814.5

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
