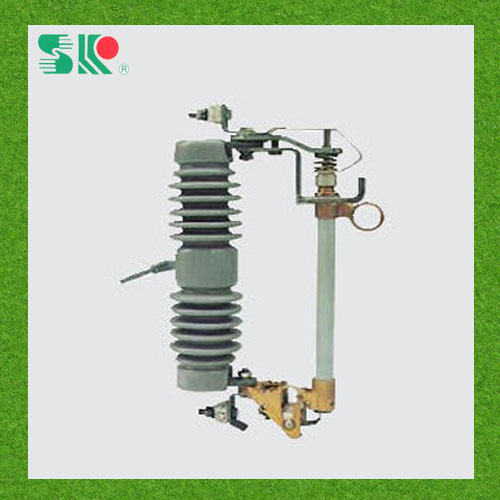

Drop-out Type Fuse Cut out 15kv (RW12)

Prod Model:	RW12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain (Ceramic)
Operation:	Manual Type
Installation:	Open Frame
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-extinguishing Medium:	Air
Function:	OVP(Overvoltage Protection)
Certification:	CE
Type:	Fuse
Breaking Capacity:	High Voltage Circuit Breakers

Product Description

1. Type: Fuse cutout, drop out fuse cutout XM-4

Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. XM series mainly protect transformer or lines from short circuit and over load, and on/off loading current.

2. Specification:

Type: RW12 (XM-4)
Rated voltage(kV): 15
Rated current(A): 100, 200
Breaking current(A): 6300, 12500
Impuse voltage(kV): 125
Power-frequency withstand voltage(kv): 45
Creepage distance(mm): 330
Material: Ceramic
Weight(kg): 8.5(100A), 9(200A)
Dimensions(CM): 49*31*12.5

3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.

4. Appearance and installation dimensions.
