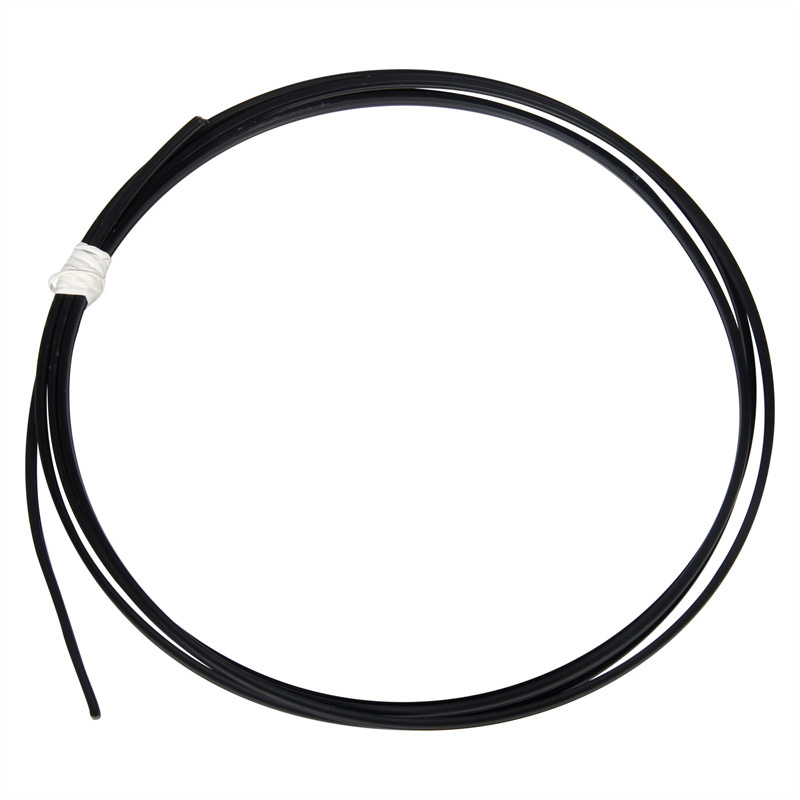

Drop Wire 1 Core Overhead FTTH Optical Fiber Cable with LSZH Sheath

Name: Drop Wire 1 Core Overhead FTTH Optical Fiber Cable with LSZH Sheath
Brand: all-electronics-online.com
SKU: 754375525
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 2/Meter
Trade Terms:	FOB,EXW
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Outer Sheath Material:	PE
Metallic Strengthen Member:	Steel Wire
Filler:	Filling Compound
Single Armour Material:	Corrugated Aluminium Tape
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka,Fujikura or as Your Requiremen
Waterblocking Material:	Water Blocking Tape or Filling Compound
Installation Style:	Duct, Aerial
Loose Tube Material:	PBT with Jerry
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Sheath Material:	PE

Product Description

G657A 1 Core Overhead FTTH Optical Fiber Cable with LSZH Sheath

·Description

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

·Characteristics

        · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
          transmission property;
        · Two parallel FRP strength members ensure good performance of crush resistance to protect the
          fiber;
        · Single steel wire or massagers as the additional strength member ensures good performance of           tensile strength;
        · Simple structure, light weight and high practicability;
        · Novel flute design, easily strip and splice, simplify the installation and maintenance;
        · Low smoke, zero halogen and flame retardant sheath.

·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

·Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(5.0±0.2)	20	60/120	300/1000	15/30
2	(2.0±0.2)×(5.0±0.2)	20	60/120	300/1000	15/30
3	(2.0±0.2)×(5.6±0.2)	21	60/120	300/1000	15/30
4	(2.0±0.2)×(5.6±0.2)	22	60/120	300/1000	15/30

Storage/Operating Temperature : -20ºC to + 60ºC

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
