Drop Wire 1c or 2c FTTH Fiber Optic Cable for Telecommuication Network
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FTTH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Drop Cable |
| Messenger Material: |
Steel Wire |
| Other Messenger Material: |
FRP, Kfrp |
| Jacket Material: |
LSZH |
| Jacket Color: |
Black, White |
| Installation: |
Indoor & Outdoor Aerial Drop Cable |
| Fiber Type: |
G.657A |
| Fiber Color: |
Blue, Orange, Green, Brown |
| Od Of Cable: |
2.0mm*5.0mm |
| Diameter Of Messenger: |
1.0mm |
| Application: |
Drop Cable |
| Type: |
Single-mode Fiber |
| Certification: |
Drop Cable |
| Connection Structure: |
Drop Cable |

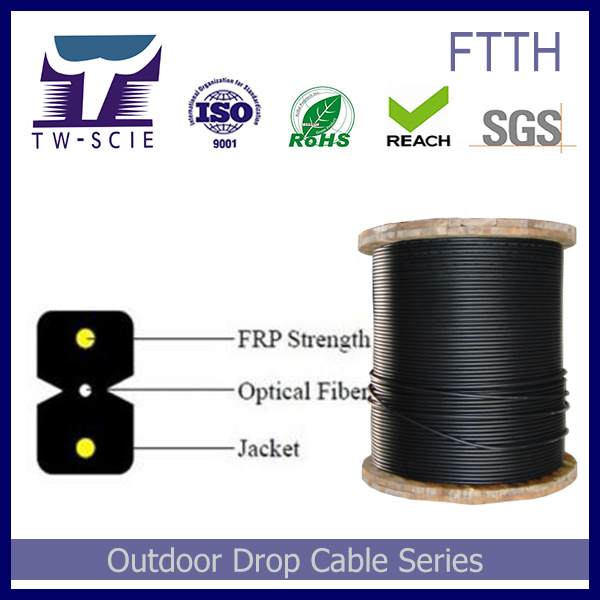

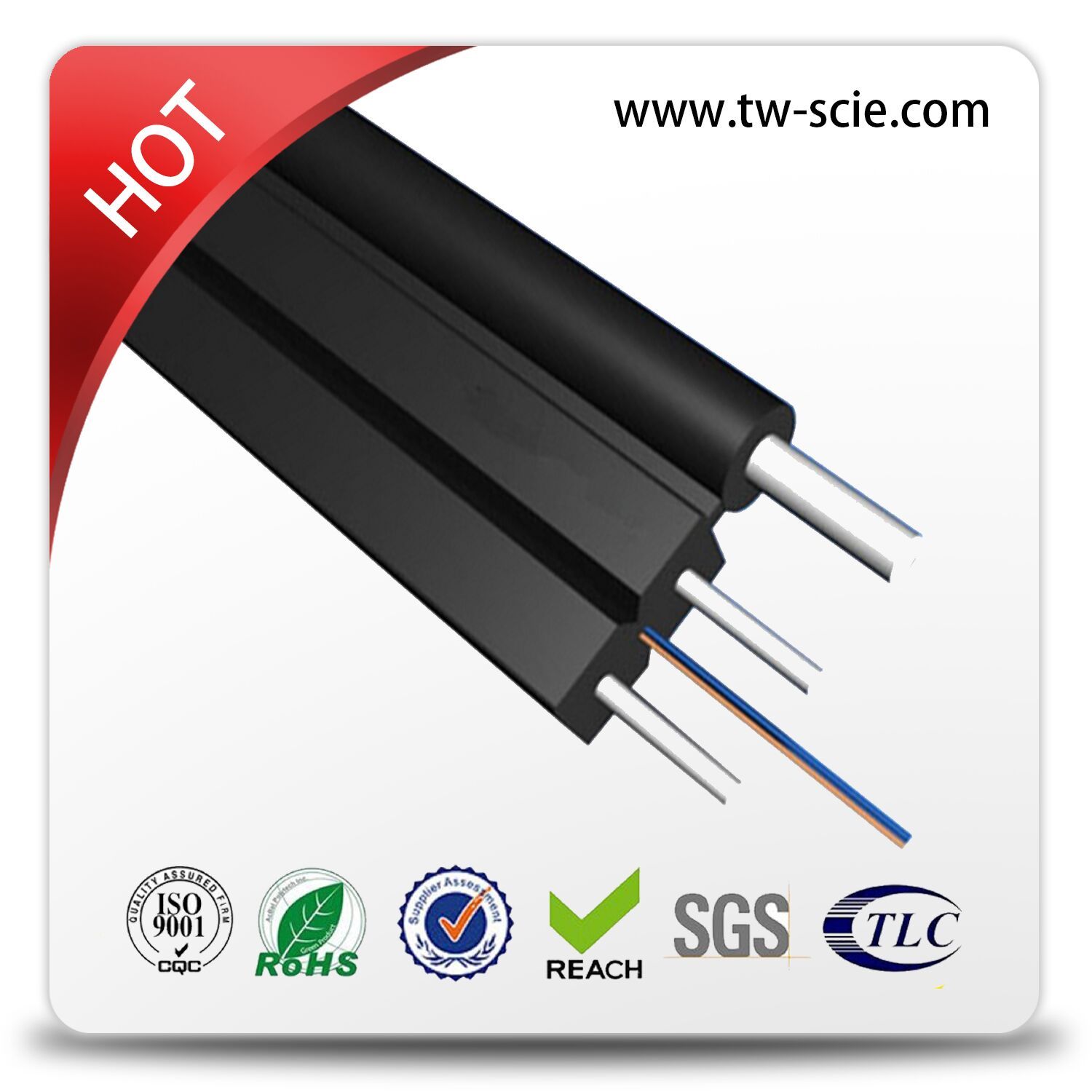

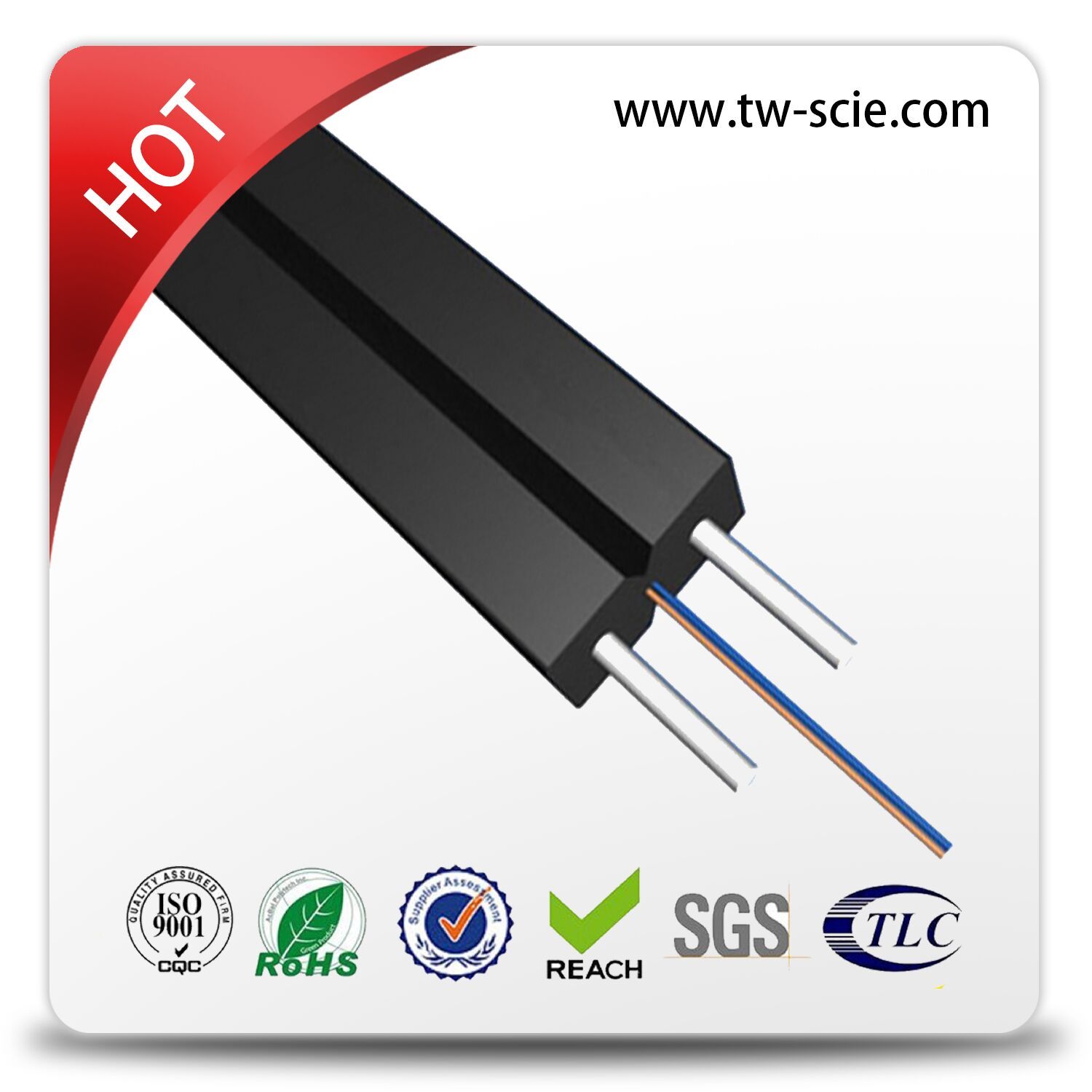

Product Description
Drop Wire 1F FTTH Fiber Optical Cable for Telecommuication Network
Fiber Parameters
No. | Items | Unit | Specification |
G.657A1 |
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
1550nm | μm | 10.1±0.5 |
2 | Cladding Diameter | μm | 124.8±0.7 |
3 | Cladding Non-Circularity | % | ≤0.7 |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
5 | Coating Diameter | μm | 245±5 |
6 | Coating Non-Circularity | % | ≤6.0 |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 |
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
1turn×10mm radius @1625nm | dB | ≤1.5 |
| | | | | | |
Cable Parameters
Items | Specifications |
Fiber Counts | 2 |
Colored Coating Fiber | Dimension | 250±15μm |
Color | Blue,Orange |
Strength Member | Dimension | 0.4mm |
Material | Steel |
Self-Supporting Member | Dimension | 1.0mm |
Material | Steel |
Jacket | Dimension | 5.2±0.2mm×2.1±0.1mm |
Material | LSZH |
Color | Black |
Mechanical and Environmental Characteristics
Items | Unit | Specifications |
Tension(Long Term) | N | 300 |
Tension(Short Term) | N | 600 |
Crush(Long Term) | N/10cm | 1000 |
Crush(Short Term) | N/10cm | 2200 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ºC | -20~+60 |
Operating Temperature | ºC | -40~+70 |
Storage Temperature | ºC | -40~+70 |

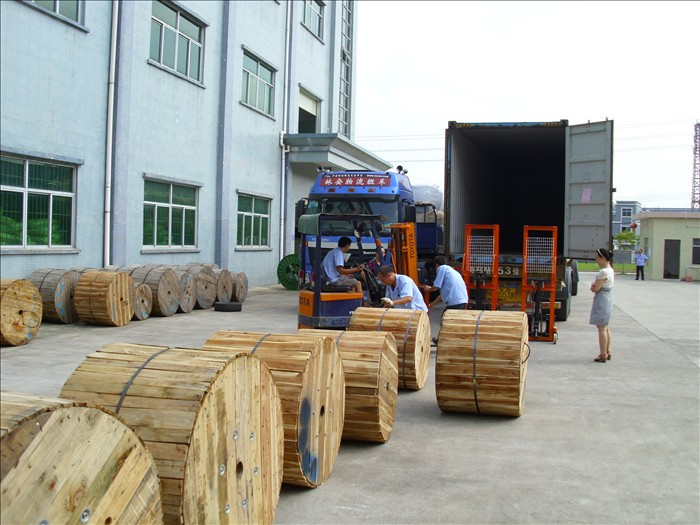

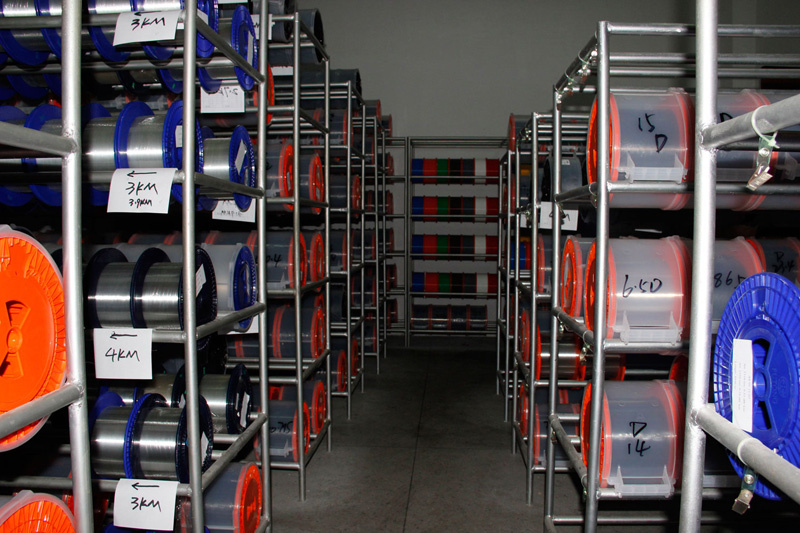

Company Profile:
Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Drop cable, optical cable, drop cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia. | ITEMS | UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100
|
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
