Product Description

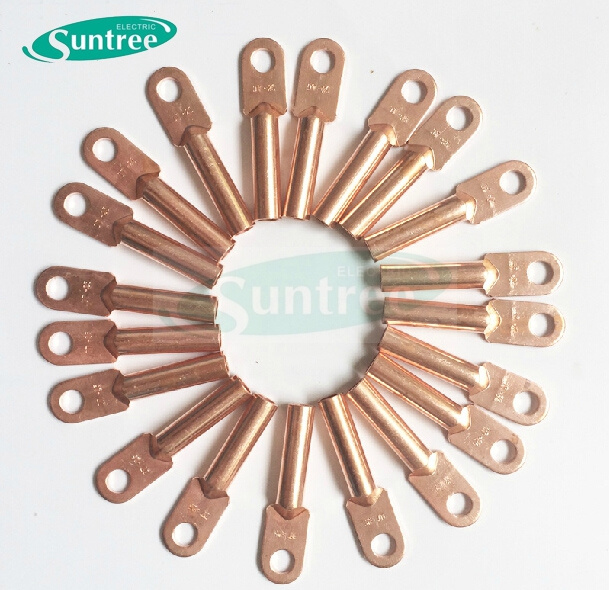

DT DTL copper terminal
These products are appliable to the connection of wires in distribution equipent power
supply cable with eledctrinic apparatus,it is made of (T2) copper tube by die cast and coated tin.
TYPE |
Φ |
D |
d |
L |
DT(G)-10 |
6.2 |
8 |
5 |
52 |
DT(G)-16 |
6.2 |
9 |
6 |
57 |
DT(G)-25 |
6.2 |
10 |
7 |
62 |
DT(G)-35 |
8.5 |
11 |
8 |
66 |
DT(G)-50 |
8.5 |
13 |
10 |
72 |
DT(G)-70 |
10.5 |
16 |
12 |
80 |
DT(G)-95 |
10.5 |
18 |
14 |
85 |
DT(G)-120 |
12.5 |
20 |
15 |
96 |
DT(G)-150 |
12.5 |
23 |
17 |
102 |
DT(G)-185 |
14.5 |
25 |
19 |
114 |
DT(G)-240 |
16.5 |
27 |
21 |
120 |
DT(G)-300 |
16.5 |
31 |
24 |
135 |
DT(G)-400 |
18.5 |
34 |
26 |
150 |
DT(G)-500 |
20.5 |
38 |
30 |
170 |
DT(G)-630 |
22.5 |
45 |
35 |
210 |
DT(G)-800 |
22.5 |
50 |
40 |
270 |
|
|
TYPE |
Φ |
D |
d |
L |
JG-10 |
6.2 |
8 |
5 |
38 |
JG-16 |
8.4 |
9 |
6 |
41 |
JG-25 |
8.4 |
10 |
7 |
46 |
JG-35 |
8.5 |
11 |
8 |
52 |
JG-50 |
8.5 |
13 |
10 |
54 |
JG-70 |
10.5 |
16 |
12 |
61 |
JG-95 |
10.5 |
18 |
14 |
66 |
JG-120 |
12.5 |
20 |
15 |
73 |
JG-150 |
12.5 |
23 |
17 |
77 |
JG-185 |
14.5 |
25 |
19 |
86 |
JG-240 |
16.5 |
27 |
21 |
83 |
JG-300 |
16.5 |
31 |
24 |
103 |
JG-400 |
18.5 |
34 |
26 |
113 |
JG-500 |
20.5 |
38 |
30 |
124 |
JG-630 |
22.5 |
45 |
35 |
140 |
JG-800 |
22.5 |
50 |
40 |
170 |
|
1.DTL series of copper_aluminum wiring tcrminals are suitable for transition
conncction of the circular aluminium wircs,hcmicycle_sertor aluminium wires,
power supply cables in the distribution equipment and copper terminals of
electrical equipment.
2.The material of alminium and copper is that of L3 and T2 respctively.
3.The technology of friction welding is wonderfully adopted.Therefore they have
disinguishing features of strong weld intcnsity,good nature in electrification,
resistant galvanic corrosion and long service life.
| Type | Ø | D | d | L | L1 | B |
| DTL-10 | 8.5 | 9 | 6 | 65 | 32 | 15 |
| DTL-16 | 8.5 | 10 | 6 | 67 | 35 | 16 |
| DTL-25 | 8.5 | 11 | 7 | 74 | 36 | 18 |
| DTL-35 | 10.5 | 12 | 8.6 | 79 | 39 | 20.5 |
| DTL-50 | 10.5 | 14 | 9.6 | 82 | 38 | 23 |
| DTL-70 | 12.5 | 16 | 11.5 | 92 | 45 | 26 |
| DTL-95 | 12.5 | 18 | 13.5 | 101 | 48 | 28 |
| DTL-120 | 14 | 20 | 15 | 105 | 50 | 30 |
| DTL-150 | 14.5 | 22 | 16.6 | 114 | 53 | 30 |
| DTL-185 | 16.5 | 24 | 18.6 | 121 | 53 | 34.5 |
| DTL-240 | 16.5 | 26 | 21 | 126 | 55 | 37 |
| DTL-300 | 20 | 32 | 23 | 142 | 65 | 42 |
| DTL-400 | 20 | 38 | 27 | 170 | 72 | 56 |
| DTL-500 | 21 | 45 | 29 | 195 | 78 | 60 |
| DTL-630 | 21 | 52 | 35 | 220 | 80 | 80 |
We also can provide these terminals and lugs.
fork terminals, ring terminals,
copper cable lugs, pin terminals,
bullet male terminals, bullet female terminals,
spade terminals, copper splice,
piggy back terminals, long full insulating terminals,
short full insulating terminals, tube terminals,
cord end terminals, pin terminals,
