Ot Copper Terminal

Ot Copper Terminal
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 100/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: ot
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dt: Dtl
Hs: 85369000
Screw: Screw Terminal
Thickness: 15.2mm
Width: 55mm
Height: 51mm
Rigid Cable: 0.75-3
Softe Cable: 0.75-35
Current: 125A
Copper: Dt Dtl Sc Jg Gt Gtl
Application: Conduct Electricity
Material: Copper
Type: Copper
Certification: CE

Product Description

ot copper terminal

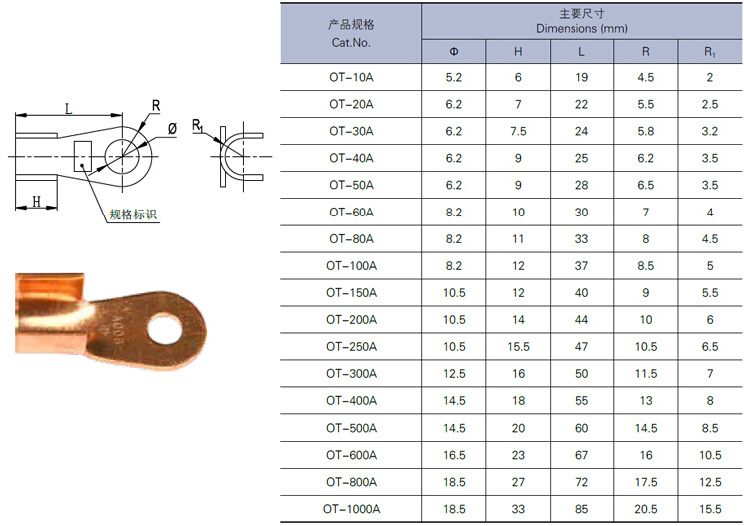

Dimension

Item No

Dimension(mm)

Φ

H

L

R

R1

A

OT-10A

5.2

6

14.5

4.5

2

0.8

OT-20A

6.2

7

17

5.5

2.5

1

OT-30A

6.2

8.2

19

5.8

3.2

1.2

OT-40A

6.2

9

19.5

6.2

3.5

1.2

OT-50A

6.2

9

21.5

6.5

3.5

1.2

OT-60A

8.2

10

23

7

4

1.4

OT-80A

8.2

11

25

8

4.5

1.5

OT-100A

8.2

12

29

8.5

5

1.5

OT-150A

10.2

12

31

9

5.5

1.6

OT-200A

10.2

14

33

10

6

1.7

OT-250A

10.2

15.5

36

10.5

6.5

2

OT-300A

12.2

16

40

11.5

7

2

OT-400A

14.2

18

43

13

8

2.2

OT-500A

14.2

20

46

14.5

8.5

2.4

OT-600A

16.0

22

50.5

16

10.5

2.8

OT-800A

18.2

26

61

17.5

12.5

3.2

OT-1000A

18.2

33

66

20.5

15.5

3.8


we also specialized in varieties of terminals or connector,in stock,item name: Crimp Terminal Type,Copper Connecting Terminals ;furcate terminal;ring terminal;naked terminal;pre insulated terminal;insert needle naked terminal;middle joint;naked terminal in the middle;male/female terminal.etc,if you have any need,please dont hesitate to contact me.
Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.

We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
