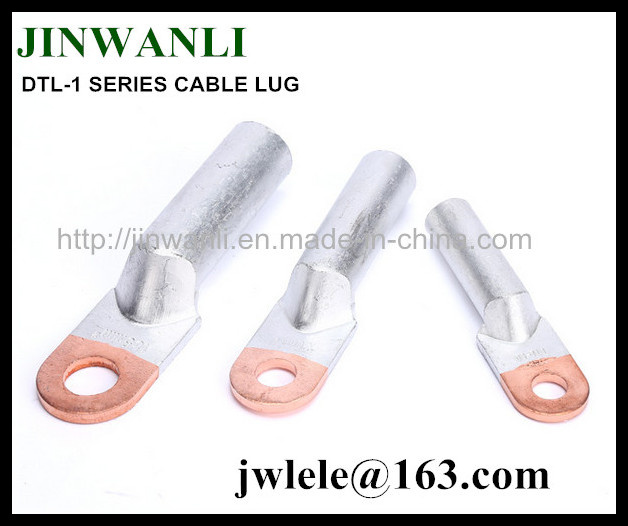

Dtl-1 Cooper-Aluminium Cu Al Cable Lug Wire Terminal Cable Joints

Name: Dtl-1 Cooper-Aluminium Cu Al Cable Lug Wire Terminal Cable Joints
Brand: all-electronics-online.com
SKU: 775806525
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Round

Product Description

DTL series aluminum and copper cable lugs with ISO certificate

1.Material: >99.9% pure copper tube T2. annealed & tin plated.
2.The extended barrel enhances both electrical and mechanical performance.
3.The absence of an inspection hole to prevent moisture entry into the crimped joint makes these terminals suitable for outdoor applications.
4.The advantage is that it has good electric conductance, electrochemlcal corrosion resistance, long service life
5. These products are suitable for the connection of copper conductors (section 1.5mm2-1000mm2) in power cable with electionic equipment.
6.Working temperature 55 degrees below zero-155 degrees terminal connector

Description
1.Bimetallic cable lug is suitable for the conjunction of wires cable in the distribution equipment and the electrical equipment.

2. Suitable for transition connection of circular aluminum wires, hemicycle-sector aluminum wires, power supply cables in the distribution equipment and copper terminals of the electrical equipment.

Dimension

Item No.	Cable spec. (mm2)	Dimensions(mm)						Note
Item No.	Cable spec. (mm2)	φ	D	d	L	L1	W	Note
DTL16	16	8.5	11	6.4	70	32	16	(1) Can be produced according to customer's drawings.
DTL25	25	8.5	12	7.4	75	34	18
DTL35	35	10.5	14	8.7	85	40	20.5
DTL50	50	10.5	16	9.7	90	42	23
DTL70	70	12.5	18	11.7	100	47	26
DTL95	95	12.5	21	13.7	110	50	28
DTL120	120	14.5	23	15.2	120	53	30
DTL150	150	14.5	25	16.7	125	55	34
DTL185	185	17	28	18.7	136	58	37
DTL240	240	17	30	21	148	60	40
DTL300	300	21	35	23.5	165	65	50
DTL400	400	21	38	26	170	70	50
DTL500	500	21	40	28.5	225	75	60
DTL630	630	-	45	34	245	80	80
DTL800	800	-			270	90	100
