Dtl-2 Copper Aluminium Connecting Electrical Crimp Cable Terminal Lugs

Name: Dtl-2 Copper Aluminium Connecting Electrical Crimp Cable Terminal Lugs
Brand: all-electronics-online.com
SKU: 775812515
Availability: InStock
Rating: 5 (138 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Dtl-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Round

Product Description

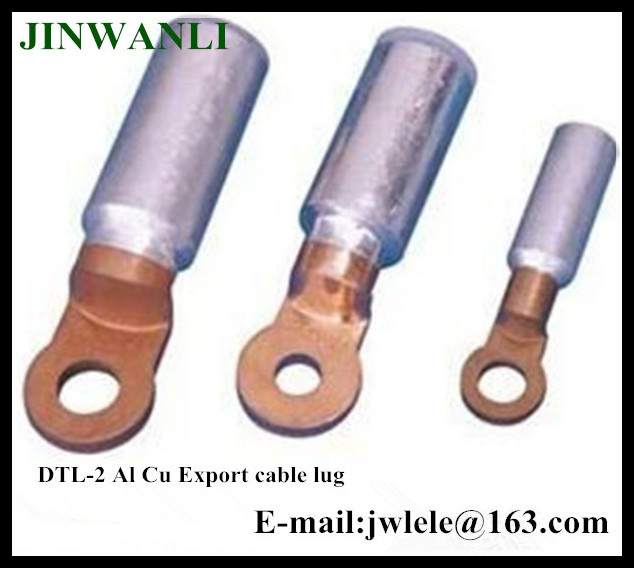

DTL Bimetal Cable Lug/Copper-Aluminium Terminal lug

1.Application

Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.

2.Technique of production:
friction welding. The transition section between aluminum and copper is produced by friction welding,bending 1800,no breaking welding.

3.Barrels are supplied capped and filled with jointing compound to avoid oxidation of the aluminum conductor.

4.Material:
99.9% purity copper & 99.5% purity aluminum

5.Conductivity:
copper 99.7% IACS Aluminum 61.2% IACS(1050)

6.Final treatment:
Acid cleaning

7.Size:
16sqmm to 630sqmm,Note: Copper palm for 500sqmm and 630sqmm is square.

Dimension

Type	Dimensions(mm)
Type	Φ	D	d	L	L1
DTL-2-15	13	16	6	90	42
DTL-2-25	13	16	7	90	42
DTL-2-35	13	16	8.5	90	42
DTL-2-50	13	20	9.6	90	43
DTL-2-70	13	20	11.5	90	43
DTL-2-95	13	20	13.5	90	4.3
DTL-2-120	13	25	15	115	60
DTL-2-150	13	25	16.5	115	60
DTL-2-185	13	32	18.5	122	60
DTL-2-240	13	32	21	122	60
DTL-2-300	13	34	23	125	62
DTL-2-400	19	40	26	159	70
DTL-2-500	19	47	29	167	75
DTL-2-630	21	54	34	200	80
