Dtl Compression Two Hole Terminal Lug Manufacturers

Name: Dtl Compression Two Hole Terminal Lug Manufacturers
Brand: all-electronics-online.com
SKU: 719601042
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTL
Finished:	Acid Cleaning
Technique Of Production:	Friction Welding
Sample:	Free
OEM:	Accept
Application:	Conduct Electricity
Type:	Crimp Terminal, Lug
Material:	Copper,Aluminum
Character:	High Conductivity
Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe

Product Description

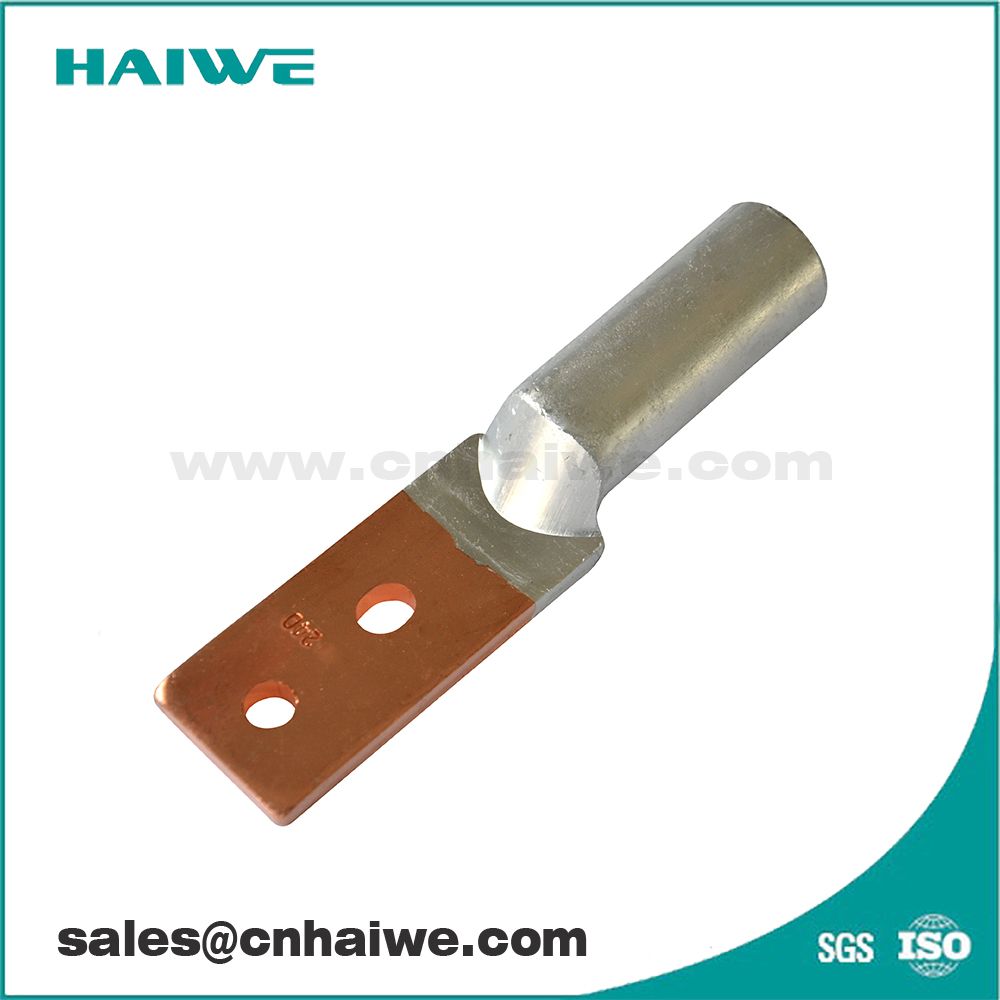

DTL compression two hole terminal lug manufacturers

Technical Requirements:
1. Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.
2. The transition section between aluminum and copper is produced through friction welding.
3. Marking shall be clear.
4. There is no burrs and curling.
5. Surface shall be acid-cleaning.

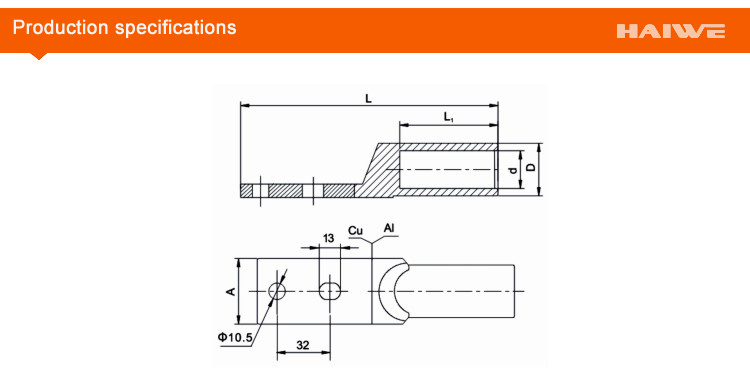

Type No	Main Dimensions(mm)
Type No	D	d	L	L1	A
DTL2-35F	16	8.5	117	40	22
DTL2-50F	16	9.8	118	42	22
DTL2-70F	18	11.5	133	48	28
DTL2-95F	21	13.5	144	52	28
DTL2-120F	23	15	148	53	34
DTL2-150F	25	16.5	152	56	34
DTL2-185F	27	18.5	163	58	40
DTL2-240F	30	21	168	60	40
DTL2-300F	34	24	180	65	50
DTL2-400F	38	27	192	70	50

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity. Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box, about 1000kg per pallet

5.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free

6.How to contact us?
A:Send your inquiry details in the below, Click "send" now!

Our Services

Service
1.Thousands of products in stock and ready to ship.
2.The most competitive pricing
3.Free shipment container loading
4.Putting the customer's needs first, always
5.On call,24 hours a day,7 days a week

Haiwe electric Co., Ltd was established in 2007, is China's leading Manufacturer- Exporter of wide range of components used in power transmission and distribution lines & Equipment building industries, and We are pleased to introduce ourselves as a pioneer of power fitting, Distribution fitting, Overhead transmission line, Electrical Substation line Overhead insulation fitting etc. As per customers specifications and drawings.

The company's main customer base is made up of Distributors / Wholesalers of Electrical Products, Electrical Contractors & Installers, Equipment manufacturers, Maintenance companies and Government authorities. And has successfully exported our products to Southeast Asia, South America, MID East, Africa etc.

We aim to deliver products with "Zero" defects with very optimum prices, to assure this Haiwe has achieved.

As you browse through our website, we hope you will find what you are looking for. If not, just send us your inquiry or give us a call. If it is relevant to our line of work, we will be happy to provide a solution.
