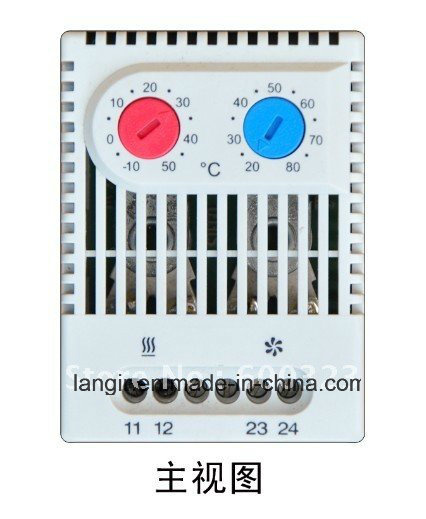

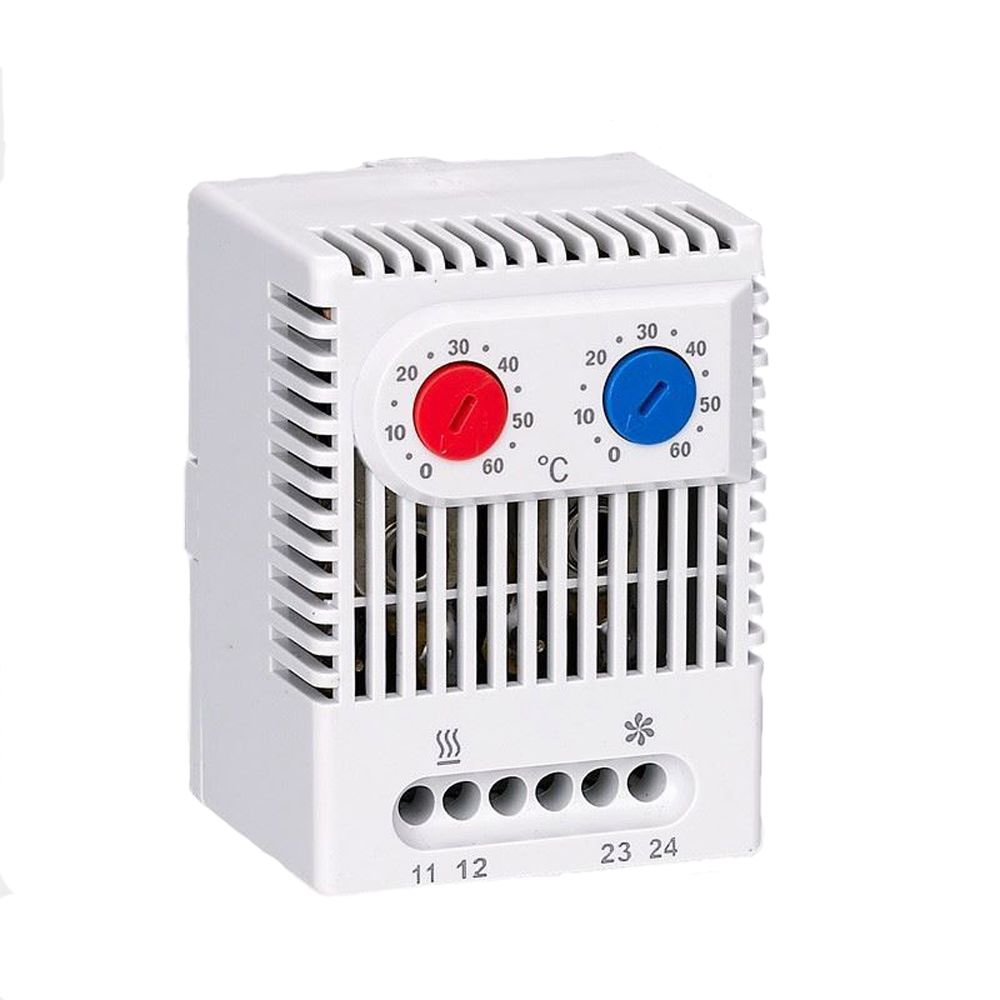

Dual Thermostat Zr011, Normally Open and Normaly Closed Control Temperature

Name: Dual Thermostat Zr011, Normally Open and Normaly Closed Control Temperature
Brand: all-electronics-online.com
SKU: 748768525
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZR011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensor Element:	Thermostatic Bimetal
Contact Type:	Snap-Action Contact
Service Life:	Over 100000 Cycles
Certification:	CE
Control Type:	Mechanical
Usage:	Industrial
Type:	Heating
Material:	Plastic
Operating Principle:	Temperature Controller
Brand:	Langir

Product Description

Specification
NO and NC in one casing
Separate adjustable temperatures
High switching capacity
Terminals easily accessible
Clip fixing
Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters. Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
Technical data:

Switch temperature difference7K (± 4K tolerance)
Sensor elementthermostatic bimetal
Contact typesnap-action contact
Contact resistance< 10mOhm
Service life> 100 000 cycles
Max. Switching capacity250VAC, 10 (2) A

120VAC, 15 (2) A

DC 30W
Connection4-pole terminal, clamping torque 0.5Nm max.: Rigid wire 2.5mm? 2; , stranded wire (with wire end ferrule) 1.5mm? 2;
Mountingclip for 35mm DIN rail, EN60715
Casingplastic according to UL94 V-0. Light grey
Dimensions67 x 50 x 46mm
Weightapprox. 90g
Fitting positionvariable
Operating/Storage temperature-45 to +80° C (-49 to +176° F)
Protection typeIP20
ApprovalsUL File No. E164102

Art. No. Setting rangeSetting rangeSetting rangeSetting range
01172.0-00contact breaker, normally closed0 to +60° Ccontact maker, normally open0 to +60° C
01172.0-01contact breaker, normally closed+32 to +140° Fcontact maker, normally open+32 to +140° F
01175.0-00contact breaker, normally closed-10 to +50° Ccontact maker, normally open+20 to +80° C
01175.0-01contact breaker, normally closed+14 to +122° Fcontact maker, normally open+68 to +176 ° F
01176.0-00*contact maker, normally open0 to +60° Ccontact maker, normally open0 to +60° C
01176.0-01*contact maker, normally open+32 to +140° Fcontact maker, normally open+32 to +140° F

Switch temperature difference	7K ( 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10mOhm
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
Connection	4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm, stranded wire (with wire end ferrule) 1.5mm
Mounting	clip for 35mm DIN rail, EN60715
Casing	plastic according to UL94 V-0. light grey
Dimensions	67 x 50 x 46mm
Weight	approx. 90g
Fitting position	variable
Operating/Storage temperature	-45 to +80C (-49 to +176F)
Protection type	IP20
Approvals	UL File No. E164102
