Duct 24 Fiber Optical Cable for Outdoor Use

Name: Duct 24 Fiber Optical Cable for Outdoor Use
Brand: all-electronics-online.com
SKU: 830874485
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	US $ 0.2/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTS
Fiber Counts:	2-288 Cores
Sheath:	HDPE
Cable Type:	Duct Amored Cable
Model No.:	GYTS
Fiber Type:	G652D
Package:	Customized
Application:	Single More or Multimode
Certification:	ISO9001
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable
Brand:	OEM or Tw-Scie
Sheath Material:	LSZH,HDPE,MDPE

Product Description

Duct 24 Fiber Optical Cable for Outdoor Use

Fiber Cable Descriptions

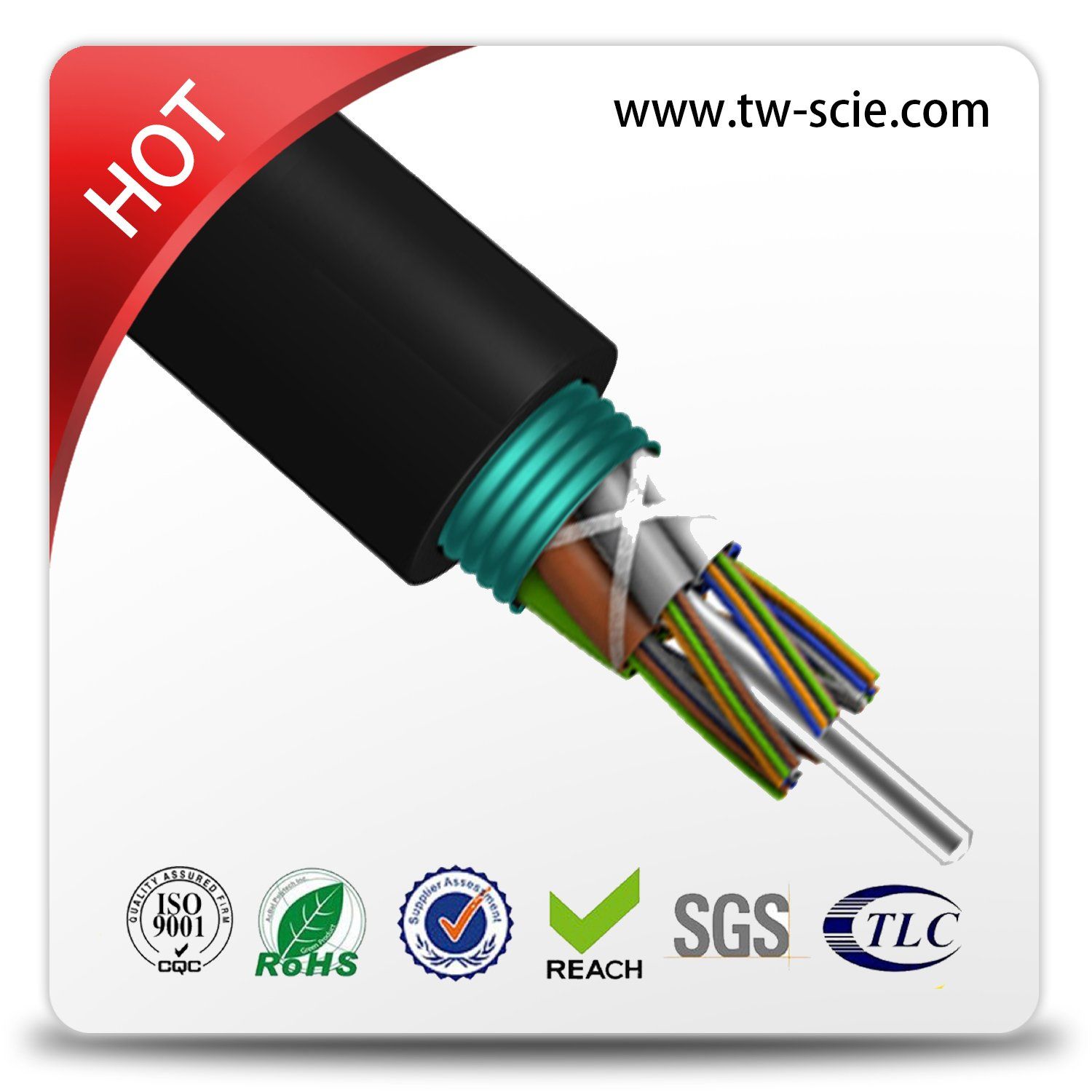

Structure characters:

Metallic strengthen member

Single coated PE corrugated steel tape under PE sheath

Properties: Armored steel tape providing maximum ,anti-crush property.

Bullet resistance performance

Recommended laying methods--Aerial, Duct

Applicable fields:

Long distance communication and LAN

Technical Data

Fiber range	Cable outer diameter	Cable weight	Min.bending radius		Allowable tesion(N)		Max.crus loading force(N/1000mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-30	9.8	115
32-36	10.6	140
38-60	11.0	140	10 times cable diameter	20times cable diameter	1500	600	1000	300
62-72	11.6	165
74-96	13.2	205
98-120	14.7	245
122-144	16.1	285
146-216	16.6	300
218-240	19.8	395
242-288	22.0	470

Product show

Packing &delivery

1) Length: 3000m/roll, other length is available according to clients request.

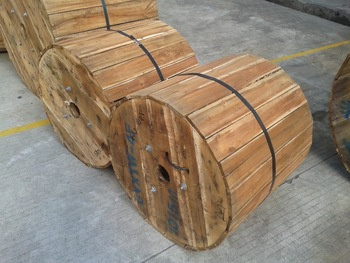

2) Packing: wooden drum

3) Other packing available according to client's request

Delivery Detail: 7-15 days after receiving 30% T/T or L/C
48 Cores Outdoor Direct Buried Amored Fiber Optic Cable GYTS

Company Introduction

Fiber cable manufacturer

Area 8000 m²

Certificate

Our products strictly adhere to ISO9001, CE and ROHS international standards,Certificate: UL/CE/ROHS/SGS/ISO9001

Good Service

Over 14 years of factory experience

Over 6 years of foreign trade experience

Direct factory price

Professional one -to-one service

Perfect customer service

OEM is available

Various products range

Package:
Packaging Details:All of our fiber optic cable package are with export wooden drum. Indoor FTTH cable's wooden dimension is 50x50x32cm, delivery length 3km/drum, Outdoor fiber optic cable's wooden dimension is 100cm*73cm*73cm, 0.54CBM, can be load about 44 drums for a 20GP.Also accept custom cable drum from customers. welcome to contact us!
