Duct Conduit Underground Fiber Optic Cable

Name: Duct Conduit Underground Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 752172105
Availability: InStock
Rating: 4.9 (104 reviews)

Price:	US $ 2000/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Outer Sheath Material:	PE
Metallic Strengthen Member:	Steel Wire
Filler:	Filling Compound
Single Armour Material:	Corrugated Aluminium Tape
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka,Fujikura or as Your Requiremen
Waterblocking Material:	Water Blocking Tape or Filling Compound
Installation Style:	Duct, Aerial
Loose Tube Material:	PBT with Jerry
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Sheath Material:	PE

Product Description

optical fiber cable GYTA

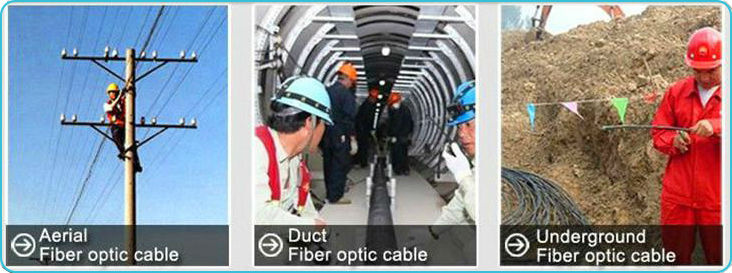

Recommended laying methods
Aerial, Duct

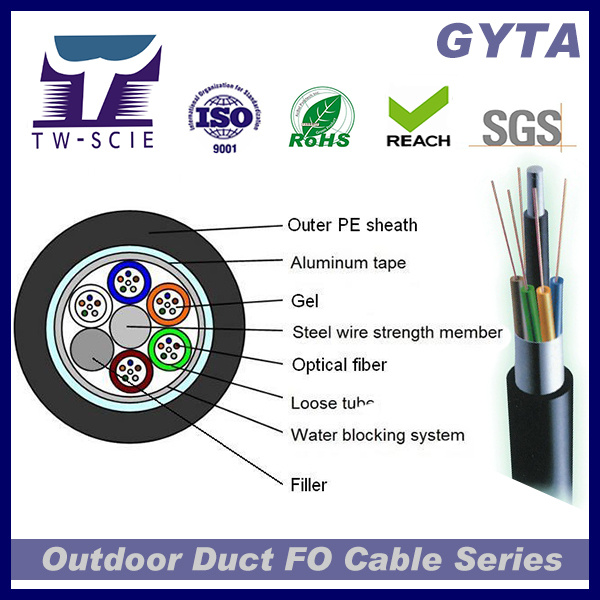

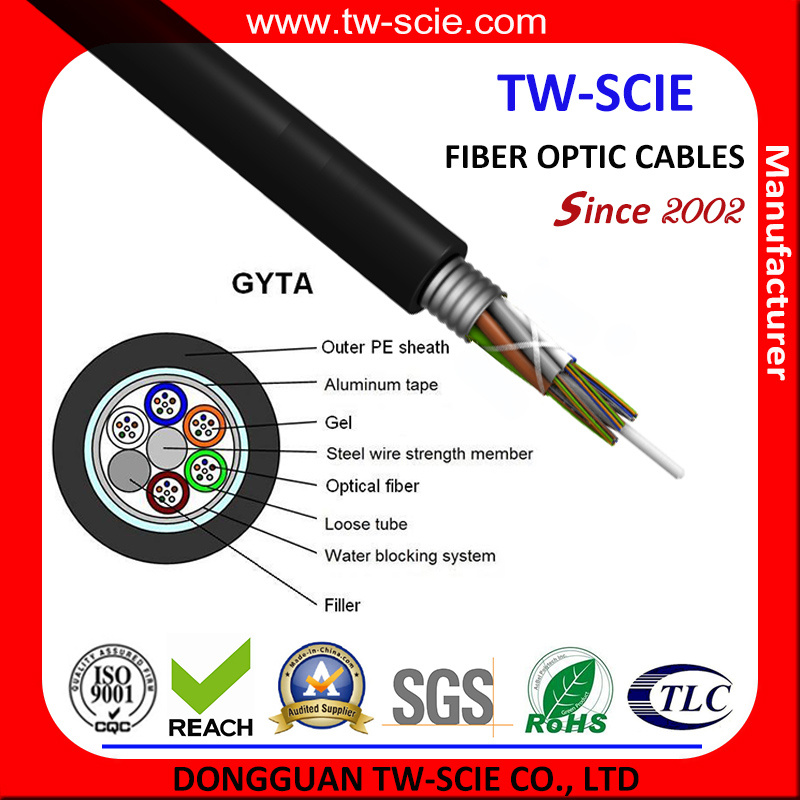

Structure Characters
Metalic strengthen member(phosphated steel wire)

Double coated PE Crrugated steel tape under PE sheath

Properties
Corrugated aluminium tape providing an excellent moisture barrier

Appicable fieds
Long-distance communication, LAN
Moisture-proof and rodent-proof

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min. Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Static	Dynamic	Short term	Long term	Short term	Long term
2-30	9.8	95	10 times O. D.	20 times O. D.	1500	600	1000	300
32-36	10.3	115
38-60	10.7	115
62-72	11.3	140
74-96	12.9	175
98-120	14.4	210
122-144	15.8	245
146-216	16.3	260
218-240	19.5	345
242-288	21.7	415

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
