| Prod Model: |
GYFTY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Structure: |
Multi-Loose Tube None Armor |
| Applications: |
Outdoor Duct/Outdoor Cable/Aerial/Lashed |
| Fiber Options: |
Itu G652D ,G657A,Om1,Om2,Om3,Om4 |
| Fiber Count: |
2-288 Cores |
| Installation Tensile: |
2700n |
| Bend Radius (Under Installation): |
20 X External Diameter of Cable |
| Strength Member: |
Fiberglass Reinforced Plastic (FRP) |
| Material Of Jacket: |
Black Polyethylene (PE) |
| Temperature: |
-40-+70 C |
| Warranty (Year): |
2 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Other |
| Core: |
2-288 |
| Brand: |
Efon |
Product Description

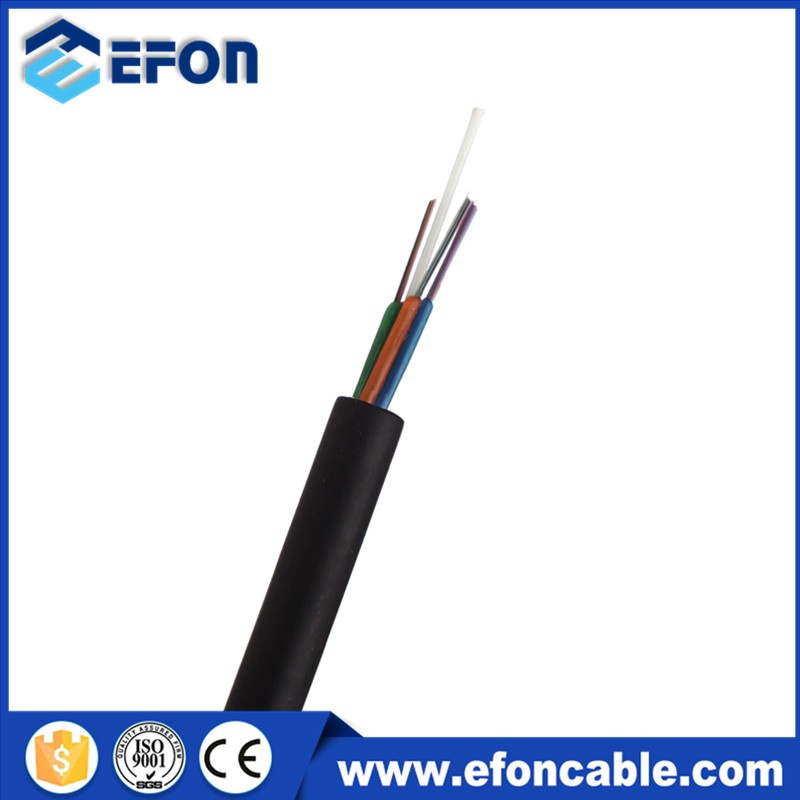

Description: Duct Singlemode 48/96/144 Cores Optical Fiber Cable GYFTY Single Jacket None Metallic optical fiber cable are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
Loose Tube Single Jacket All Dielectric cables are lightweight with small diameter and designed for duct and aerial(lashed) installation.
Features
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
All Dielectric structure.
UV and moisture-resistant design.
Applications
Backbones and Access.
Installed in ducts, lashed/Aerial.

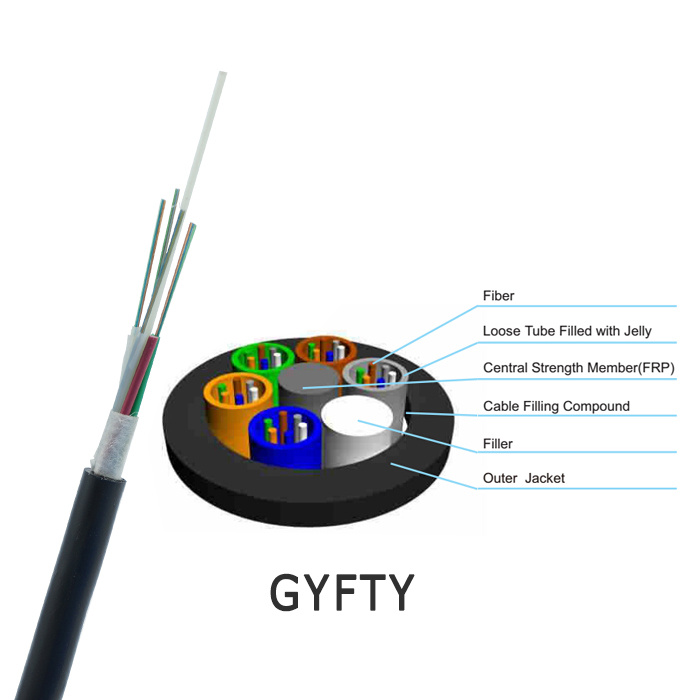

Structure and Technical Specifications GYFTY
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber
Per Tube | Max No. of
(Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance
(N/100mm) |
Short Term | Long Term | Short Term | Long Term |
2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
>144 | Available upon customer request |

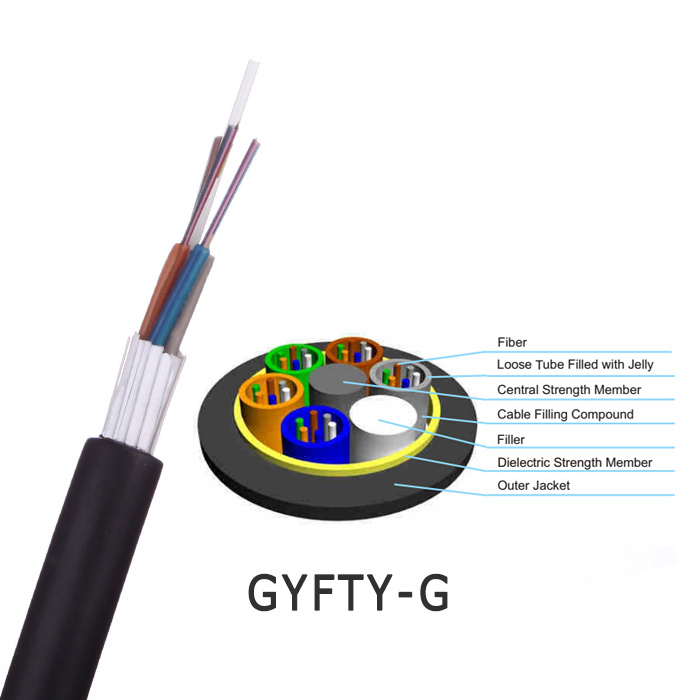

Structure and Technical Specifications GYFTY-G (Yarn)
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber
Per Tube | Max No. of
(Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance
(N/100mm) |
Short Term | Long Term | Short Term | Long Term |
2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
>144 | Available upon customer request |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We produce and test cable comply with following standard:
Mechanical Performance |
Max Tension Performance | IEC 60794-1-2-E |
Max. Operation Tension | IEC 60794-1-2-E1 |
Crush Test | IEC 6079 -1-2-E3 |
Impact Test | IEC 60794-1-2-E4 |
Repeated Bending | IEC 60794-1-2-E6 |
Torsion Test | IEC 60794-1-2-E7 |
Cable bend | IEC 60794-1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance |
Temperature Cycling | IEC 60794-1-2-F1 |
Water Penetration | IEC 60794-1-2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
You May Like
Main products:
About us:Located in Ningbo, the main seaport city in China, Ningbo Haishu Efon Communication Limited is a professional manufacturer of fiber optic cables. We have more than 15 years' experience in producing communication cables and fiber optic cables. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the world.
Quality and Safety We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed RoHS, ISO9001 and TLC certifications.
Our Principles Full customer satisfaction Commitment to high-quality service Long-term cooperation and profits for each other
More information:
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty:
All products have been tested before ship out
All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.
We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

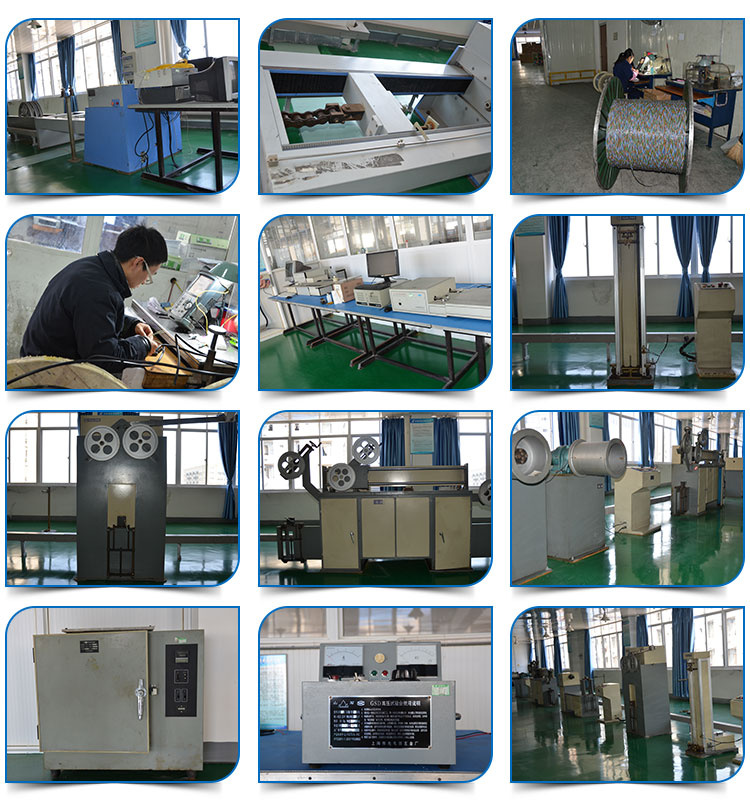

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.
