Product Description

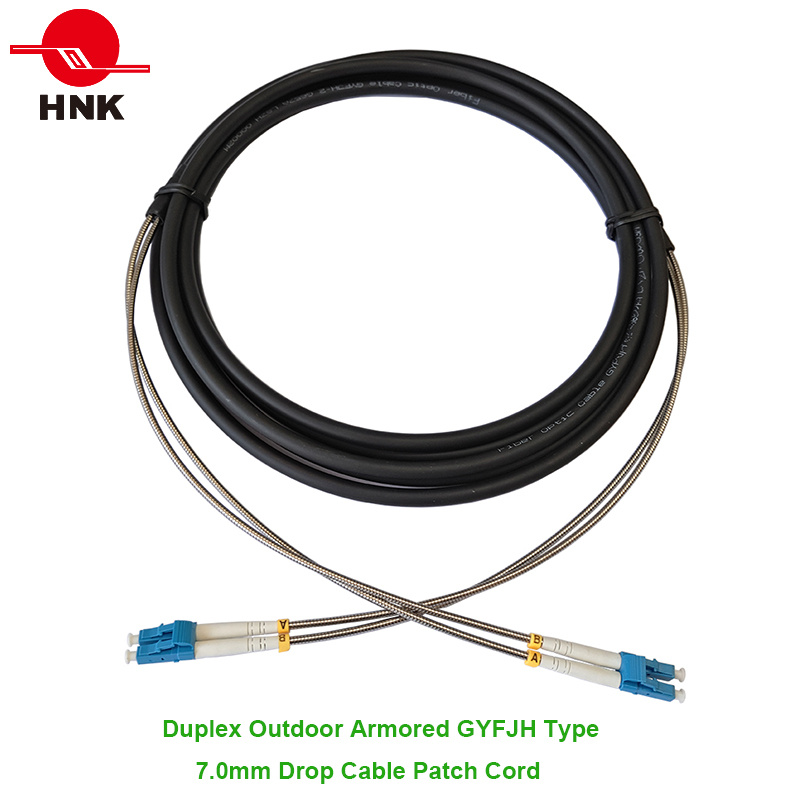

All dielectric GYFJH type drop cable containing two simplex Φ2.0mm sub unit cables with waterblocking E-glass strength members, and then with an overall Φ7.0mm LSZH outdoor jacket. The sub unit cable consist of a 900μm tight buffer optical fiber in a LSZH inner jacket with aramid yarn. It has small diameter, light weight and thick wall jacket protection, giving it versatile applications.
Duplex armored GYFJH type drop cable patch cord is widely used for building access, cabling construction, FTTx networks and Base station, suitable for fiber optic networks far transmission in indoor/outdoor harsh environment.
Standards Compliance
. Telcordia GR-326-CORE Generic requirements for Single mode
optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. Comprehensive wiring standard: ANSI/TIA-568-C.3,
ISO/IEC 11801 2nd Ed., CENELEC EN 50173,
. Cable flame resistant rate:OFN or IEC60332-3 standard
. RoHS Compliant Directive 2011/65/EU
Features
. The cable is Soft, flexible, onvenient laying.
. Suitable for riser, duct, horizontal and vertical cabling.
. Thick wall outer jacket and E-glass gives more excellent tensile strength,
mechanical, rodent, ultraviolet and environmental protection.
. Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
. Drop cable patch cord will be produced to different kind of connectors
and different length according to the construction need.
. With high tensile strength armored tube for protecting
Φ2mm outdoor branch cable, custom lengths.
Mechanical, Environmental & Material Data
Items | Specifications | Items | Specifications |
| Fiber Type | Singlemode or Multimode | Connector Style | SC, FC, ST, LC, MU, E2000, DIN |
| Polish or Ferrule Interface Type | PC, UPC, APC | Cable Lengths | Custom Lengths |
| Fiber Count | 2 | Branch Cable Lengths | Custom Lengths |
| Cable Parameter |
| Outer Jacket Material | LSZH | Outer Jacket Color | Black |
| Strength Member | E-glass | Outer Jacket Diameter(mm) | 7.0±0.1 |
| Crush(Long term) | 1100 N/100mm | Crush(Short term) | 2200 N/100mm |
| Min Bend Radius(Dynamic)mm | 30D | Min Bend Radius(Static)mm | 15D |
| Maximum Tensile Load(Long term) | 200N | Maximum Tensile Load(Short term) | 400N |
| Sub-unit Parameter |
| Sub-unit Color | Orange, Black | Sub-unit Material | LSZH |
| Sub-unit Diameter(mm) | 2.0±0.1 | Strength Member | Aramid yarn |
| Storage Temperature(°C) | -20°C to 70°C | Installation Temperature(°C) | -20°C to 70°C |
| Operating Temperature(°C) | -20°C to 70°C | | |
Optical Characteristics
| Fiber Type | Max. Attenuation(dB/km) | Min.Overfill Launch Bandwidth (Mhz.km) | Min.Gigabit Ethernet Link
Distance (m) |
| Gigabit | 10Gigabit |
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Optical Performance Data
| Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
| Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | PC≥35dB |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: ODPC-AA-BB-CDE
Ordering Guide
| AA | BB | C | D | E |
| Connector Type | Connector Type | Fiber Type | Cable Length | Branch Cable Length |
| FP,SP,SA,LP | FP,SP,SA,LP | OM1=62.5/125 OM1, OM2=50/125 OM2
OM3=50/125 OM3, OM4=50/125 OM4
G652D=9/125 G652D, G657A=9/125 G657A | 003=3M
020=20M
100=100M | 02=0.2M
10=1M |
Connector Type Code
| Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC | MU | MU | DN | DIN |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC | MT | MTRJ | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| ODPC-LP-LP-G657A30005 | LC/PC-LC/LPC Duplex Outdoor Armored GYFJH Type Drop Cable Patch Cord,
Singlemode G657A, 300M, Branch Cable 0.5M. |
