Duplex Far Transmission Cable Base Station Fiber Optical Cable

Name: Duplex Far Transmission Cable Base Station Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 687113421
Availability: InStock
Rating: 4.9 (38 reviews)

Price:	US $ 0.5-2/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-OCFT0102
Used In:	Base Station (BS) Horizontal and Vertical
Fiber Capacity:	2 Cores
MOQ:	2km
Print:	Customized
Jacket Color:	Black
Breakout:	2.0mm Simplex
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Cable
Sheath Material:	TPU,LSZH,PVC,Zrpo

Product Description

FA-OCFT0102, Base Station Fiber Optical Cable, Far Transmission Cable, Duplex

Description:

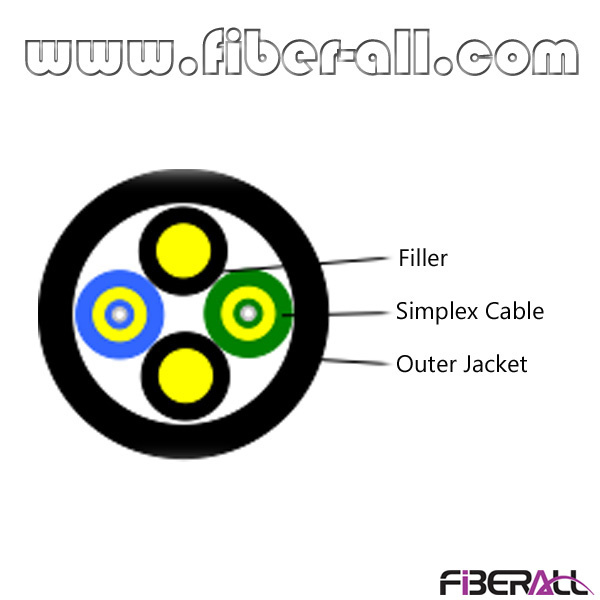

Round, 2.0mm Simplex Cable Inside, with two fillers
Options of Jacket Material: Environmental Low Smoke Zero Halogen flame retardant polyolefin (LSZH), environmental halogen flame retardant polyolefin (ZRPO), environmental thermoplastic polyurethane (TPU), or other contracted material;
Fiber Types: G652B, G652D, G655 or G657A Single Mode Fiber, A1a or A1b Multi-mode Fiber, or other types of fiber; with TPU tensile jacket, with 2.0mm simplex fan-out cable inside

Application:
Mainly used in wireless Base Station (BS) horizontal and vertical fiber cabling.

Technical Parameters:

Fiber Count	Cable Dimension (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Min. Bend Radius (mm)		Range of Temperature (ºC)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Static
2	7.0	42.3	200	400	500	1000	20D	10D	-20~+60

Note: Fiberall China also provides patch cord or pigtail with this cable.

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
