Duplex Flat 2 Core Indoor Fiber Optic Cable
| Price: |
US $ 40-200km |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10km |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
GJFJBV (Duplex, Flat Cable) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Type: |
Gjfjbv |
| Type: |
Multi-mode Fiber |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Sheath Material: |
Lszh |
Product Description
Description of Duplex Flat 2 Core Indoor Fiber Optic Cable
*2 Core indoor Double Flat Optical Fiber Cable

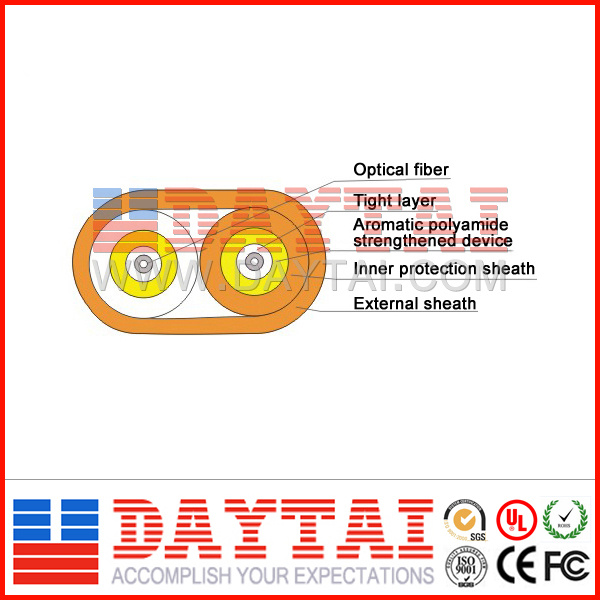

*The structure of GJFJBV (GJFJBZY) (flatindoor optical cable used used for telecommunication with non-metallic centralstrength and tight-buffered PVC sheath (flat indoor optical cable used fortelecommunication with non-metallic central strength and tight-buffered PEflame-retardant sheath) is covering the tight-buffered material of highcohesional strength out of the single mode and multi-mode optical fiber to become the tight-buffered optical cable The cable takes high-strength aramidyarn as the strengthen device, and extrude a PVC sheath (LSZH sheath) out of the cable.
Feature of Duplex Flat 2 Core Indoor Fiber Optic Cable
*The HD aramid strengthened device ensures thenon-stretching strain of the optical fiber and the long-term stabletransmission properties of the optical fiber.
*The product is lightweight, flame-retardant, flexible, easy to be peeled with smaller outer diameter andlower attenuation.
*It also can be used for the direct connection betweentight-buffered optical cable without reducer union and tail optical cable, whichis easily to be operated and maintained.
Application of Duplex Flat 2 Core Indoor Fiber Optic Cable
*Ideal for interconnect applications forinstruments and communication equipments.
*Ideal for interconnect applications forinstruments and communication equipments.
| TECHNICAL PARAMETERS |
| Number of cores | Cable Size (mm) | Tensile Strength (N) | Crush Resistance (N/100mm) | Bending Radius (mm) | Cable Weight (Kg/Km) |
| Short Term | Long Term | Short Term | Long Term | Dynamic | Static |
| 2 | 3.0x5.0 | 150 | 100 | 500 | 100 | 20H | 10H | 17 |
| 2 | 4.0x7.0 | 300 | 200 | 500 | 100 | 20H | 10H | 28 |
| 2 | 4.4x7.4 | 300 | 200 | 500 | 100 | 20H | 10H | 34 |
| Operating Temperature | -20~+60 |
| Flame Class | Accord with the instruction of UL: OFNP, OFN-FT6, OFNR, OFN-FT4. |
| Remark | Other requirements can be provide & Cable is accord with the instruction of EU ROHS. |
| TRANSMISSION PERFORMANCE |
| Fiber Type | 62.5um (OM1) (850nm/1300nm) | 50um (OM2) (850nm/1300nm) | 50um (OM3) (850nm/1300nm) | SM (850nm/1300nm) |
| Attenuation (Max) (dB/Km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.8/0.6 |
| Attenuation of Typical Values (dB/Km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.4/0.3 |
| LED Bandwidth Min (Mhz.Km) | 200/500 | 500/500 | 1500/500 | ----- |
| Remark | Other requirements can be provide. |
