Duplex LC Fiber Optic Connector with Upc APC Ceramic Fiber Ferrule

Name: Duplex LC Fiber Optic Connector with Upc APC Ceramic Fiber Ferrule
Brand: all-electronics-online.com
SKU: 808310825
Availability: InStock
Rating: 4.6 (62 reviews)

Price:	Negotiable/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC Connector
Type:	Fiber Optic Connector
Certification:	Ce, RoHS, ISO9001, UL
Sheath Material:	PVC/LSZH
Transmission Medium:	Single-Mode
Structure:	LC
Number Of Cores:	Multi-Core
Ferrule Endface:	APC
Application:	Communication

Product Description

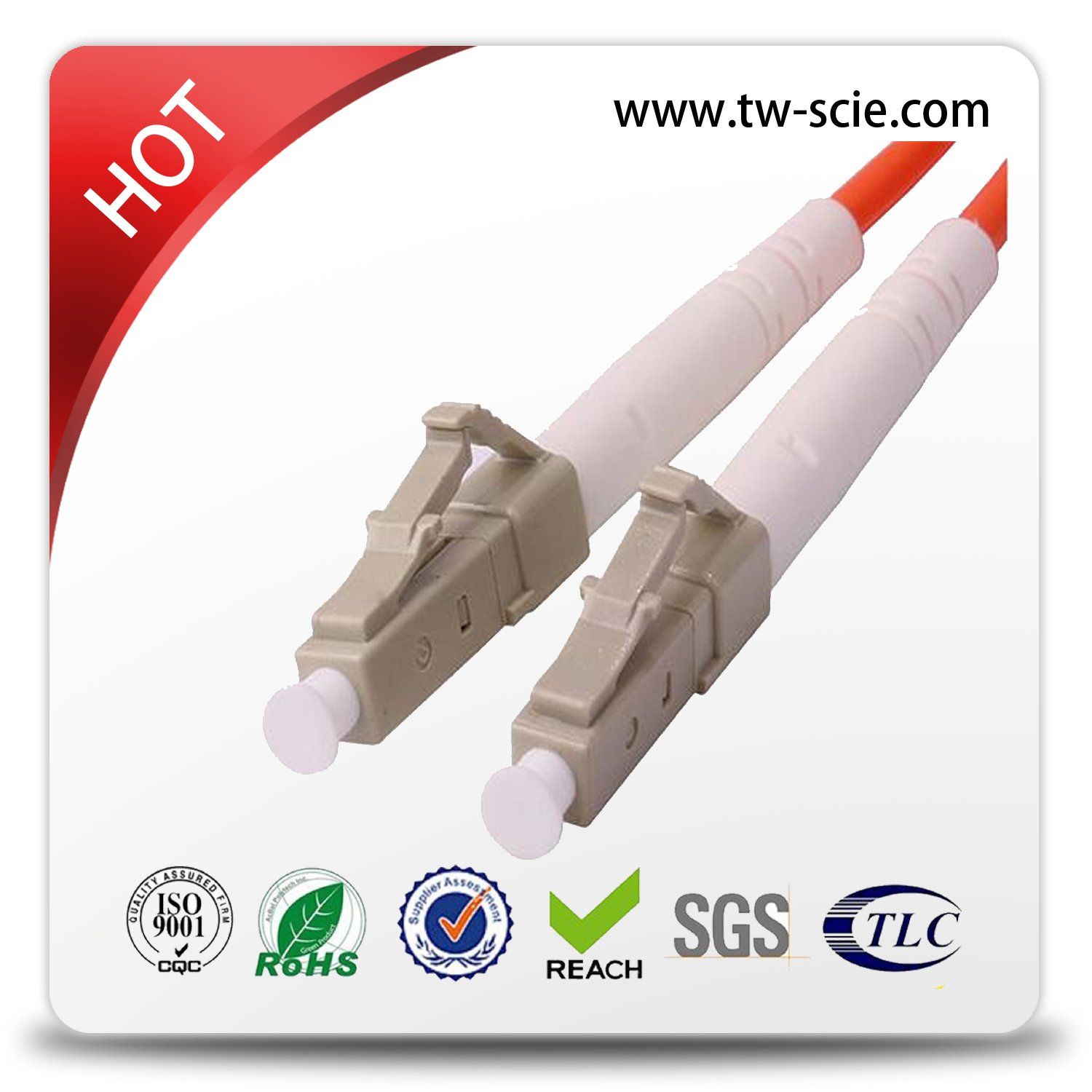

Duplex LC Fiber Optic Connector with UPC APC Ceramic Fiber Ferrule

Qick Detail:

Name: LC Fiber Optic Connector
Ferrule size: 1.25mm
Cable diameter: 0.9mm, 2.0mm, 3.0mm

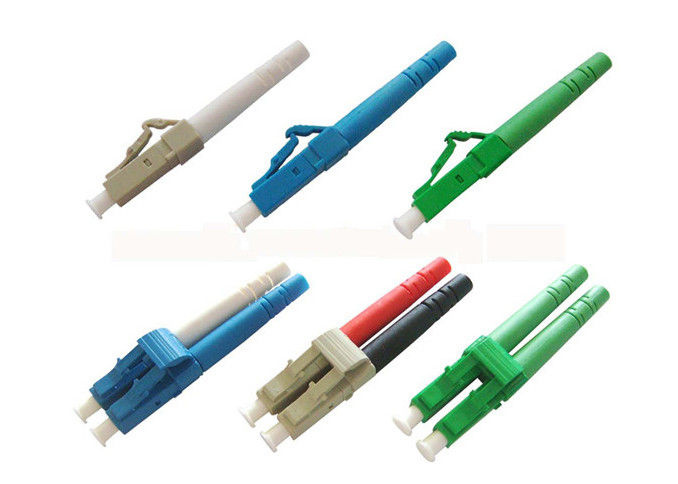

Type: simplex, duplex
Material: Plastic, Zinc Alloy(Ceramic), Bronze
Boot color: Yellow, Beige, Aqua, White, Red, Black, Green…

Description:

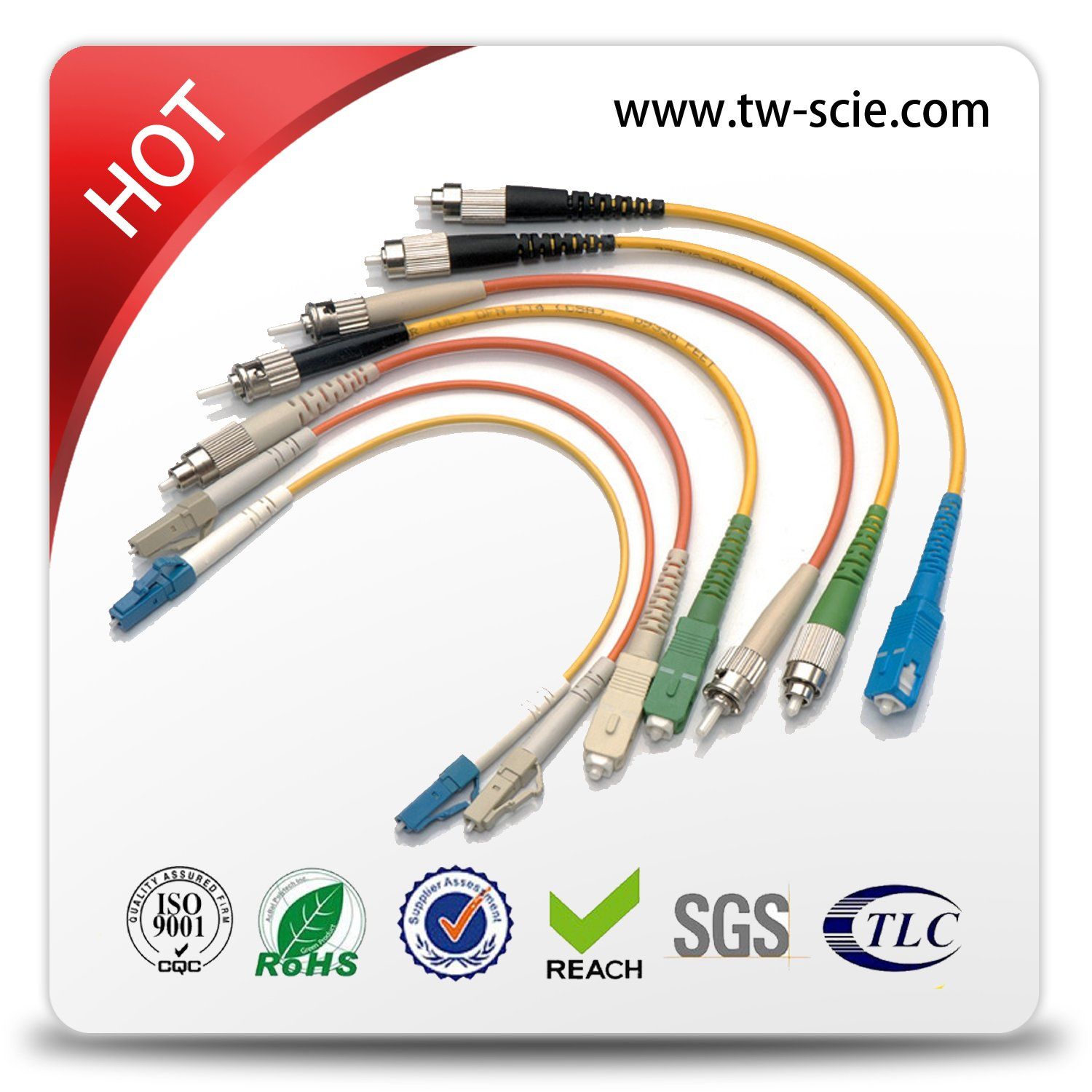

There are many kinds of fiber optic connectors. We supply fiber optic types include: SC, FC, ST, LC, MU fiber optic connector, etc.

Features:

Easy installation
Competitive price
Telcordia style boots
Good durability
Good temperature performance

Applications:

Telecommunication
Computer networks
CATV networks
Active device termination
Fiber Optic Telecommunications

Specification:

Insertion loss	SM	≤0.20 dB
Insertion loss	MM	≤0.25dB
Return loss	P C	≥50 dB
	UPC	≥55 dB
	APC	≥65 dB
Durability	<0.20 dB typical change, 1000 mating
Ferrule hole sizes	SM: 125.0+1/-0um	concentricity:≤1.0um
	125.5+1/-0um	≤1.0um
	126.0+1/-0um	≤1.0um
	MM:125 um	concentricity:1≤3 um
	127 um	≤3 um
	128 um	≤3 um
Operating temperature	-40~80°C

Ordering Information:

Step 1: Connector Type: FC,SC,LC,ST,MTRJ,MU,MPO,D4,DIN,SMA

Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm

Step 3: Ferrule End-face: PC, UPC, APC

Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)

Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

Standard and customized OEM products from small to large quantity are welcome.
Compliance with global environmental industry with RoHS and SGS standards.
All products are 100% fully tested by our technical expertise.
We could add customer's logo in the label.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
