Duplex Singlemode 9/125 OS2 Indoor FTTH Fibre Optic Patch Cable

Name: Duplex Singlemode 9/125 OS2 Indoor FTTH Fibre Optic Patch Cable
Brand: all-electronics-online.com
SKU: 819624345
Availability: InStock
Rating: 4.3 (87 reviews)

Price:	US $ 4.4-4.7/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH-SM-DX-KFRP-LSZH
Od:	2.0mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Sheath Material:	LSZH

Product Description

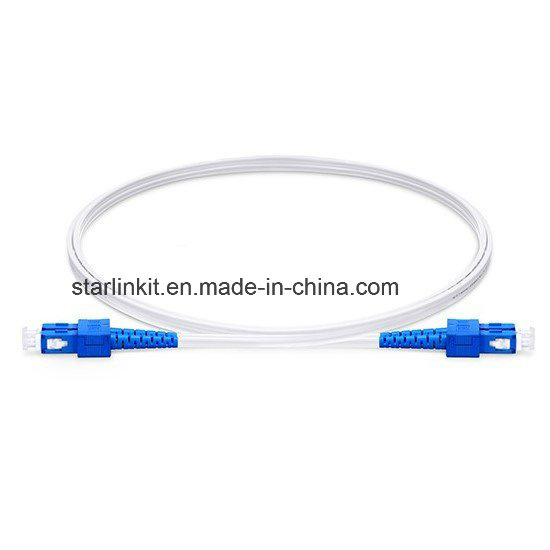

Duplex Singlemode, KFRP Strength Member, FTTH Fiber Patch Cable

With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center. Two parallel Kevlar Fiber Reinforce Plastic (KFRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.

Cable Type	FTTH Indoor Patch Cable	Fiber Count	Duplex
Jacket Color	White	Jacket Material	Low Smoke Zero Halogen
Cable Diameter	2.0mm	Fiber Type	Singlemode G652D
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Strength Member Material	KFRP	Tensile Strength (long/short term)	300/600N
Crush Load (long/short term)	1100/2200 (N/100mm)	Bending Radius (long/short term)	10D/20D (mm)
Installation Temperature	-10 to +60°C	Operation Temperature	-10 to +60°C

Ideal Solution by FTTH Indoor Fiber Patch Cable

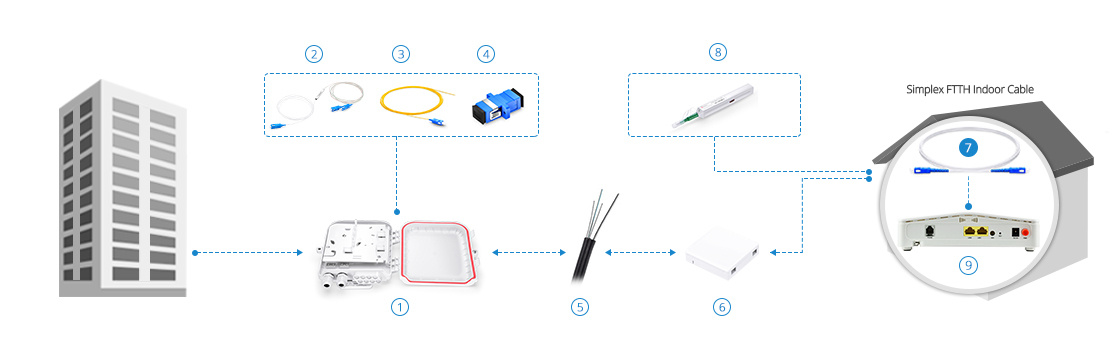

With easy accessiblility to the fiber and simple installation, FTTH cable can be directly connected to the homes. The following figure shows the Simplex FTTH Indoor fiber patch cable used together with fiber optic wall plate outlet in part of FTTH solutions.
