Durable Automatic Sliding Door Parts for Autodoor

Name: Durable Automatic Sliding Door Parts for Autodoor
Brand: all-electronics-online.com
SKU: 707076712
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	US $ 40-50/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PAD1009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Bea
Transmitting Frequency:	24.125GHz
Radiant Power:	<20 dBm Eirp
Max. Mounted Height:	3m
DIP Angle:	25°, 30°, 35°, 40°
Detection Type:	Motion Detector

Product Description

Durable automatic sliding door parts

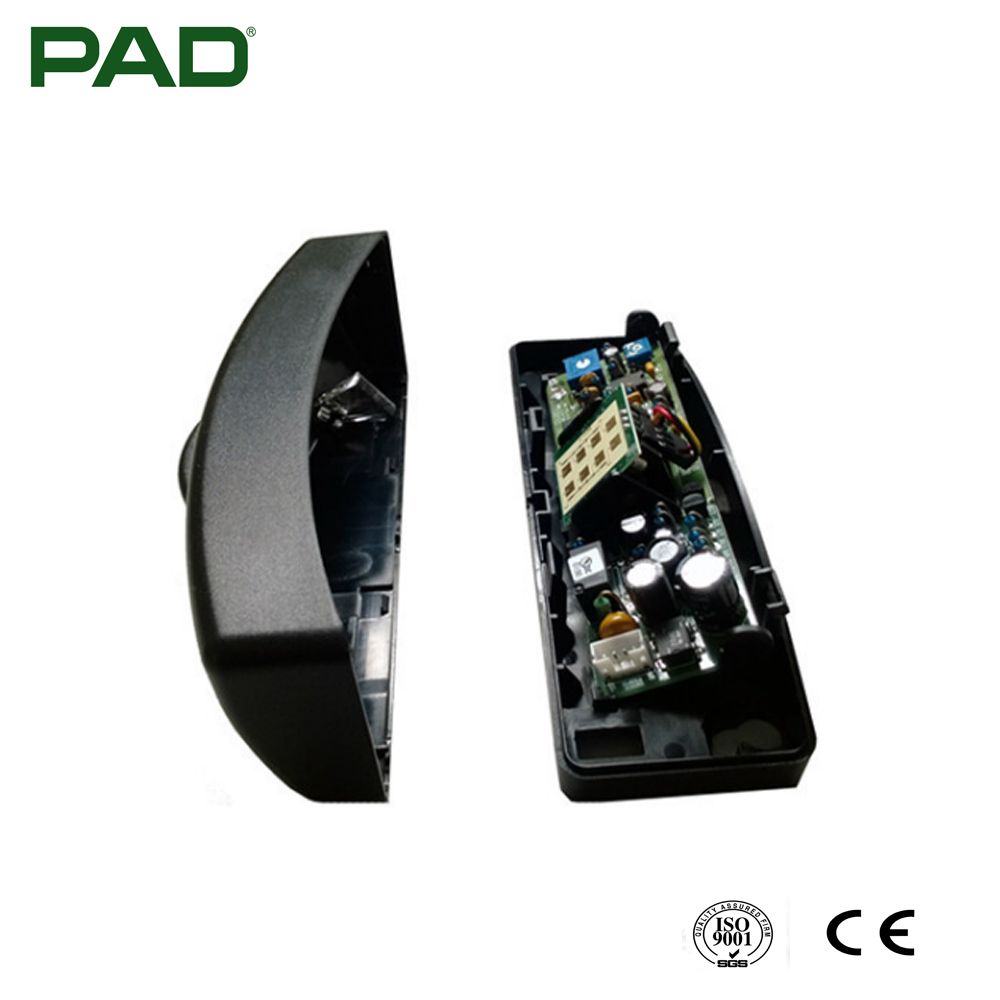

1. Shell 2. Light cross 3. Potentiometer to adjust sensitivity 4. Indicator light (LED)
5. Planar antenna 6. Cable connector
Technical data

Transmitting frequency	24.125GHz
Transmitting power density	<5mW/cm²
Radiant power:	<20 dbm EIRP
Power consumption	<2W(VA)
Size	142mm(W)46mm(H)55mm(D)
Protection grade	IP52

Transmitting frequency: 24.125GHz
Radiant power: <20 dbm EIRP
Transmitting power density: <5mW/cm²
Max. mounted height: 3m
Dip angle: 25°, 30°, 35°, 40°
Max. detection area: 4m(W)*2.2m(D)
Detection mode: motion
Min. speed: 5cm/s(axial direction)
Supply voltage: 12V~24V AC +/-10%; 12V~30V DC
Supply frequency: 50Hz ~ 60Hz
Power consumption: <2W(VA)
Ambient temperature: -20ºC ~ +55ºC
Protection grade: IP52
Size: 142mm(W)*46mm(H)*55mm(D)

Shanghai PAD Automatic Doors Technology Co., Ltd. is a company (manufacturer) established in 2003, located near the Hongqiao airport, Shanghai, China.

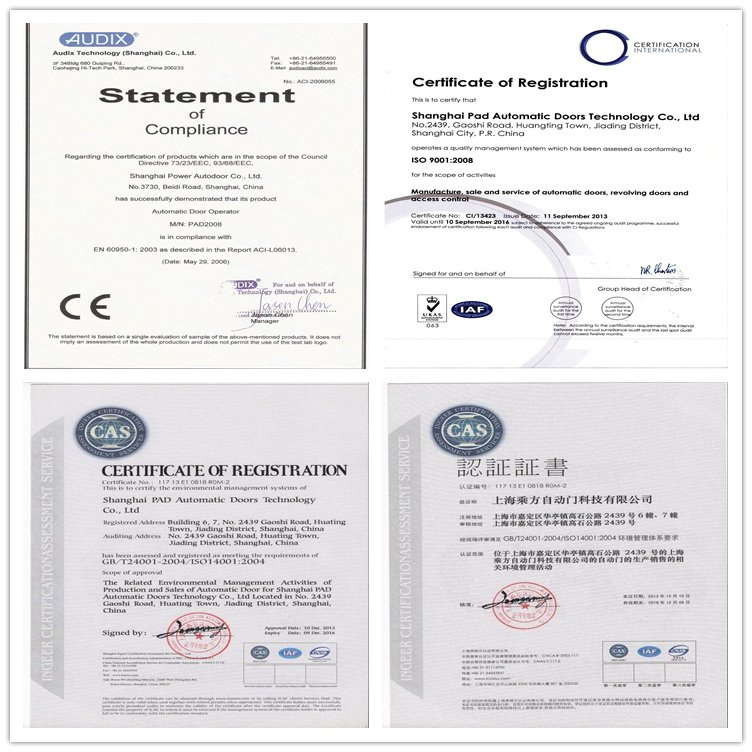

With CE and ISO9001: 2000 certificates, the company integrates Italian automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.

Today PAD products are widely adopted in 89 countries or regions around the world, and more and more customers are joining us. For someof them we provide OEM service, and for some more we deliver the goods with PAD as our common brand.

Our main products include:
A. Automatic sliding door operator
B. Automatic revolving door systems.
C. Automatic roller motors.
D. Accesories for autoamtic door industry.

Our products are mainly used in restaurants, hotels, clubs, government buildings, offices, factories, shops, residential areas, military zones, etc.

As the society develops, our products are also progressing with the times. Sincerely hope we can provide our services for more cusotmers around the world.

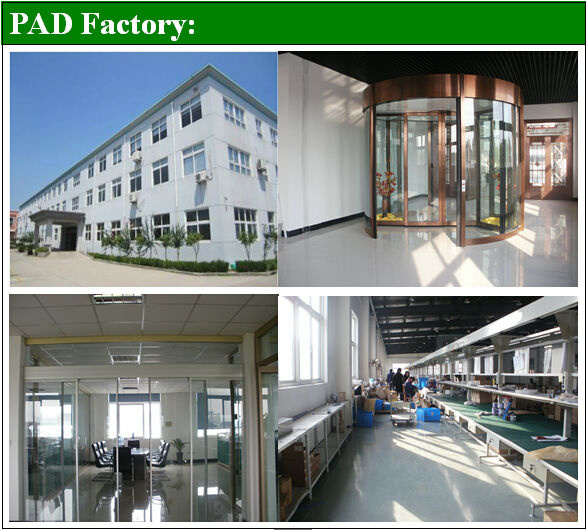

Welcome you to have a visit to our factory!
