Dust Proof IP67 Power Connector/LED Lighting Connector

Name: Dust Proof IP67 Power Connector/LED Lighting Connector
Brand: all-electronics-online.com
SKU: 791393355
Availability: InStock
Rating: 4.6 (120 reviews)

Price:	US $ 5.2/Set
Min Order:	100/Set
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-20-C03PE-01-001&LP-20-J03PP-01-001
MOQ:	100sets
Certification:	UL, Ce, RoHS, CCC, ISO9001
Cable Specification:	2.5mm-4mm2/14-12AWG
Diameter Range:	Od8-12mm
Rated Current:	20A
Gender:	Male
Application:	PCB

Product Description

dust proof IP67 power connector/led lighting connector

Product Description

1.LED screen / LED lighting
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. wire connector
LP series electrical connectors IP65/IP68
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
3.gold-plated contact, high performance of corrosion resistance and
4.electrical conductivity effectively deal with temperature rise.
5.PBT shell performance stable, compression, anti-explosion and anti-deformation
6.rated current: 20A rms
7.protection level:IP65/IP68

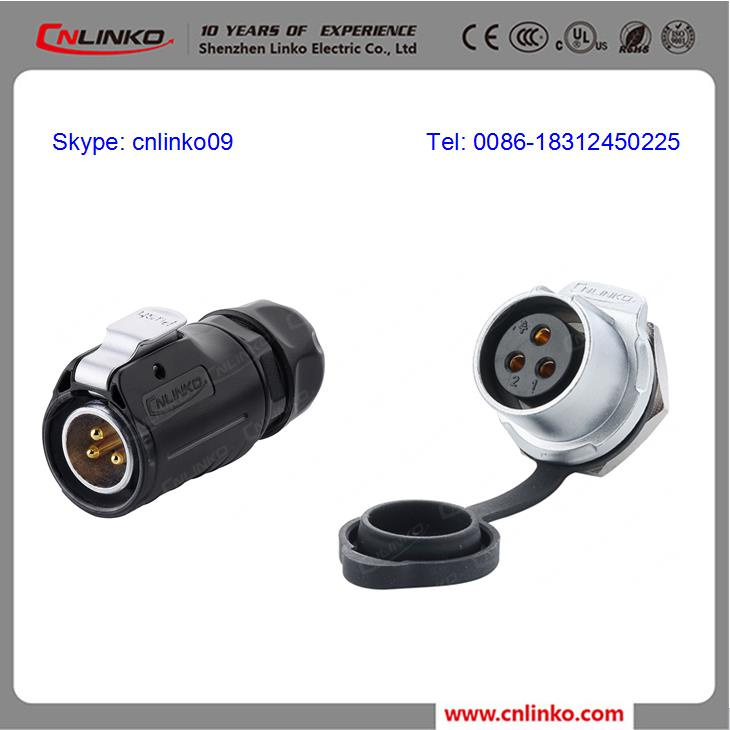

LP-20-CJ03E-01-001 plug &socket
Specifications:
Connecting mode:	PLUG /UNPLUG
Protection level:	IP65/IP68
Cable specification:	2.5mm2 ~ 4 mm2 /14~12 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.7×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Shipping&Payment term

Packaging: 10pcs/small box, 240pcs/master box
Shipping: by express, by sea, by air
Payment term: T/T, Western union, paypal

Contact Information:

Eunice Tan (sales manager)
TEL:0086-0755-86960323 FAX:0086-0755-86960305
H.P:+86-18312450225 /15013650758
Website:http://www.cnlinko.com

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
