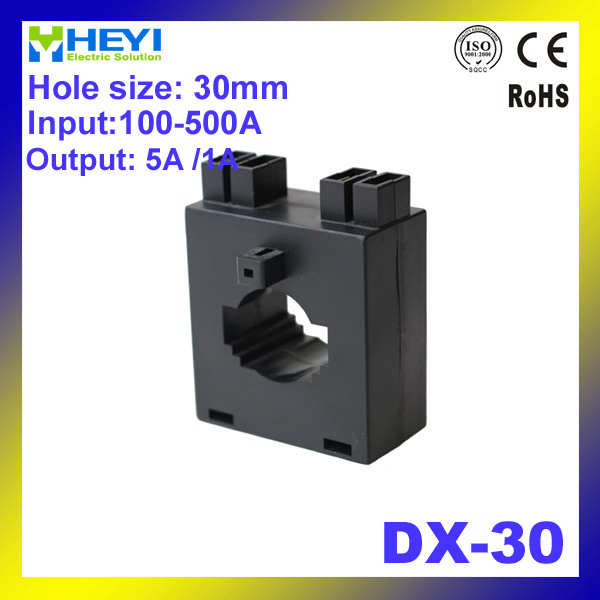

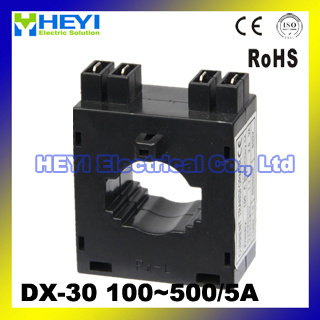

(DX-30) Mini Distribution Electric Current Transformer with CE Approve

(DX-30) Mini Distribution Electric Current Transformer with CE Approve
Price: US $ 1-2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: DX-30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black
Coil Structure: Toroidal
Certificate: CE
Window Size: 30mm
Application: Instrument
Type: Current Transformer
Phase: Single

Product Description

Current Transformer for Measurement of Energy,Current and Relaying Protection in Low-Voltage Switchger !

Indoor Application !

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:

50A-1000A
5A,1A
VDE0414,BS7626,IEC60044-1
0.72/3KV
50-60Hz
1.5VA,2.5VA,5VA,10VA
0.5,1.0
Ith=60×Ih
FS<5


Maximum voltage:
Frequency:
Class:
Short-time thermal current:
Mounting methods:
Window dimensions
0.66KV
50-60Hz
1.0
Ith=60Ih
either by din rail (35mm) or by screws
diameter 22mm (DX-20,DX-20L)
31×10mm (DX-30,DX-30L)
41×10mm (DX-40)

Technical data & Specification:

Model
Primary/
secondary
Busbar Hole
Dimension
(MM)
Rated
Burden
(VA)
ClassRated
Voltage
DX-2050/5A-150/5Aφ=20mm1.5-2.51.0660V
DX-30100/5A-500/5A30×10mm1.5-2.51.0660V
DX-40150/5A-1000/5A40×10mm3-101.0660V
DX-20L50/5A-150/5Aφ=20mm1.5-2.51.0660V
DX-30L100/5A-500/5A30×10mm1.5-2.51.0660V

Dimension of case (mm):

Model
ABCDE
DX-205328576654
DX-305328576654
DX-407145738165
DX-20L5328576654
DX-30L5328576654


We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
