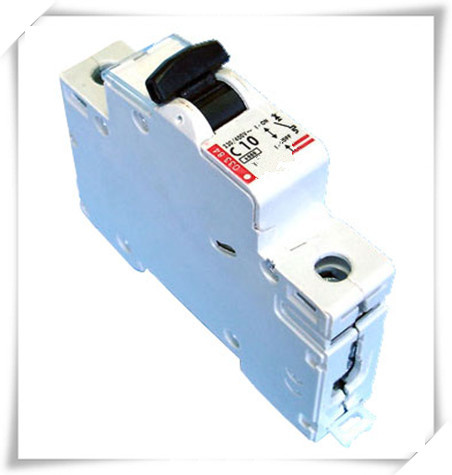

Dx-Dpn MCB Mini Circuit Breaker 1p

Name: Dx-Dpn MCB Mini Circuit Breaker 1p
Brand: all-electronics-online.com
SKU: 705523455
Availability: InStock
Rating: 4.9 (107 reviews)

Price:	US $ 1.08/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JWL-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Oil-immersed Type
Installation:	Insert
Poles Number:	1
Certification:	CE
Structure:	Moulded Case Circuit Breaker
Type:	Circuit Breaker
Function:	Overcurrent Protection

Product Description

Specifications
1, circuit breaker
2, Rated current: 1A~63A
3, Certificate: CE, CB, Semko
4, Standard: IEC/EN60898

Mini Circuit Breaker is applicable to circuit with rated voltage up 400V AC, rated frequency 50/60Hz and rated current up to 63A for protection and control of circuit against overload and short circuit in commercial, household and electric equipment installation. The product is suitable for non-frequently making and breaking operation.

Basic specification and main parameters
Frame class 63A
Rated working voltage 240V/415V
Rated frequency: 50/60Hz
Rated working current: 1, 3, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Making and breaking capacity
6000A(6~40A), 4500A(50, 63A)

Specification

Electrical features	Rated current In	A	6A,10A 16A 20A 32A 40A, 50A, 63A
	Poles	P	1.2.3.4
	Rated voltage Ue	V	240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	6000, 10000
	Rated impulse withstand voltage (1.2/50) Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	8000
	Mechanical life	t	20000
	Protection degree		IP20
	Reference temperature for setting of thermal element	°C	30
	Ambient temperature (with daily average≤35°C)	°C	-5~+40 (special application please refer to temperature compensation correction)
	Storage temperature	°C	-25~+70

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
