Gl Gt Terminal Lug Electric Power Fitting

Name: Gl Gt Terminal Lug Electric Power Fitting
Brand: all-electronics-online.com
SKU: 767153285
Availability: InStock
Rating: 4.7 (104 reviews)

Price:	US $ 0.014-0.015/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Jwl

Product Description

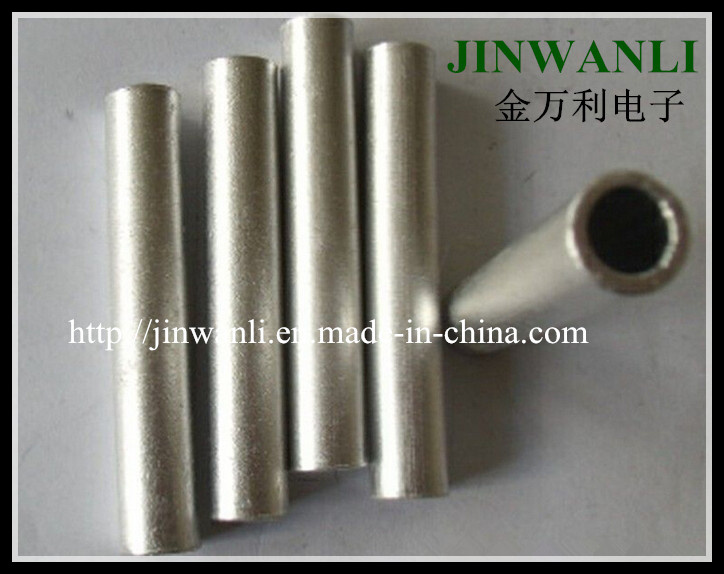

GL Aluminium connector is suitable for the connection of aluminium conductors (section 16-400mm2) in power cable with electronic equiment.This type of aluminium connector is with separate in the middle and used for oil plug.They are made of higher quality L3 aluminium tube.

Specifications

1) Application: transition connection ofcircular or hemicycle aluminum wires, power cable with copper terminals in electeical equipment
2) Material: GT series hole-passing connection tube: T2 Copper bar;
GL series hole-passing tube: L3 Aluminum bar
3) Certificate: ISO9001-2008
4) Manufacturer: price advantage and quick delivery

Dimension

Item No	Dimension(mm)
Item No	DΦ	dΦ	L
GL-G1-10	9	5	52
GL-G1-16	10	6	56
GL-G1-25	11	7	62
GL-G1-35	12	8	67
GL-G1-50	15	10	76
GL-G1-70	17	11	87
GL-G1-95	19	13	92
GL-G1-120	21	15	98
GL-G1-150	23	17	108
GL-G1-185	25	19	114
GL-G1-240	28	21	118
GL-G1-300	34	24	135

Item No.	Cable spec(mm2)	Dimensions(mm)				Note
Item No.	Cable spec(mm2)	D	d	L1	L	Note
GL16	16	10	6	30	65	(1) Can be produced according to customer's drawings.
GL25	25	12	7	32	70
GL35	35	14	8.5	34	75
GL50	50	16	10	35	80
GL70	70	18	11.5	42	90
GL95	95	21	13.5	43	95
GL120	120	23	15	47	100
GL150	150	25	16.5	49	105
GL185	185	27	18.5	50	110
GL240	240	30	21	55	120
GL300	300	34	23	60	130
GL400	400	38	27	65	140

GL Aluminium connector,tube cable connector / GL Aluminium connector,tube cable con

Packaging Detail:	Our normal packing is 100/50 PCS per bag,one bag in a box,carton outside Standard carton: 373718MM,one carton packing 24000PCS We also can pack quantity as customers' requirement, including the special design bag,box and cartons
Delivery Detail:	Small order 10 days,big order whthin 25 days
