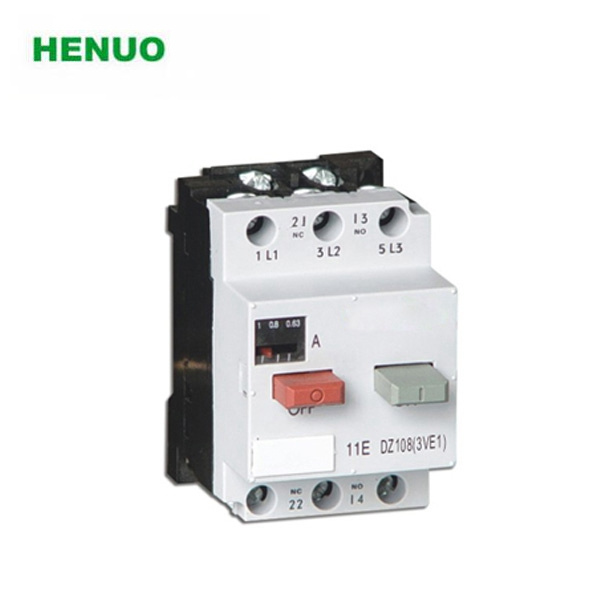

Dz108-1 (3VE1) Motor Protective Circuit Breaker MPCB
| Price: |
US $ 24/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DZ108-1(3VE1) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Gv2-Me; Gv2-M; Gv2-RS; RV2-Ls;Gv2 |
| Poles Of Number: |
3 or 4 |
| Colour: |
White |
| Size: |
Mini |
| Rated Voltage: |
660V |
| Rated Current: |
20A 32A 63A |
| Place Of Origin: |
Zhejiang, China (Mainl |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Arc-extinguishing Medium: |
MPCB |
| Installation: |
DIN Rail Installation |
Product Description
Specifications
1. Voltage: Up to 660V AC 50/60Hz
2. Current: 0.1-63A
3. Number of pole: 3 Pole
1. Specification
3VE1(DZ108) is suitable in AC circuit of 50Hz or 60Hz, voltage up to 660V and current up to 0.1-63A and used toprevent small capacity motor and circuit from overload and short circuit and also used as direct starter forstarting the motor and a switch for changeover the circuit under normal conditions.
Motor protection circuit breaker series:
MPCB, motor protecting circuit breaker, circuit breaker, breaker, 3VE1, 3VE3, 3VE4, GV1, GV2, GV3, GV2-M, GV2-ME, GV2-RS, GV2-LS, GV2-LE, GV2-MC, GV4, GV2-P, GV3-M, GV3-ME, 3VU13, 3VU16, 3VF1
| Type | Standard power rating of 3-phase motors 50/60Hz in category AC-3 |
Current
Setting range
(A)
|
| 220V | 380V | 415V | 440V | 500V | 660V |
| KW | KW | KW | KW | KW | KW |
| GGV1-M01 | - | - | - | - | - | - | 0.1-0.16 |
| GGV1-M02 | - | - | - | - | - | - | 0.16-0.25 |
| GGV1-M03 | - | - | - | - | - | - | 0.25-0.4 |
| GGV1-M04 | - | - | - | - | - | 0.37 | 0.4-0.63 |
| GGV1-M05 | - | - | - | 0.37 | 0.37 | 0.55 | 0.63-1 |
| GGV1-M06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GGV1-M07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GGV1-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GGV1-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6 |
| GGV1-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GGV1-M20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10-16 |
| GGV1-M21 | 5.5 | 10 | 9 | 9 | 11 | 15 | 16-20 |
| GGV1-M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| GGV2-M01 | - | - | - | - | - | - | 0.1-0.16 |
| GGV2-M02 | - | - | - | - | - | - | 0.16-0.25 |
| GGV2-M03 | - | - | - | - | - | - | 0.25-0.4 |
| GGV2-M04 | - | - | - | - | - | 0.37 | 0.4-0.63 |
| GGV2-M05 | - | - | - | 0.37 | 0.37 | 0.55 | 0.63-1 |
| GGV2-M06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GGV2-M07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GGV2-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GGV2-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
| GGV2-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GGV2-M16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9-14 |
| GGV2-M20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13-18 |
| GGV2-M21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17-23 |
| GGV2-M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| GGV2-M32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24-32 |
| GGV3-M06 | - | 0.37 | - | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GGV3-M07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GGV3-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GGV3-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6 |
| GGV3-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GGV3-M20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10-16 |
| GGV3-M25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16-25 |
| GGV3-M40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25-40 |
| GGV3-M63 | 15 | 30 | 33 | 33 | 40 | 55 | 40-63 |
| GGV3-M80 | 22 | 40 | 45 | 45 | 55 | 63 | 56-80 |
