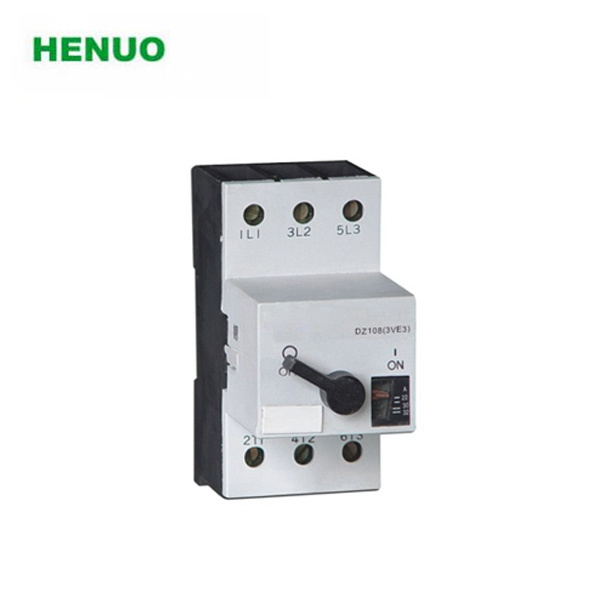

Dz108-1 (3VE3) Motor Protective Circuit Breaker MPCB
| Price: |
US $ 19-22/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DZ108-1(3VE3) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Gv2-Me; Gv2-M; Gv2-RS; RV2-Ls;Gv2 |
| Poles Of Number: |
3 or 4 |
| Rated Voltage: |
up to 660V |
| Rated Current: |
0.1 to 63A |
| Number Of Pole: |
3 Pole |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Arc-extinguishing Medium: |
MPCB |
| Installation: |
DIN Rail Installation |
Product Description
Specifications
1. Rated Voltage up to 660V
2. Rated current: 0.1 to 63A
3. Number of pole: 3 Pole
4. Motor Protection Circuit Breaker
1. Application
DZ108(3VE)series moulded case circuit breaker(MCCB) is suitable in AC circuit of 50Hz or 60Hz, voltage up to 660V and current up to 0.1-63A and used toprevent small capacity motor and circuit from overload and short circuit and also used as direct starter forstarting the motor and a switch for changeover the circuit under normal conditions.
2. Specification
| Type | DZ108-1(3VE1) | DZ108-3(3VE3) | DZ108-4(3VE4) |
| Poles | 3 | 3 | 3 |
| Rated current (A) | 20 | 32 | 63 |
| Rated voltage (V) | 660 | 660 | 660 |
| Rated insulation voltage (V) | 660 | 750 | 750 |
| Current setting voltage (V) | 0.1~0.16 0.16~0.2 5 0.25~0.4 0.4~0.63 0.63~1 1~1.6 1.6~2.5 2~3.2 2.5~4 3.2~5 4~6.3 5~8 6.3~10 8~12.5 10~16 14~20 | 1~1.6 1.6~2.5 2.5~4 4~6.3 6.3~10 8~12.5 10~16 12.5~20 16~25 22~32 | 6.3~10 10~16 16~25 22~32 28~40 36~50 45~63 45~56 |
| Power of controlled motor (KW) | 220V | 5.5 | 9 | 18 |
| 380V | 10 | 16 | 32 |
| 660V | 13 | 26 | 58 |
| Mechanical life(1×10 4 ) | 10 | 10 | 3 |
| Protective feature | 1.05le | Not act within 2hrs |
| 1.2le | Act within 2hrs |
| 12le | Action snap |
