Jbk5 11kv 380/220V High Quality Low Voltage Transformer Step Down Transformer

Name: Jbk5 11kv 380/220V High Quality Low Voltage Transformer Step Down Transformer
Brand: all-electronics-online.com
SKU: 797336245
Availability: InStock
Rating: 4.8 (89 reviews)

Price:	US $ 11-13/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	step down transformer
Application:	Electronic
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Tengen

Product Description

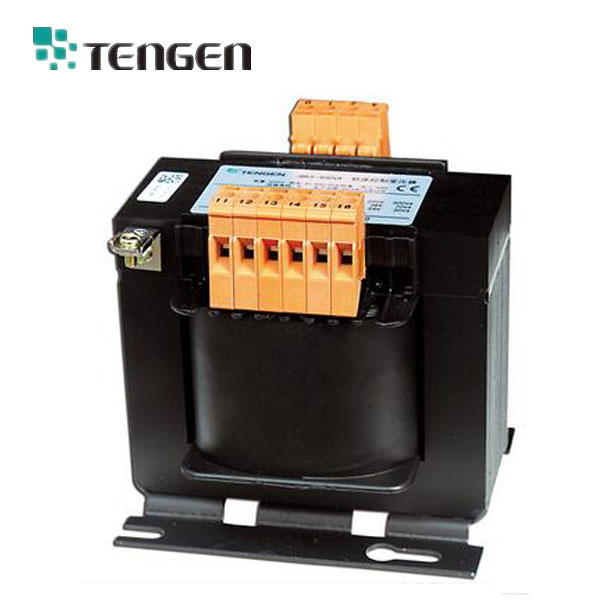

1, JBK series Industrial Control Low voltage Transformer

Product Description

JBK series 220V Industrial Control Low voltage transformer comprehensive used in AC 50-60HZ, where Input, output voltage not over than 1000V. The JBK 220V Industrial is commonly used in machine tool working as local lighting, power of indicator light or the machine control electric appliance.

Feature:

1.Phase: Single Phase

2.Voltage: 220V

3.Current:40A,63A,160A,250A,400A,500A,630A,800A,1000A,1600A,2500A

Model and Meaning

Working conditions

1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;

2.Altitude for installing place should not exceed 2000m;

3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.

Technical Data

Type	Rated capacity(VA)	Rated input voltage(V)	Rated output voltage(V)
Type	Rated capacity(VA)	Rated input voltage(V)	Control	Illumination	Indication
JBK3-40	40	220±5% 380±5%	110(127)	24(36)	6(12)
JBK3-63	63
JBK3-100	100
JBK3-160	160
JBK3-250	250
JBK3-400	400
JBK3-630	630
JBK3-1000	1000		Distribution of capacity for different winding may according to the user's request.
JBK3-1600	1600
JBK3-2500	2500

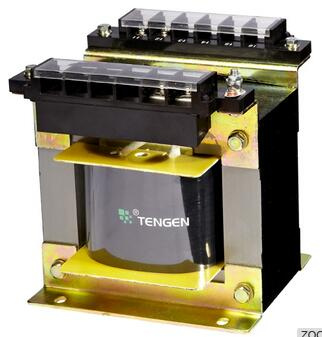

2, BK series transformer

Product Description

BK series 12v to 220v transformer comprehensive used in AC 50-60HZ, where input, output voltage not over than 660V. BK series 12v to 220v transformer is commonly used in machine tool working as local lighting, power of indicator light or the machine control electric appliance.

Technical Data:

Capacity (VA)	Primary voltage (v)	Second voltage(v)	BK series			JMB series
Capacity (VA)	Primary voltage (v)	Second voltage(v)	overall dimension (max) B x D x H(mm)	Installation dimension A x C(mm)(±1.5)	Installation hole size	Overall dimension(max) B x D x H(mm)
25	220 380	6 12 24 36 110 127 220 380	82x72x93	56x72	5x9	152x162x126
50			82x72x93	56x72	5x9	152x162x126
100			86x86x100	51x61	5x9	152x162x126
150			103x97x112	76x70	5x9	162x180x137
200			105x108x112	76x78	5x9	162x180x137
250			127x100x135	90x76	6x10	182x220x157
300			127x105x135	90x82	6x10	182x220x157
400			154x122x153	110x76	6x10	207x237x177
500			154x134x153	110x86	6x10	207x237x177
700			154x156x164	110x107	6.5x10	220x294x187
1000			154x156x164	110x107	6.5x10	220x294x187
1500			195x200x240	130x108	9x25	262x340x227
2000			195x220x240	1320x128	9x25	262x340x227
2500			195x260x240	130x158	9x25	262x370x242
3000			295x260x240	130x158	9x25	262x370x242
4000			350x250x345	210x134	11x20	386x312x414
5000			305x250x345	210x134	11x20	386x312x414

Working condition:

1. Ambient air temperature: -5 degree ~+45 degree, the highest monthly mean temperature should not exceed +30°C;

2. Altitude for installing place should not exceed 2000m;

3. When the ambient air temperature is +40°C, the relative humidity should not exceed

50% and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.

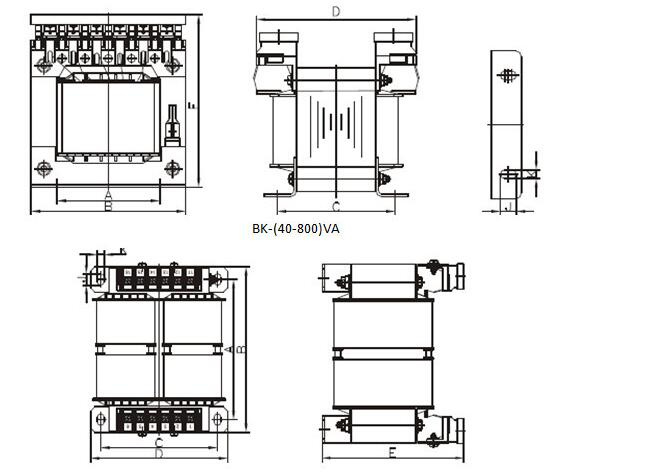

Overall and Installation Dimension

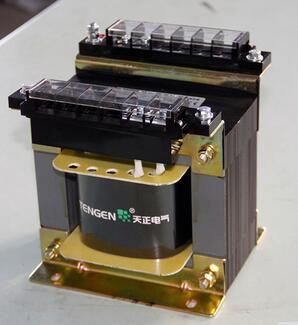

Product Show

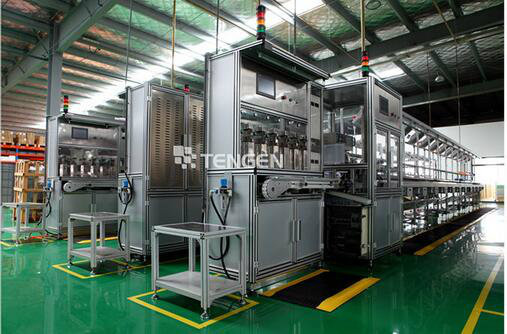

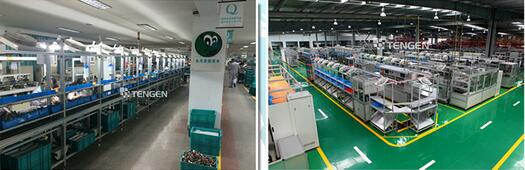

Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.

From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:

1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.

2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.

3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.

4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on

5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on

Internationalization standard quality guarantee system:

The product quality of Tengen Group has been strictly controlled in each working procedure,

Many kinds of internationalization standard quality guaranteed system can be highly effective

Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently

Make sure of our product quality.

"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American

FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management

System authentication, CCC authentication, European Union CE safe Authentication, American UL

Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first

Side laboratory -- low voltage electric appliance test center which is the first connected with

International in China.

We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
