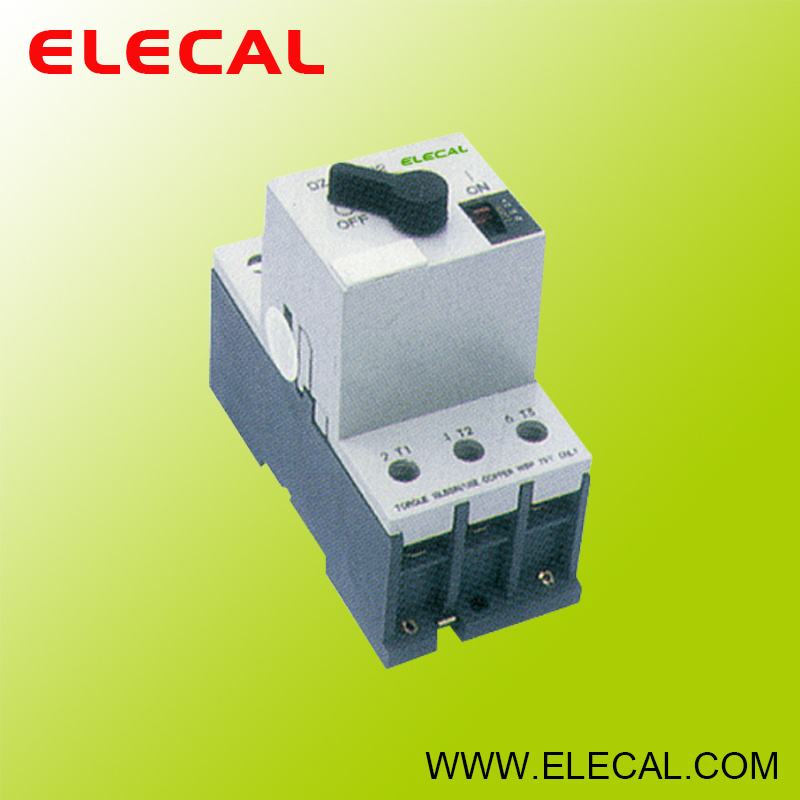

Dz108 Motor Protection Circuit Breaker

Name: Dz108 Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 765488195
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ108
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

DZ108 is suitable in AC circuit of 50Hz or 60Hz, voltage up to 660V and current up to 0.1-63A and used toprevent small capacity motor and circuit from overload and short circuit and also used as direct starter forstarting the motor and a switch for changeover the circuit under normal conditions.

Specification
Type		DZ108-1	DZ108-3	DZ108-4
Poles		3	3	3
Rated current (A)		20	32	63
Rated voltage (V)		660	660	660
Rated insulation voltage (V)		660	750	750
Current setting voltage (V)		0.1~0.16 0.16~0.2 5 0.25~0.4 0.4~0.63 0.63~1 1~1.6 1.6~2.5 2~3.2 2.5~4 3.2~5 4~6.3 5~8 6.3~10 8~12.5 10~16 14~20	1~1.6 1.6~2.5 2.5~4 4~6.3 6.3~10 8~12.5 10~16 12.5~20 16~25 22~32	6.3~10 10~16 16~25 22~32 28~40 36~50 45~63 45~56
Power of controlled motor (KW)	220V	5.5	9	18
	380V	10	16	32
	660V	13	26	58
Mechanical life(1×10⁴)		10	10	3
Protective feature	1.05le	Not act within 2hrs
	1.2le	Act within 2hrs
	12le	Action snap
