Dz47-63/C45 Miniature Circuit Breaker- MCB with Competitive Price

Name: Dz47-63/C45 Miniature Circuit Breaker- MCB with Competitive Price
Brand: all-electronics-online.com
SKU: 821384025
Availability: InStock
Rating: 4.6 (88 reviews)

Price:	US $ 0.6-2/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47-63 C10
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

APPLICATION

DZ47-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is neoteric in structure light in weight, reliable and excellent in performance .Its frame and parts adopt plastics of high fire resistant nnd shockproof. The product overload dnd short circuit protection, as well as for unfreqnendy switching on&of electric equipment and lighting circuit in normal case. The products comply with IEC60898.

SPECIFICATION

Setting temperature of protective characteristics at 400C

Rated Voltage:240V/415V

Rated Current:1,3,6,16,20,25,32,40,50,63A

Electrical life:no less than 6000 operations

Mcchanical lifc:(O-C)on lcss than 20000

Rated making and breaking capacity

DZ47-63(C)

Rated currcnt(A)	Pole number	Voltage(V)	Brcaking capacity
1-40	1P	230	4500
1-40	2P,3P,4P	400	4500
50-60	1P	230	3500
50-60	2P,3P,4P	400	3500

DZ47-63(D)

Rated currcnt(A)	Pole number	Voltage(V)	Brcaking capacity
1-40	1P	230	4000
1-40	2P,3P,4P	400	4000

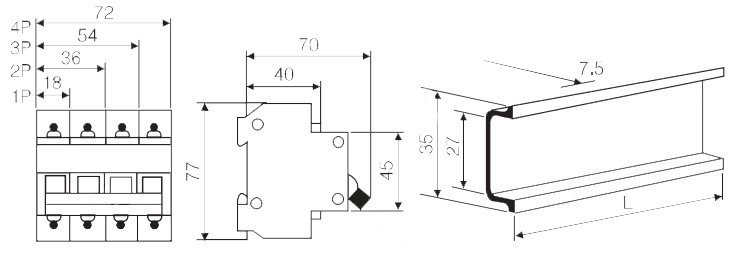

DIMENSIONS(mm)

Yueqing Fanrong Electrical Co., Ltd lies in Wenzhou City, which is called as the capital of the low voltage electrical appliance of China, it is very convenient for transportation.

We are one of the best manufacturers and exporters in Liushi, China and specialize in manufacturing various low voltage electrical products, such as mini circuit breaker, isolator switches, hydraulic magnetic circuit breaker, lighting arrestor and so on. They are sold in worldwide market with fashionable design and favorable price.

In near, our company continued adopts international advanced technology and updating our products, have owned advanced equipment of production, inspection and experiment, powerful technical force and network system of sales, services all over the world. We adhere to the guide of market and the principle of living on quality, developing on credit. We wish to make friends with all over the world to expand our products market and to create a brilliant tomorrow together with out customer.
