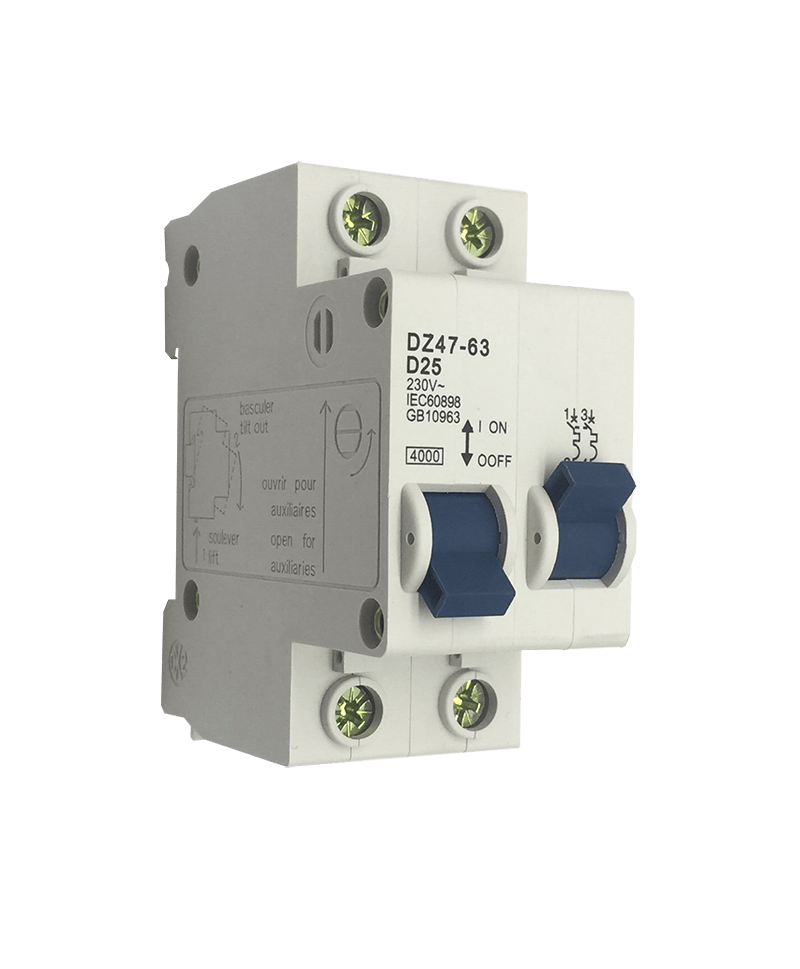

Dz47 Double Power Interlock Circuit Breaker-MCB

Name: Dz47 Double Power Interlock Circuit Breaker-MCB
Brand: all-electronics-online.com
SKU: 821428465
Availability: InStock
Rating: 4.6 (65 reviews)

Price:	US $ 1.2-5.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47-63
Handle Colour:	as Customer's Requirements
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CCC
Poles Number:	(1p+1p),(2p+2p),(3p+3p),(4p+4p)

Product Description

APPLICATION
DZ47-63 series Double power interlock circuit breaker. The function add a interlocking based on the original DZ47-63 miniature circuit. It means that when one of the pole is opend, then another one must be closed to achieve the function of changing the power, overload protection, shot circuit protection and so on. It's usually used in Manostat.

STRUCTURE
Double power circuit breaker consist of the shell, operating mechanism, thermal release, electromagnetic release contact system, arc system, etc., With overload and short circuit protection. The design of a unique structure so that products with 6KA short-circuit capability, mechanical life of more than 20000 times. And has the following characteristics: an increase of interlocking function, means, when the side of the circuit breaker is turned on, the other side of the circuit breaker can only be kept off, to achieve line changing and other protection. The pole of product has many combination method like 1P+1P, 2P+2P, 3P+3P, 4P+4P.

SPECIFICATION

DZ47-63(C)

Rated currcnt(A)	Pole number	Voltage(V)	Brcaking capacity
1-40	1P	230	4500
1-40	2P,3P,4P	400	4500
50-60	1P	230	3500
50-60	2P,3P,4P	400	3500

DZ47-63(D)

Rated currcnt(A)	Pole number	Voltage(V)	Brcaking capacity
1-40	1P	230	4000
1-40	2P,3P,4P	400	4000

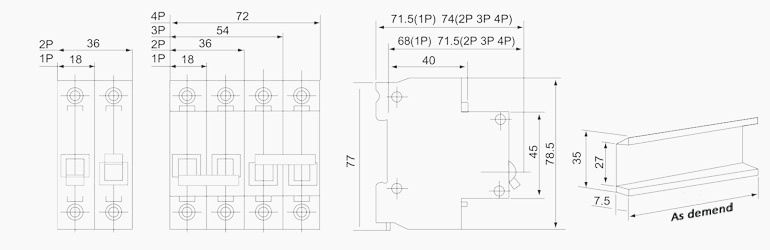

DIMENSIONS(mm)
