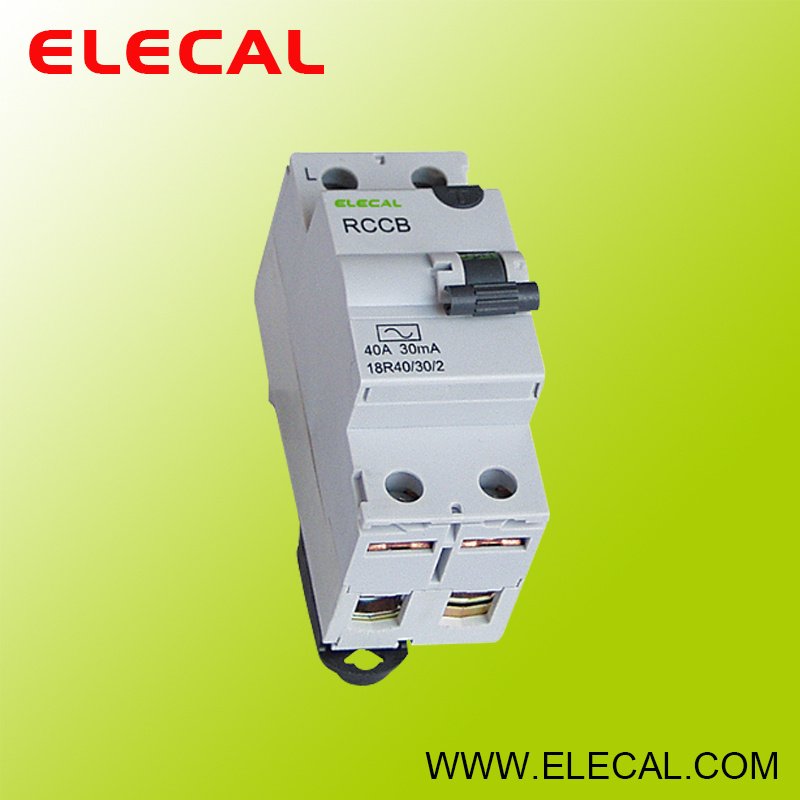

Dzl8 Residual Current Device

Prod Model:	DZL8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Structure:	Moulded Case Circuit Breaker

Product Description

1.Application
The Residual Current Device DZL8 is in conformity with the standard of IEC61008. It can cutoff the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.TSL8 RCD ismainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce,guesthouses and families. It can be used in circuits of two pole 230V 50 60Hz.

2.Specification

Type	DZL8
Number of Poles	2P, 4P
Rated Current (A)	16, 20, 25, 40, 50, 63
Rated Residual Operating Current (In)(mA)	30, 100, 300
Rated Residual Non-operation Current (Ino)(mA)	≤0.5In
Rated Voltage (V)	AC 230
Residual Current Off-time	≤0.1S
Short-circuit Capacity (Icu)	3000A
Endurance(times)	≥4000
Protection Degree	IP20
