E-Glass Braided Fire Sleeve with High-Grade Silicone Rubber

Name: E-Glass Braided Fire Sleeve with High-Grade Silicone Rubber
Brand: all-electronics-online.com
SKU: 784535295
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	US $ 1.52/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	25/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EFS-16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	4mm to 152mm
Standard Packaging:	25meters
Temperature:	Continue *1750°c Intermediate
Application:	Switch Baseplate
Type:	Insulation Sleeve
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	250 250
Maximum Voltage:	10KV~20KV
Brand:	Hong Tai

Product Description

Description:

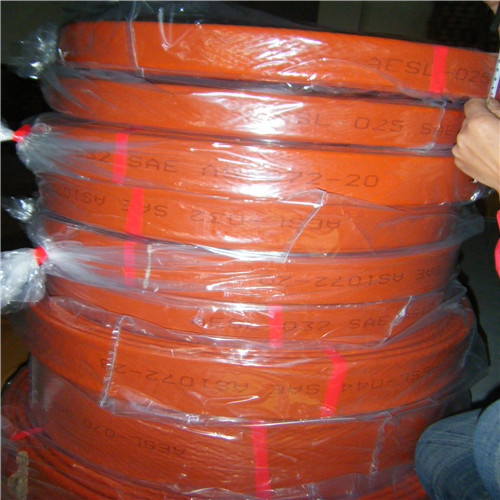

Hongtai Firesleeve is manufactured by coating an E-glass braided sleeve with high-grade silicone rubber, typically in iron-oxid red color, other colors could be customized. Firesleeve is called pyrojacket and fire sleeving too. It is flexible, insulated, harmless to health and resists intense radiant heat, abrasion, oil and moisture etc. with continuous working temperature at 260ºC(500° F) and short time withstanding exposure to max 1650ºC(3000°F ).

Application:
Hongtai firesleeve is a high temperature heat protection solution and perfect for hydraulic hose protection,protecting pneumatic lines, electrical cables, control wiring, welding cables, electric arc furnace cables etc. from intense radiant heat, flame exposure, molten metal splash, slag, welding splatter, grinding, electrical sparks and other hazards in the toughest of industrial environments.
It's widely used in metallurgy, steel mills, glass work, marine industry, petrochemical industry etc. on a variety of machines, engines and hydraulic equipment etc.order now

Specification:

Inner Dia. (mm)	ID hose dash std	part number	Roll length (meter)
Φ10	-6	M-01-10	20
Φ12	-8	M-01-12	20
Φ15	-10	M-01-15	20
Φ20	-12	M-01-20	20
Φ25	-16	M-01-25	20
Φ30	-18	M-01-30	20
Φ35	-22	M-01-35	20
Φ40	-24	M-01-40	20
Φ45	-28	M-01-45	15
Φ50	-32	M-01-50	15
Φ55	-34	M-01-55	15
Φ60	-38	M-01-60	15
Φ65	-40	M-01-65	15
Φ70	-44	M-01-70	15
Φ75	-48	M-01-75	15
Φ80	-50	M-01-80	15
Φ85	-54	M-01-85	15
Φ90	-56	M-01-90	15
Φ100	-64	M-01-100	15
Φ120	-76	M-01-120	15
Φ130	-80	M-01-130	15

Inside Dia. (inch)	ID hose dash std	part number	Roll length (foot)
3/8	-6	M-01-10	100
1/2	-8	M-01-12	100
5/8	-10	M-01-15	100
3/4	-12	M-01-20	100
1	-16	M-01-25	100
1 1/8	-18	M-01-30	100
1 3/8	-22	M-01-35	100
1 1/2	-24	M-01-40	100
1 3/4	-28	M-01-45	100
2	-32	M-01-50	100
2 1/8	-34	M-01-55	49
2 3/8	-38	M-01-60	49
2 1/2	-40	M-01-65	49
2 3/4	-44	M-01-70	49
3	-48	M-01-75	49
3 1/8	-50	M-01-80	49
3 3/8	-54	M-01-85	49
3 1/2	-56	M-01-90	49
4	-64	M-01-100	49
4 3/4	-76	M-01-120	49
5	-80	M-01-130	49

Anji Hongtai Insulation Co., Ltd. Specializes in manufacturing insulation braiding sleeving with the production capacity of 5 containers monthly. We have 3, 000 sets of braiding machines and 4 coating product lines.

Our main products are fiberglass sleeving coated silicone rubber and other products including acrylic fiberglass sleeving, PU fiberglass sleeving, HT fiberglass sleeving, heat & flame resistant braided fiberglass sleeve, ceramic-fiber sleeving, carbon fiber sleeving, basaltic fiber sleeving and fire sleeve. Our products are mainly exported to Occident and Southeast Asian developed countries, such as Japan. Our company has been experienced in export for ages.

Now our company has passed the evaluation of the USA BQR ISO9001: 2000 International Quality System Certification and the USA production safety authentication (UL NO.: E467660), and we have also obtained SGS' CTS and PFOS certifications.

We are ABB, GE, HANSAFLEX Packer's gold Supplier.

We have export fiber glass sleeving and fire sleeve Europe and USA 18 years.
