E-Xay2y, Power Cable, 0.6/1 Kv, Al+Cu/PVC/PVC (HD 603)

Prod Model:	E-XAY2Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	0.6/1 Kv
Size Range:	16-240 Mm2
Number Of Cores:	4+1
Class Of Conductor:	2
Voltage:	Low and Medium Voltage Cable
Insulation Material:	XLPE
Current:	DC Cable
Application:	Underground
Certification:	CE
Model:	E-Xay2y
Brand:	Boan
Sheath Material:	HDPE
Wire Core Material:	Aluminum

Product Description

E-Xay2y, Power Cable, 0.6/1 Kv, Al+Cu/PVC/PVC (HD 603)
Underground cable with PVC insulation and HDPE sheath

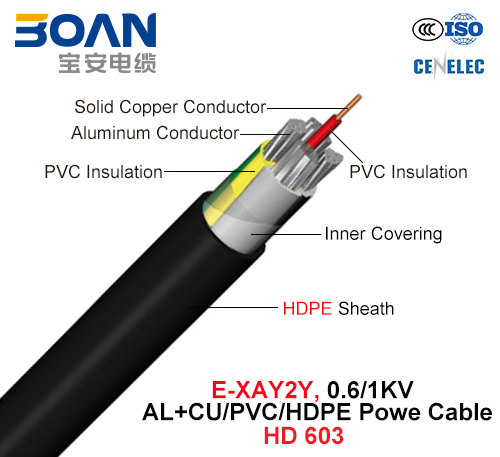

DESIGN
1 | Aluminium conductor, round solid (RE), round stranded (RM), resp. sector-shaped stranded (SM)
2 | Core insulation (PVC)
3 | Signalling core (single copper wire, with red PVC insulation) as central element
4 | Inner covering
5 | Sheath (HDPE black, UV-resistant)


APPLICATION

Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fi xed installation underground, in interior premises, cable ducts, in the open air, in water - as permitted by the local building regulations - under severe mechanical stressing during installation and operation.

TECHNICAL DATA

Standard:
HD 603

Rated voltage:
0.6/1 kV

Test voltage:
4 kV/50 Hz

Temperature range:
laying temperature: min. -5 °C
operating temperature: -50 °C to +70 °C
conductor temperature: max. +70 °C
short-circuit temperature: max. +160 °C/5 s

Bending radius (min.):
12 x ? of cable

Core identifi cation:
HD 308 S2

Number of cores x nominal cross section	Max. conductor resistance	Current rating in the ground	Current rating in the air	Outer diameter	Total weight
(mm²)	(Ω/km)	(A)	(A)	(mm)	(kg/km)
E-XAYY
4 x 16 RE + 2.5 RE	1.910	78	60	21.0	550
4 x 16 RM + 2.5 RE	1.910	78	60	21.4	590
4 x 25 RM + 2.5 RE	1.200	102	82	23.0	900
4 x 35 SM + 2.5 RE	0.868	122	99	24.5	740
4 x 50 SM + 2.5 RE	0.641	144	119	28.0	1,050
4 x 70 SM + 2.5 RE	0.443	179	152	31	1,270
4 x 95 SM + 2.5 RE	0.320	215	186	36	1,690
4 x 120 SM + 2.5 RE	0.253	245	216	40.0	2,120
4 x 150 SM + 2.5 RE	0.206	275	246	43.5	2,470
4 x 185 SM + 2.5 RE	0.164	313	285	50.0	3,120
4 x 240 SM + 2.5 RE	0.125	364	338	55	3,960
