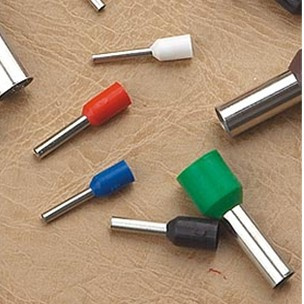

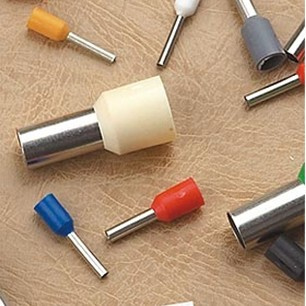

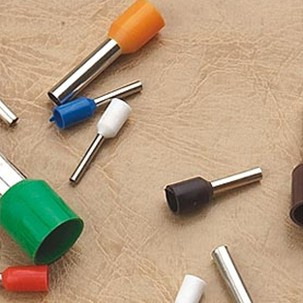

E0506 Insulated Cord End Terminals

E0506 Insulated Cord End Terminals
Price: US $ 0.0135/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Piece
Pay Type: L/C,T/T,D/P
Prod Model: E0506
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sizes Available: All Sizes
Colors Available: All Colors
Package: as Per Customers' Request
Application: Conduct Electricity
Type: Insulated Cord End Terminals

Product Description

E0506 Insulated Cord End Terminals          Terminals   wiring terminals




EM.NO. DIMENSION CLNLE SQ INSULATION COLOR
F(mm) L(mm) W(mm) B(mm) D(mm) C(mm) A.W.G mm 2
E0506 6.0 12.0 2.6 6.0 1.3 1.0 #22 0.5
Oranage

White
E0508 8.0 14.0
E0510 10.0 16.0
E0512 12.0 18.0
E7506 6.0 12.4 2.8 6.4 1.5 1.2 #20 0.75
White

blue
E7508 8.0 14.6
E7510 10.0 16.4
E7512 12.0 18.4
E7518 18.0 24.4
E1006 6.0 12.4 3.0 6.4 1.7 1.4 #18 1.0
Yellow

red
E1008 8.0 14.6
E1010 10.0 16.4
E1012 12.0 18.4
E1508 8.0 14.6 3.5 6.4 2.0 1.7 #16 1.5
Red

black
E1510 10.0 16.4
E1518 18.0 24.4
E2508 8.0 15.2 4.0 7.0 2.6 2.3 #14 2.5
Blue

grey
E2512 12.0 19.0
E2518 18.0 25.0
E4009 9.0 16.5 4.4 7.5 3.2 2.8 #12 4.0
Grey

Oranage
E4012 12.0 19.5
E4018 18.0 25.5
E6012 12.0 20.0 6.3 8.0 3.9 3.5 #10 6.0
Black

green
E6018 18.0 26.0
E10-12 12.0 21.5 7.6 9.5 4.9 4.5 #7 10.0
Milky white

brown green
E10-18 18.0 27.5
E16-12 12.0 22.2 8.8 10.2 6.2 5.8 #5 16.0
Green

Milkty white
E16-18 18.0 28.2
E25-16 16.0 29.0 11.2 13.0 7.9 7.5 #4 25.0
brown green

black
E25-22 22.0 35.0
E35-16 16.0 30.0 12.7 14.0 8.7 8.3 #2 35.0 Greyish brown
E35-25 25.0 39.0
E50-20 20.0 36.0 15.3 16.0 10.9 10.3 #1 50.0 Olive
E50-25 25.0 41.0
