E3f3 Series Photoelectric Sensor Switch

Name: E3f3 Series Photoelectric Sensor Switch
Brand: all-electronics-online.com
SKU: 789583185
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E3F3
Sensing Method:	Diffuse Type
Delection Range:	4m ± 10%
Materials:	Housing:Nickel Plated Brass Detection Surfa
Control Output:	N.P Type: 300mA Below,D Type:200mA Below,a Type:40

Product Description

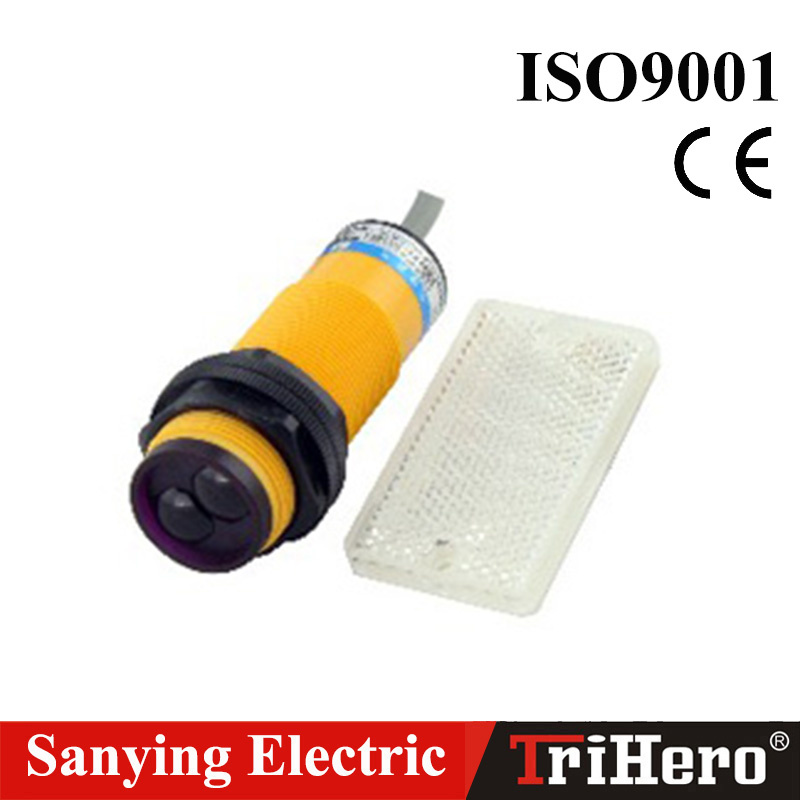

E3F3 series Photoelectric Sensor

Specifications:

Mounting way				Diffuse type
Type	DC type/span>	NPN	NO	E3F3-R4NK
			NC	E3F3-R4N2
			NO+NC	E3F3-R4N3
		PNP	NO	E3F3-R4PK
			NC	E3F3-R4P2
			NO+NC	E3F3-R4P3
		Two-wire	NO
			NC
	AC type	Two-wire	NO	E3F-R4Y1
			NC	E3F-R4Y2
		Three-wire	NO+NC
Delection range				4m ± 10%
Delection range regulation				Sensitivity adjuster
Response frequency				DC:0.5kHz AC:25kHz
Supply voltage				DC type:DC12-24V(6-36V)Impulse AC type:AC110-220V(90-250V)50/60Hz
Withstand voltage				AC 1000V 50/60HZ 1min between charging part and housing
Voltage influence				side ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current				N.P type:13mA below, D type:0.8mA below, A type:1.7mA below below,A type:1.7mA below
Control output				N.P type: 300mA below,D type:200mA below,A type:400mA below
Loop protection				N.P.D type: reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption
mbient temperature & humidity				During operation,storage:individually-30~+65ºC (no freeze,no drew),During operation, storage:individually 35~95%RH
Temperature influence				Temperature range -30-+65ºC,at+23ºC, ±15%detection distance Temperature range -25-+60ºC,at+23ºC, ±10%detection distance
Insulation impedance				50MΩ above(DC500 megameter)between charging part and housing
Material				Housing:Nickel plated brass Detection surface:ABS
Protection level				IP67( IEC specification)

Dimensions:
