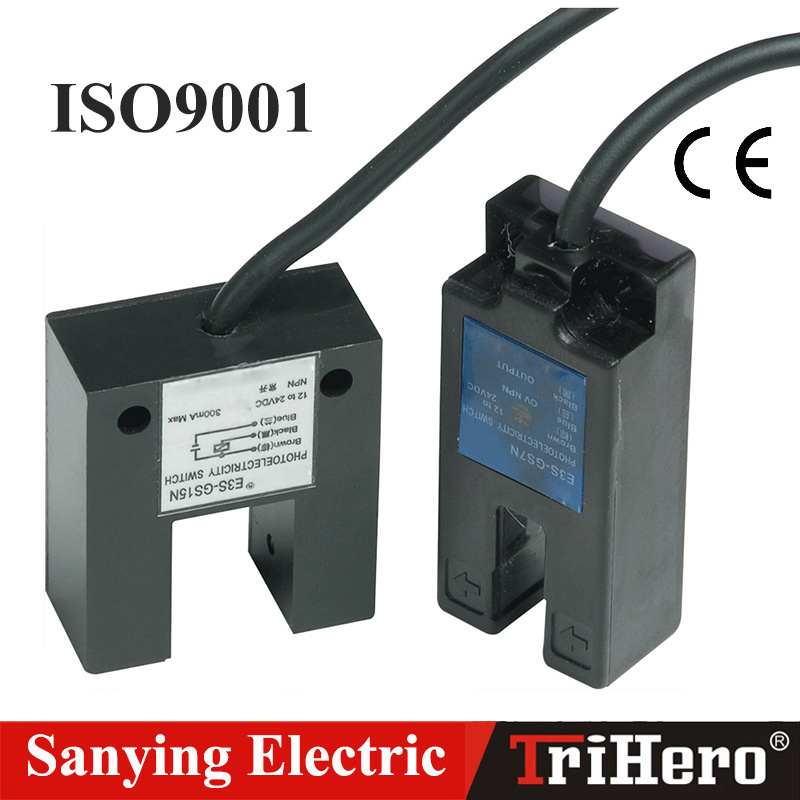

E3s-GS7 Series Photoelectric Switch

Name: E3s-GS7 Series Photoelectric Switch
Brand: all-electronics-online.com
SKU: 789589595
Availability: InStock
Rating: 5 (116 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E3S-GS7
Sensing Method:	Grooved-Type
Delection Range:	7mm
Light Source:	Infrared Light 660nm
Materials:	Housing:Nickel Plated Brass Detection Surfa

Product Description

E3S-GS7 series series Photoelectric Sensor

Specifications:

Sensing method				grooved type
Type	DC type	NPN	NO	E3S-GS7N
			NC	E3S-GS7N2
			NO+NC
		PNP	NO	E3S-GS7P
			NC	E3S-GS7P2
			NO+NC
		Two-wire	NO
			NC
	AC type	Two-wire	NO
			NC
		Three-wire	NO+NC
Delection range				7mm
Delection range regulation				Sensitivity adjuster
ON Time delay				1.5ms
Light source				infrared light 660nm
Supply voltage				DC type:DC12-24V(6-36V)Impulse(p-p)10% below AC type:AC110-220V(90-250V)50/60Hz
Withstand voltage				AC1000V 50/60HZ 1min between charging part and housing
Voltage influence				Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current				N.P type:13mA below, D type:0.8mA below, A type:1.7mA below below,A type:1.7mA below
Control output				N.P type: 300mA below,D type:200mA below,A type:400mA below
Loop protection				N.P.D type: reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption
Ambient temperature & humidity				During operation,storage:individually-30~+65ºC (no freeze,no drew),During operation, storage:individually 35~95%RH
Temperature influence				Temperature range -30-+65ºC,at+23ºC, ±15%detection distance Temperature range -25-+60ºC,at+23ºC, ±10%detection distance
Insulation impedance				50MΩ above(DC500 megameter)between charging part and housing
Material				Housing:Nickel plated brass Detection surface:ABS
Protection level				IP67( IEC specification)
