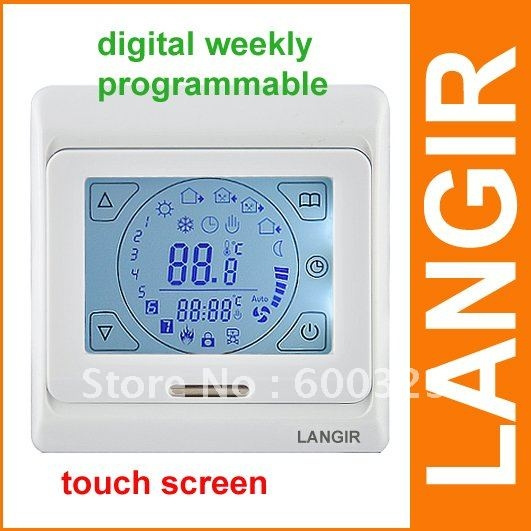

E91 Touch Screen Underfloor Heating Thermostat

Name: E91 Touch Screen Underfloor Heating Thermostat
Brand: all-electronics-online.com
SKU: 764769735
Availability: InStock
Rating: 5 (108 reviews)

Price:	US $ 22/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E91
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized:	Yes
Product Type:	Heating
Brand Name:	Langir
Model Number:	E91
Voltage:	230V 50-60Hz
Max Current:	16A
IP Grade:	IP20
Certification:	CE

Product Description

Introduction
The E91...is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.
The thermostat acquires the actual temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Application
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Features
Touch-screen operating interface
7-day programmable function for energy-saving operation
On/off control output for heating device
Symbol indicator when heating is on
Temperature limitation function for protecting the floor
"Key-lock" function for protecting the setted parameters (especially suitable for Public Places)
Current room temperature displaying when the thermostat is switched-off
Technical data
Voltage: AC230V (AC110V / AC24V available)
Power consumption: 3.5W
Switching differential: ±0.5K
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor, cable length is 3m
