Earth Leakage Circuit Breaker (UKF7)

Name: Earth Leakage Circuit Breaker (UKF7)
Brand: all-electronics-online.com
SKU: 634023205
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	Negotiable
Trade Terms:	As Your Request
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKF7
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

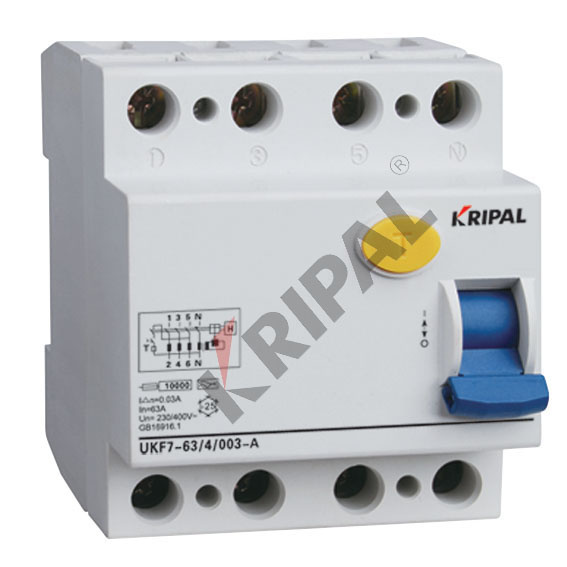

Earth Leakage Circuit Breaker (UKF7)

Number of Poles: 2P, 4P
Rated current(A): 16, 25, 40, 63
Voltage(V): 230/400
Rated leakage current(A): 10, 30, 100, 300, 500mA

Main Feature
1. Bilateral double-functional wiring terminal can connect generarix and single core wire
2. With contactor condition indicator
3. Various current specification of creepage action can easily ensure selective protection
4. For prevention from unexpected trip due to switch operations of electric equipment.

Technology Specification & Electrical Specification
Electric standard	IEC61009; GB 16917.0
Trip time	Non-time delay; least 10ms extent tme
Rated voltage	230V; 50HZ 230V/400V
Rated current	16A, 25A, 40A, 63A
Rated surplus operating current	10; 30; 100; 300, 500mA
Selection grade	3
Maximum connected fuse	100A gL(> 10kA)
Environment capability	According to the IEC 1008 standard
Case protection grade	IP40 after installation
Electric life	Not less than 4000 times of breaking and closing
Mechanical life	Not less than 2000 times of breaking and closing
Mechanical Parameter
Installation mode	Installation at the DIN guide rail of 35mm
Terminal block capacity	Conductor1-25mm2, Generatrix thickness 0.8-2mm
Shell width	2 poles 35mm, 4 pole 70mm

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
