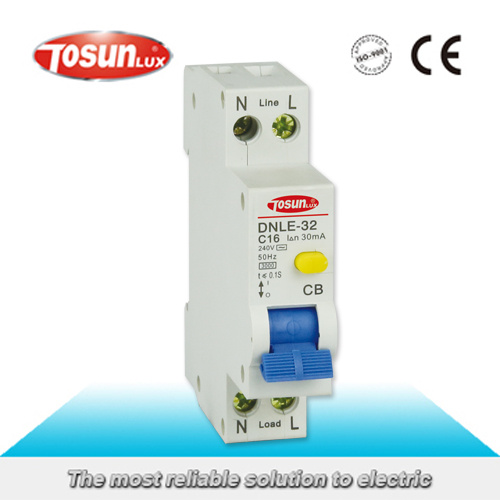

Earth Leakage Circuit Breaker with Over Current Protection

Name: Earth Leakage Circuit Breaker with Over Current Protection
Brand: all-electronics-online.com
SKU: 752471135
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	US $ 4-5.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DNLE-32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage (V):	230
Rated Frequency:	50/60Hz
Rated Current (a):	6, 10, 16, 20, 25, 32
Rated Residual Operating Current (Ma):	10, 30, 100
Rated Non Operating (IΔn) (Ma):	5, 15, 50
Rated Short-Circuit Making-Breaking Capa:	3000A
Rated Residual Making-Breaking Capacity:	500A
Packing:	6 PCS Per Box
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	ELCB
Poles Number:	1
Certification:	CE

Product Description

Specification

Number of Poles		1P+N
Rated Voltage (V)		230
Rated Current (A)		6, 10, 16, 20, 25, 32
Rated Operating Current In (mA)		30, 100, 300
Rated Residual Non-operation Current (In)(mA)		5, 15, 50
Max. Breaking Time(s)	IΔn	0.1
	2 IΔn	0.05
	0.25A	0.04
	500A	0.04
Rated short-circuit making-breaking capacity (A)		3000
Rated residual making-breaking capacity (A)		500
