| Prod Model: |
TSM2-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current(a): |
(10),16,20,25,32,40,50,63,80,100 |
| Number Of Poles: |
2,3,4 |
| Rated Insulating Voltage(V): |
800 |
| Rated Working Voltage: |
AC400V |
| Arcing Distance: |
50,100mm |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Poles Number: |
3 |
| Certification: |
CE |
| Function: |
Overload and Under Voltage Protection |
Product Description

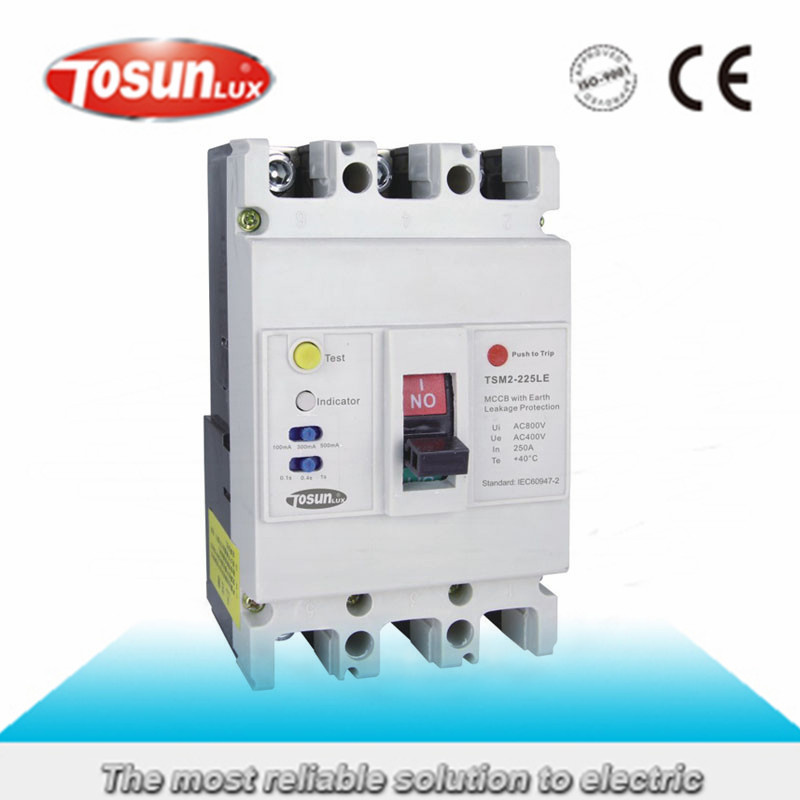

TSM2-E Moulded Case Circuit Breaker with Earth Leakage Protection MCCBApplication
TSM2 series Moulded Case Circuit Breaker is new type product developed and produced by adopting international advanced technology.
It is supplied with rated insulation voltage 800V and used for circuit of AC 50Hz, rated operating voltage AC400V or below rated operating current up to 800A for infrequent changing over and starting of the motors.
Equipped with the protection devices for over-current, short circuit and under voltage.
It is capable of preventing damage of circuits and supply units.
The product conforms to IEC60947-2 standard.
Specification | Model | Rated
Current(A) | Number
of
poles | Rated
Insulating
Voltage | Rated
Working
Voltage | Arcing
Distance(mm) | Ultimate
short
Circuit
breaking
Capacity(KA) | Service
Short
Circuit
Breaking
Capacity(KA) | Operation
Performance |
| On | OFF |
| TSM2-100LE | (10),16,20,25,32,
40,50,63,80,100 | 2,3,4 | 800 | AC400V | 50 | 35 | 22 | 1500 | 8500 |
| TSM2-100ME | 50 | 35 | - | - |
| TSM2-101HE | 85 | 50 | - | - |
| TSM2-225LE | 100,125,140,160,
180,200,2225 | 2,3,4 | 35 | 22 | 1000 | 7000 |
| TSM2-225ME | 50 | 35 | - | - |
| TSM2-225HE | 85 | 50 | - | - |
| TSM2-400LE | 225,250,315,
350,400 | 3,4 | 100 | 50 | 35 | 1000 | 4000 |
| TSM2-400ME | 65 | 42 | - | - |
| TSM2-400HE | 1000 | 65 | | - |
| TSM2-630LE | 400,500,630 | 3,4 | 50 | 35 | 1000 | 4000 |
| TSM2-630ME | 65 | 42 | | |
| TSM2-630HE | 100 | 65 | | |
Why us?1. We have extensive experience in low tension electric items and illumination products. We have been dealing the line for more than 24 years.
2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².
4. Our group of professional inspectors supervising the quality for your every order. Our products have obtained TUV, SEMKO, CE, CB, and ROHS certificates.
5. We have particular designers in charge of packing.
6. We have experienced salesmen to handle business for you specially. About us1. More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products.
2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².
3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.
4. Favorable service. We have experienced salesmen to handle business for you specially.
5. Attractive packing. We have particular designers in charge of packing material in a unique style.
Our Producing Line

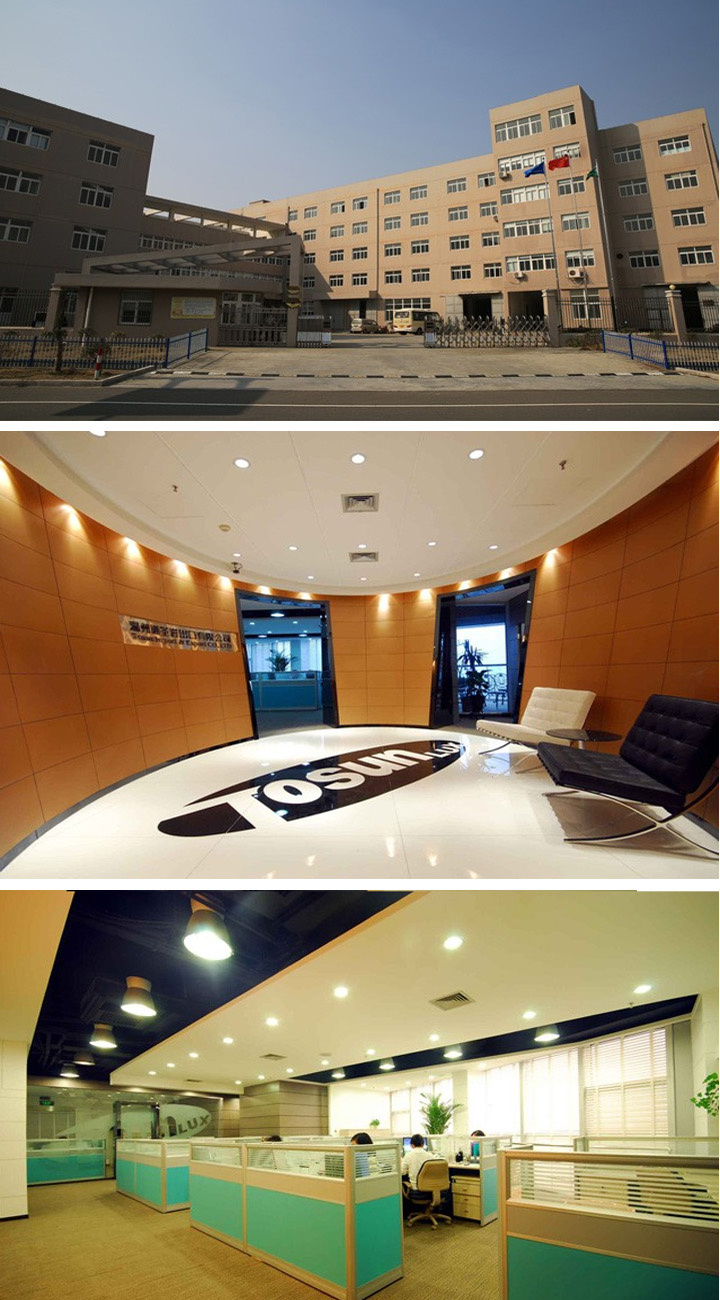

Our office
We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.
· Qualifications and Technological Strength
We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.
· Contact Us Today
We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.
Let's get busy and pull together to create a better future.
