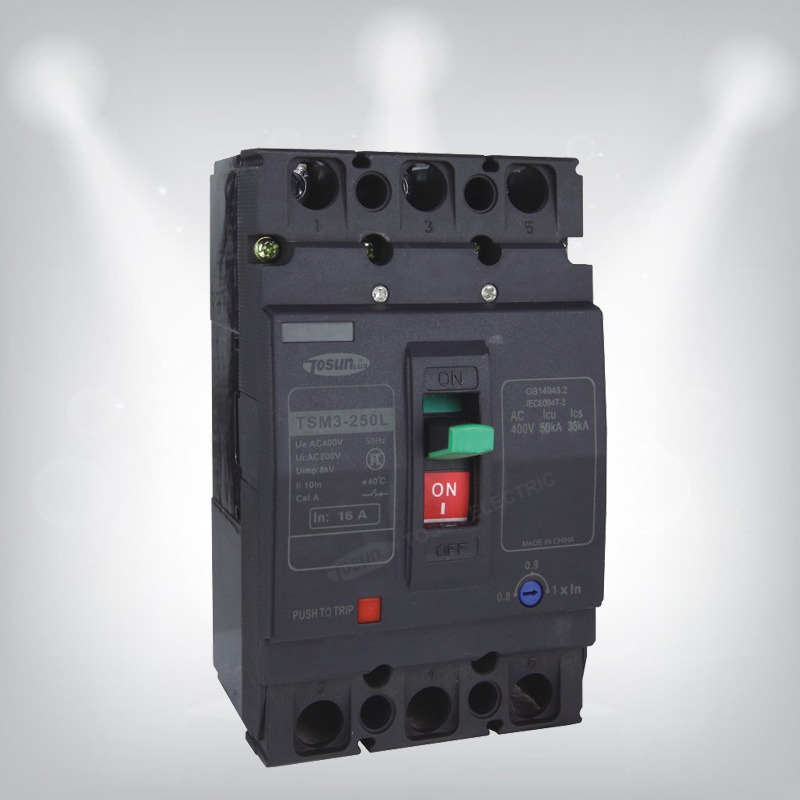

Overload, Short Circuit, Under Voltage Protective Moulded Circuit Breaker

Name: Overload, Short Circuit, Under Voltage Protective Moulded Circuit Breaker
Brand: all-electronics-online.com
SKU: 824902785
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 15-190/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSM3
Number Of Poles:	3 or 4
Rated Voltage:	up to AC 690V
Rated Current:	10-800A
Over Load Alarm Funtion:	with
Over Load Protection:	with
Under Voltage Protection:	with
Short Circuit Protection:	with
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CE

Product Description

Introduction

Application: 50/60Hz AC circuit, rated working voltage up to AC 690V, rated working current up to 800A.

Function: over load alarm, overload protection, under voltage protection, short circuit protection.

Dtandard: IEC60947-2.

Specification

Model	Rated current (A)	Number of Poles	Rated Insulating Voltage	Rated Working Voltage	Arcing Distance (mm)	Ultimate Short Circuit Breaker Capacity(KA)		Service Short Circuit Breaking Capacity (KA)
Model	Rated current (A)	Number of Poles	Rated Insulating Voltage	Rated Working Voltage	Arcing Distance (mm)	AC690V	AC400V	AC690V	AC400V
TSM3-100L	(10),16,20,25,32,40, 50,63,80,100,125	3,4	800V	400,690	50	-	50	-	35
TSM3-100M						20	70	10	50
TSM3-100H						-	100	-	70
TSM3-225L	100,125,140,160, 180,200,225					-	50	-	35
TSM3-225M						20	70	10	50
TSM3-225H						-	100	-	70
TSM3-400L	225,250,315,350,400				100	20	70	15	70
TSM3-400M	225,250,315,350,400					-	100	-	75
TSM3-630M	400,500,630					20	70	15	70
TSM3-630H	400,500,630					-	100	-	75
TSM3-800M	630,700,800					20	75	20	75
TSM3-800H	630,700,800					-	100	-	75

The N-pole of four-poles breaker is sited at the right side of the product has four types
Type A: Without current trip-release on N pole which making all the time, not closing and opening with the other three poles.
Type B: Without current trip-release on N pole which closing and opening with the other poles.
Type C: With current trip-release whch closing and opening with the other three poles.
Type D: With current trip-release which making all the time not closing and opening with the other three poles.
