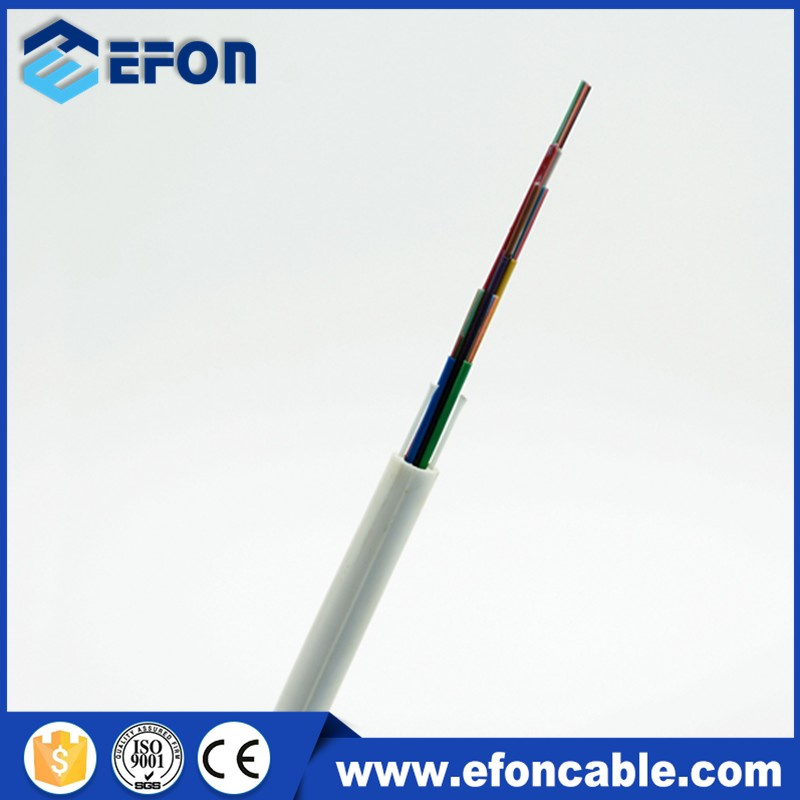

Easy Access 12core Fiber Optic Cable with G657A2 A1 Fiber

Name: Easy Access 12core Fiber Optic Cable with G657A2 A1 Fiber
Brand: all-electronics-online.com
SKU: 771114765
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	US $ 0.47-0.6/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJYFJBH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G.652D or G.657
Outer Sheath:	UV and Flame Resistant LSZH
Fiber Count:	1-48
Jacket Color:	White or Black
Tensile Strength:	200n
Crush Resistance:	1000n
Strength Member:	FRP
Applications:	Indoor Outdoor Access Cabling
Certifications:	ISO9001/Ce/RoHS
Warranty (Year):	2
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-24
Brand:	Efon
Sheath Material:	Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent

Product Description

Description
GJYFJBH Indoor Multi Fiber Easy Access cable, used in access network or as access cable from outdoor to indoor in customer premises network. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

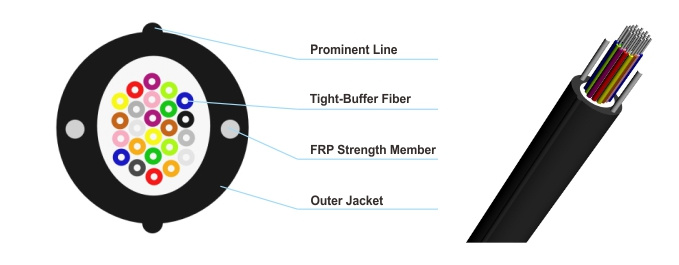

Cable Structure

Features:

Fiber:
1-48 fibers
Tight-buffered fiber.

Strength Member:
Embedded Fiberglass reinforced plastic (FRP)

Outer Jacket:
UV and flame resistant LSZH

Features:

Good mechanical and environmental characteristics, convenient for achieving the branch optical line in cabling.
Flame retardant characteristics meet the requirements of relevant standards.
Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Meet various requirements of market and clients.

Applications:

Used in access network or as access cable from outdoor to indoor in customer premises network.

Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

Optical Characteristics:

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Specifications:

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Allowable Tensile Load (N/100mm)		Allowable Crush Resistance (N/100mm)
Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
12	8.5	62	200	100	1000	300
24	10.5	80	200	100	1000	300
36	11.5	90	200	100	1000	300
48	12.5	100	200	100	1000	300
