| Prod Model: |
rod |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gray |
| Power Source: |
Electric |
| Model Number: |
Rod Heating Element |
| Brand Name: |
Shibo |
| Dimension(L*W*H): |
1800X20X20mm |
| Weight: |
3kgs |
| Voltage: |
220V |
| Power(W): |
5kw |
| Application: |
Heater |
| Structure Material: |
Ceramic |
Product Description
Product Description1.high temperature sic heating element
2.up to 1600 celsius

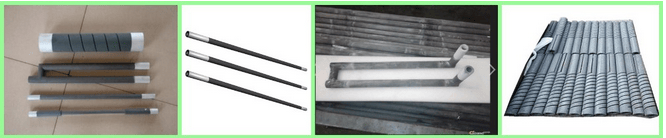

3.rod,u,w,h,gun,spiral,dumbbell,door type
4.accurate resistance
5.ISO

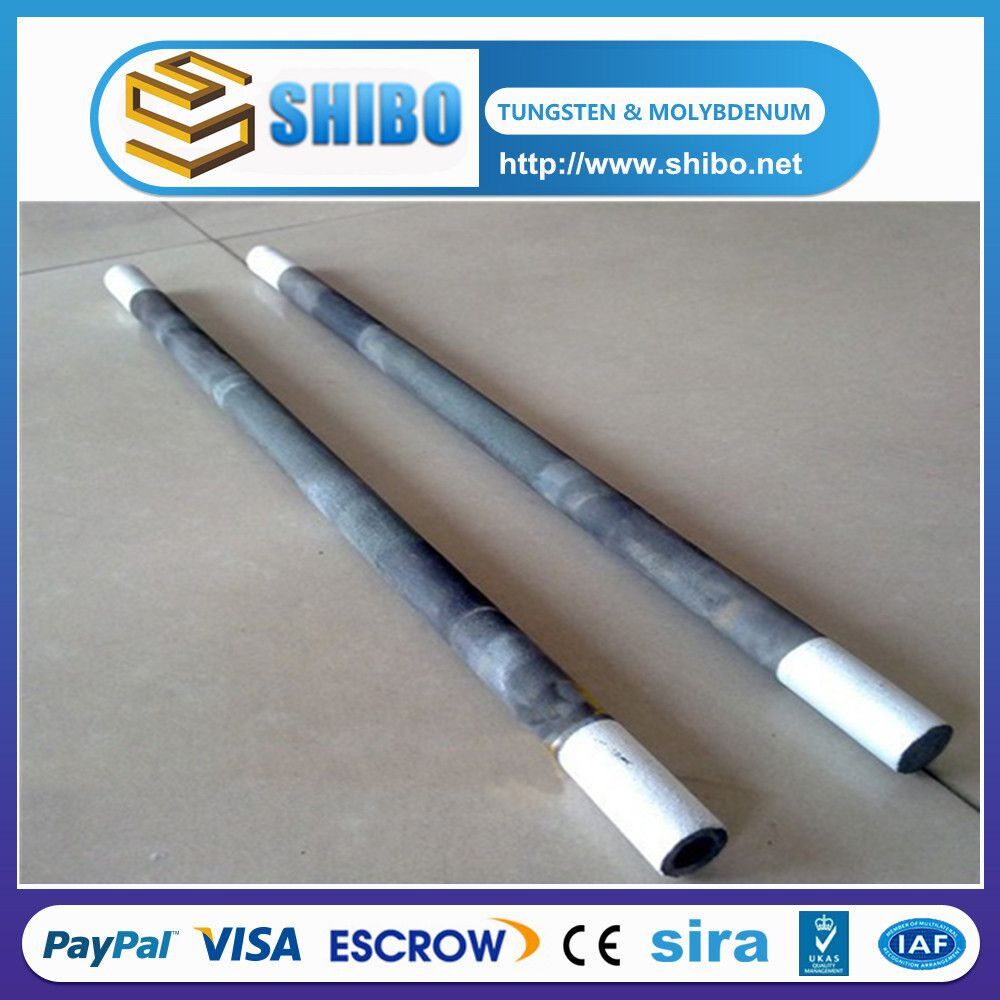

The silicon carbide heating element is a kind of non-metal high temperature electric heating element.
It is made of selected super quality green silicon carbide as main material, which is made into blank, silicided under high temperature and re-crystallized.
Compared with metal electric heating element, this kind of element is characterized by high-applied temperature, anti-oxidization, anti-corrosion, long service lige, little deformation, easy installation and maintenance.
Tensile strength | >150kg/cm3 |
Porosity rate | <30% | Radiancy | 0.85 |
Technical parameter of rod type silicon carbide heating element
Diameter (OD, mm) | Hot zone (HZ, mm) | cold zone (CZ, mm) | Overall length (OL, mm) | Range of resistance (ohms) |
12 | 150-300 | 150-200 | 450-700 | 1.85-3.15 |
14 | 200-400 | 200-250 | 600-900 | 1.22-2.40 |
16 | 300-600 | 250-350 | 800-1100 | 1.60-3.00 |
20 | 300-900 | 300-400 | 1100-1500 | 1.14-3.10 |
25 | 300-1000 | 300-450 | 900-1600 | 0.75-2.40 |
30 | 400-1100 | 300-500 | 1000-1800 | 0.70-1.82 |
31.7 | 356-1499 | 280-406 | 916-2261 | 0.5-2.25 |
35 | 40-1700 | 300-400 | 1200-2300 | 0.68-2.89 |
38.1 | 406-1422 | 280-394 | 966-2210 | 0.4.-1.36 |
40 | 500-1700 | 300-400 | 1300-2300 | 0.60-2.02 |
44.4 | 508-2437 | 280-432 | 1068-3277 | 0.36-1.66 |
50 | 1000-2000 | 400 | 1800-2800 | 0.73-1.46 |
54 | 508-2438 | 305-458 | 862-3278 | 0.30-1.40 |
Silicon Carbide rod SiC heating element is made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments.
Silicon Carbide rod features:
1. Withstands as high as 1600° C (surface temperature),
2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire,
3. High strength and excellent shock resistance,
4. Heat source is free of noise and air pollution.
When you place an order of Silicon Carbide rod Heating Element, please give following information:
OD: Outer Diameter;
Hz: Length Of Hot Zone;
CZ: Length Of Cold Zone;
OL: Total Length
Order Sample of the Silicon Carbide rod
ED(Rod)Shape: OD=54mm, Hz=1575mm, CZ=419mm OL=2413mm, Resistance: 0.9
Please Specify As: 54/1575/2413/0.90
Packaging & Delivery
Packaging: Plastic paper inside, Polyfoam filled, Wooden box outside.
Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.
Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.

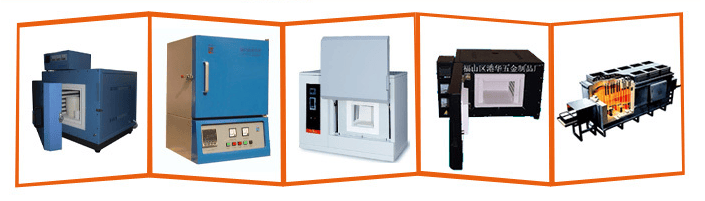

Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.
