| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
0.4~ 1.5kw |
| Voltage Range: |
220V: 170~240V |
| Certification: |
CE, ISO9000 |
| Control Method: |
V/F Control, Space Vector Control. |
| Frequency Range: |
0.10~400.00Hz |
| Pid Control: |
Built-in Pid Control |
| RS485: |
Standard RS485 Communication(Modbus) |
| IP: |
20 |
| Packaging Details: |
Standard Exporting Package |
| Special: |
DIN Rail Mounted |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
Product Description
Glad to tell you that we will attend the 11th International Automation Exhibition & conference.
Place: Mumbai
Time: 22nd, Aug. to 25th, Aug.
Booth No.: Exhibition Hall B20
Welcome to visit us.
1. Quick Details.
Place of Origin: Fujian, China (Mainland)
Brand Name: Machtric
Model Number: S800E
Output Power: 0.4kw-1.5kw
Output Type: Triple
Size: super mini, Super mini
Input Voltage: 220V
Output Voltage: 220V
Type: AC-DC-AC
Output Frequency: 0-400Hz
Specification: easy operate and din rail
Control mode: V/F control
Color: Grey
Web: www.machtric.com
2. Introduction.

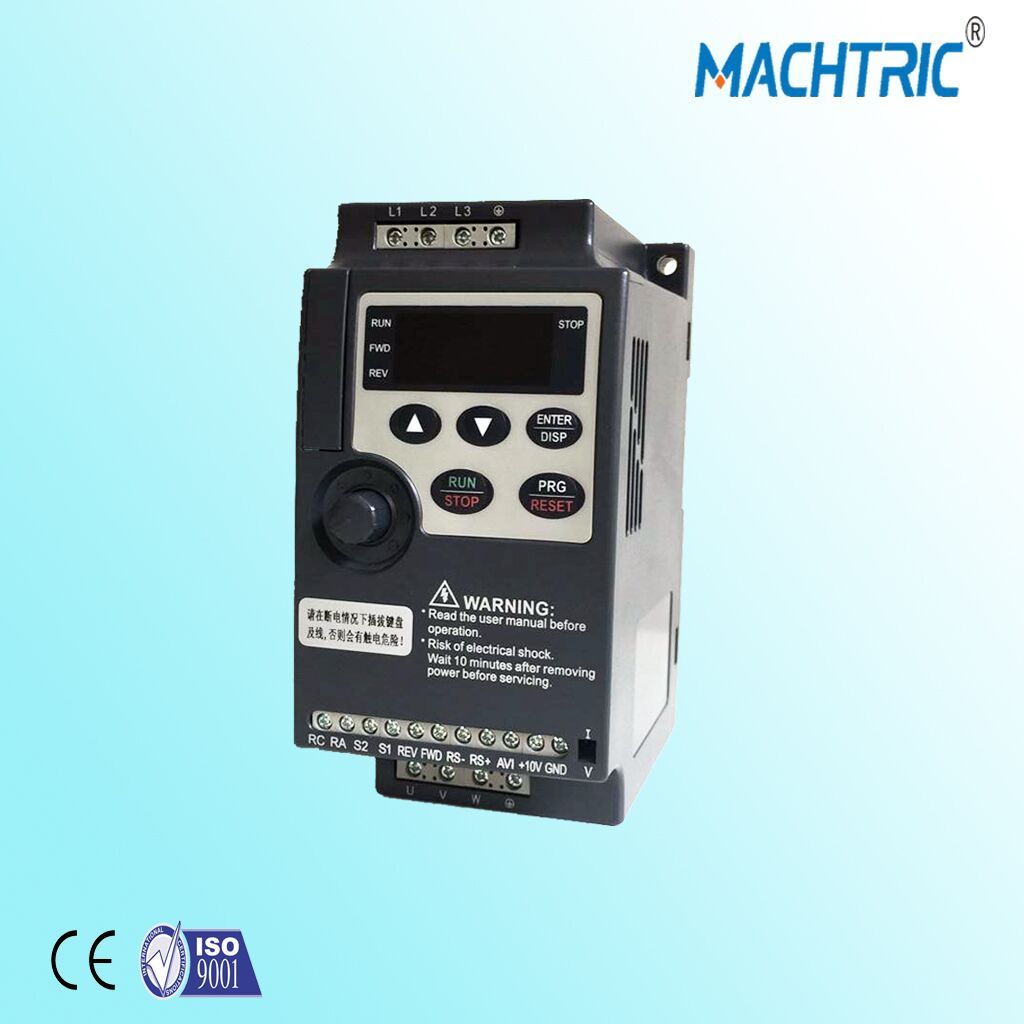

Easy operate high efficient cheap din rail mounted variable frequency inverter
The cheapest frequency inverter of us, is the din rail mounted frequency inverter.
It is easy operate and high efficient;
This series with a din rail mounted function, and also can be wall mounted.
IT WAS A SUPER MINI SIZE, THE PRICE ARE VERY LOVELY AND COMPETITIVE
Apply in conveyor, simple wood cutting machine... ect.
3. Product Specifications
Items | S800E |
Power
Supply | Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range |
220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control Specialations | Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions
| PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
4. Model for choosen
| Applicable Inverter Type | Input voltage | Motor Output
(KW) | Main Circuit Cable Type
(mm2) | Breaker
Selection
(A) | Input Side
Magnetic
Contractor (A) |
| S800-2T0.4GE | 220V | 0.4 | 0.75 | 10 | 9 |
| S800-2T0.75GE | 220V | 0.75 | 0.75 | 16 | 12 |
| S800-2T1.5GE | 220V | 1.5 | 1.5 | 25 | 18 |
5. FAQ
Q: What is your payment ?
A: Our payment is by T/T. Western Union. L/C and Money.
Q: Is there a discount on the price of your product?
A: It depends the quantity of order.
Q:Is same quality between the sample and big order?
A:Our products are always as good as the samples we send, I can promise there will be no debasement of quality.
Q:Is the price for FOB?
A:Yes.
Q: How much is your minimum order quantity?
A: one pcs or unit.
Q: How do we send goods to customer?
Shipping by Express: DHL, TNT, UPS, Fedex, by Sea and by Air; Or customer forwarder are accepted.
