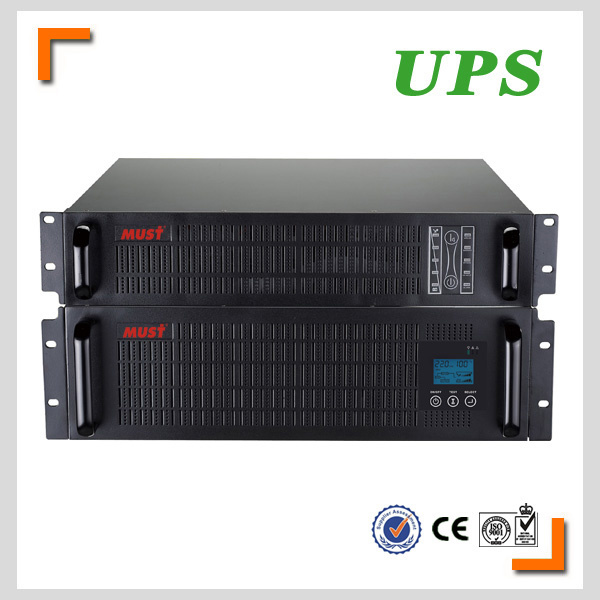

Eh5110 Uninterruptible Power Supply Rack Online UPS
| Price: |
US $ 99/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
EH5110 |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Item: |
Rack Online UPS |
| AC-Mode To Battery-Mode: |
Zero Transfer Time |
| Output Voltage: |
110-300V or 120-276V, 208/220/230/240VAC |
| Battery Charge Control: |
Fast Charge at Constant Voltage |
| Wave Form: |
Pure Sine Wave |
| Weight: |
8-41kg, Depends on Different Models |
| Color: |
Black |
| Power: |
1kVA, 2kVA, 3kVA |
| Wide Frequency: |
40 - 70Hz |
| Communication Interface: |
RS232 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Must/OEM |
Product Description
EH5110 uninterruptible power supply Rack Online Ups
1, wide input 160-300V
2, O transfer time
3, 1000va to 20kVA
4, LED or LCD display
5, tower or rack outlook
1. Smart RS232
2. ZERO transfer time
3. Intelligent slot available
4. Maintenance free battery
5. The best After-Sales Service
| Model | EH1KR | EH1KRS | EH2KR | EH2KRS | EH3KR | EH3KRS | EH6KR | EH6KRS |
| CAPACITY | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | 6000VA/4200W |
| INPUT |
| Phase | Single Phase with Ground |
| Frequency Range | 50Hz:46~54Hz |
| Power Factor | >=0.97 | >=0.98 |
| Voltage Range | Base on load percentage (100%-80% / 80%-70% / 70%-60% / 60%-0%) |
| Line Low Transfer | 160VAC/140VAC/120VAC/110VAC± 5VAC | 176 ±3% VAC |
| Line Low Comeback | 175VAC ± 5VAC | 185 ± 3% VAC |
| Line High Transfer | 300VAC± 5VAC | 276 ± 3% VAC |
| Line High Comeback | 285VAC± 5VAC | 266 ± 3% VAC |
| OUTPUT |
| Phase | Single |
| Voltage | 220VAC/230VAC/240VAC |
| Voltage Regulation | ± 2% | ± 1% |
| Frequency( Synchronized Range) | 46~54Hz |
| Frequency( Battery Mode) | 50 ± 0.2 Hz | 50Hz ± 0.05Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 4% THD ( Linear Load) / <= 7% THD ( Non-Linear Load) | <= 2% THD (Linear Load)/<= 6%THD(Non-Linear Load) |
|
| Output Waveform | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 85% | 85% | 85% | > 88% |
| To Battery Mode | 83% | 83% | 83% | > 88% |
| BATTERY |
| Battery Type | 12V/7Ah | Depending on the capacity of external batteries | 12V/7Ah | Depending on the capacity of external batteries | 12V/7Ah | Depending on the capacity of external batteries | 12V/7AH | Depending on the capacity of external batteries |
| Numbers of Batteries | 3 | 8 | 8 | 20 |
| Backup Time(Full Load) | >5 minutes | >9 minutes | >5 minutes | 8 minutes |
|
| Recharge Time | 5 hours to 90% | 5 hours to 90% | 5 hours to 90% | 7 hours to 90% |
| Charging Current (Max.) | 1.0A | 7A | 1.0A | 8A+/-1A | 1.0A | 8A+/-1A | 2.0A | 4.2A |
| Charging Voltage | 41.1Vdc ± 0.6V | 110Vdc ± 0.4V | 274Vdc ± 1%V |
| External Battery type | N/A | 12V/7.2AH *6 | N/A | 12V/7.2AH *8 | N/A | 12V/7.2AH *8 | N/A | 12V/7.2AH *20 |
| TRANSFER TIME |
| AC to DC | Zero |
| Inverter to Bypass | 2.5ms (Typical ) | Zero |
| INDICATOR |
| Status | Load Level / Battery Level / Battery Mode / AC Mode / Bypass Mode / Fault |
| AUDIBLE ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously Sounding |
| DIMENSION |
| UPS CaseD x W H(mm) | 450x482.6x88 | 450x482.6x88 | 600x482.6x130 |
| Battery Case D x W x H | N/A | 450*482.6*88 | 450*482.6*88 | 600*482.6*130 |
| WEIGHT |
| UPS Case (kgs) | 14(w / battery) | 7 | 34.5(w / Battery) | 15 | 35.5(W / Battery) | 16 | 84(W / Battery) | 35 |
| Battery Rack (kgs) | N/A | 22.5 | 27.8 | 27.8 | 64.2 |
| ENVIRONMENT |
| Operating Environment | 0~40 Degrees Centigrade, 20~90% relative humidity (non-condensing) |
| Noise Level | <45dB @ 1 Meter | 50dB @ 1 Meter | <55dB @ 1 meter |
| INTERFACE |
| Smart RS-232 | Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
| SNMP (option) | Power management from SNMP manager and web browser |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
